Horizontal machining center

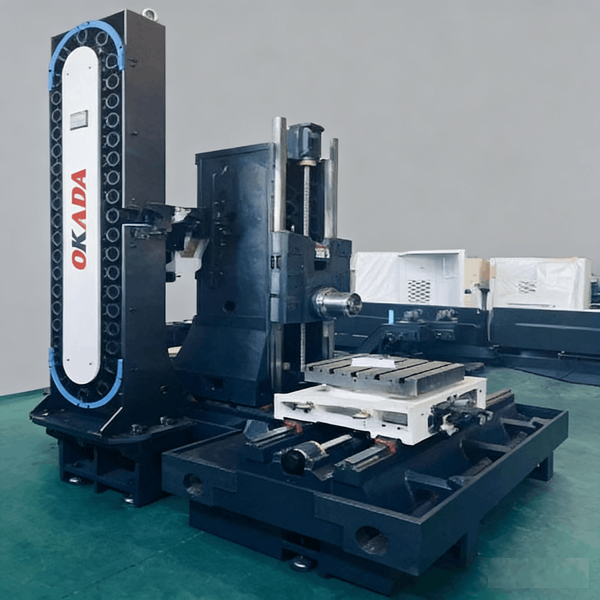

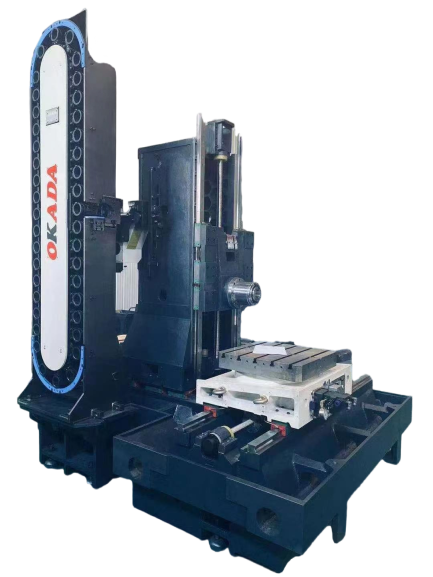

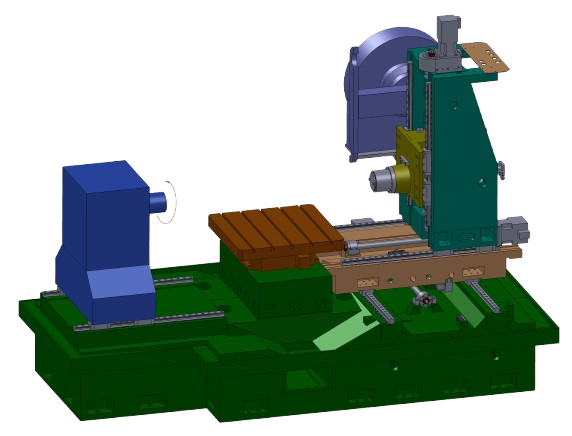

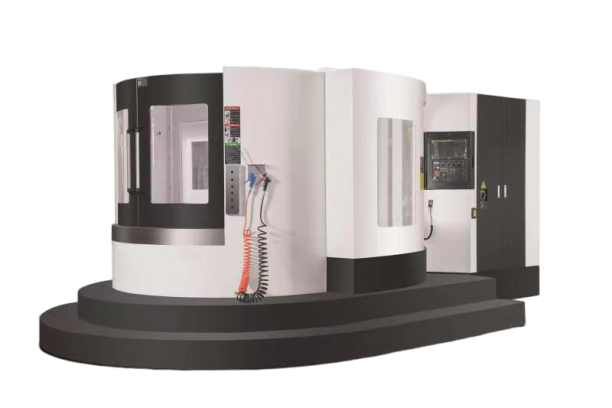

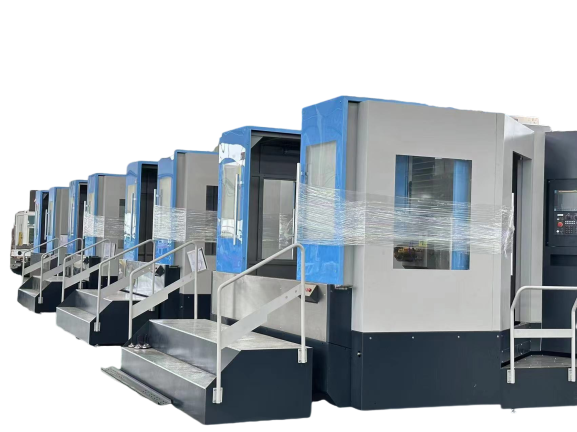

Horizontal Machining Center (Inverted Trapezoidal Structure)

The horizontal machining center is suitable for high-precision and high-efficiency multi-process machining such as milling, drilling, boring, reaming, tapping, 2D and 3D curved surfaces on multiple working faces of box-type parts. It is an ideal processing equipment for automobile manufacturing, engineering machinery, aerospace, electronic industry, ordnance industry and other sectors.

Technical Parameters of Horizontal Machining Center (Inverted T-type)

Item	Model	Unit	HT500	HT630	HT800	HT1000	HT1250
Machining Range	X/Y/Z Axis Travel	mm	800/600/600	1100/950/1100	1300/900/950	1700/1100/1100	2000/1300/1300
	Spindle Center to Table Surface	mm	40～640	-15～935	-30～870	-20～1080	-20～1280
	Spindle Nose to Table Center	mm	185～785	70～1170	150～1100	120～1220	120～1170
Worktable	Worktable Area	mm	500×500	630×630	800×800	1000×1000	1250×1250
	T-slot (Qty×Width×Pitch)	mm	5×18×100	5×18×100	7×18×100	7×18×120	5×22×200
	Min. Indexing Angle of Worktable		0.001°/1°	0.001°/1°	0.001°/1°	0.001°/1°	0.001°/1°
	Uniform Load Capacity of Worktable	kg	800	1800	2500	6000	6000
	Max. Swing Diameter	mm	1000	1500	1800	1800	2000
Spindle	Max. Spindle Speed	RPM	6000	6000	6000	6000	6000
	Spindle Taper	BT	BT40	BT50	BT50	BT50	BT50
	Max. Spindle Cutting Torque	Nm	72	236	1298	1298	1298
	Spindle Motor Power	kw	11/15	15/18.5	15/18.5	15/18.5	15/18.5
Speed	Rapid Traverse Speed of 3 Axes	m/min	24/24/24	24/24/24	24/24/24	24/24/24	24/24/24
Tool Magazine	Type of Tool Magazine		Arm-type	Arm-type	Arm-type	Arm-type	Arm-type
Tool Magazine	Capacity of Tool Magazine		24 (30/40)	30 (40/60)	30 (40/60)	30 (40/60)	30 (40/60)
Machine Tool	X/Y/Z Positioning Accuracy	mm	VDI 0.008	VDI 0.008	VDI 0.008	VDI 0.008	VDI 0.008
	X/Y/Z Repeat Positioning Accuracy	mm	VDI 0.005	VDI 0.005	VDI 0.005	VDI 0.005	VDI 0.005
	Indexing Accuracy of Turret (1°/0.001°)	sec	±3"/±4"	±3"/±4"	±3"/±4"	±3"/±4"	±3"/±4"
	Repeat Indexing Accuracy of Turret	"	±1"/±3"	±1"/±3"	±1"/±3"	±1"/±3"	±1"/±3"
Others	Machine Tool Dimension (L×W)	mm	4.2×3	5.3×3.3	5.6×3.8	6.0×4.9	6.8×5.5
Others	Machine Tool Weight	T	9	11	13.6	19	25

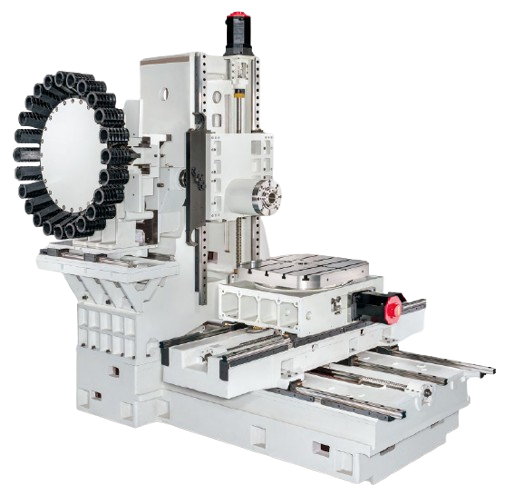

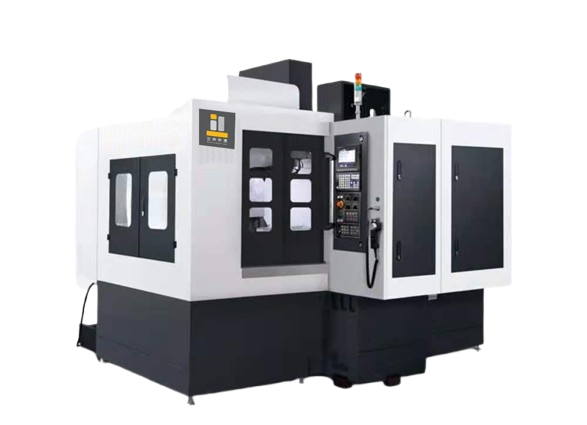

Horizontal Machining Center (Cross Slide Structure)

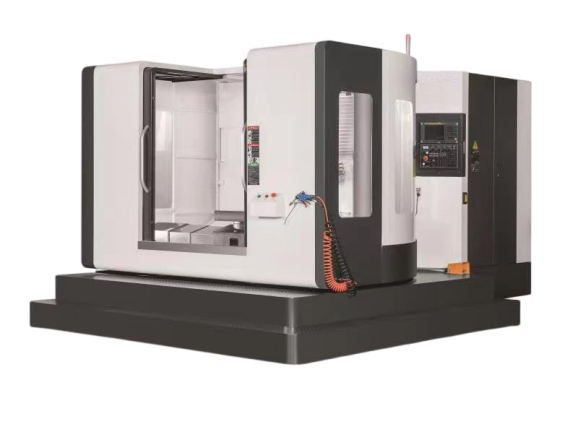

The horizontal machining center with cross slide structure is a cost-effective machine tool, suitable for high-precision and high-efficiency multi-process machining such as milling, drilling, boring, reaming, tapping, 2D and 3D curved surfaces on multiple working faces of box-type parts. It is an ideal processing equipment for automobile manufacturing, engineering machinery, aerospace, electronic industry, ordnance industry and other sectors.

Technical Parameters of Horizontal Machining Center (Cross Slide)

Item	Model	Unit	HMC400	HMC500	HMC630	HMC800
Machining Range	Worktable Left-Right Travel (X)	mm	650	1000	1300	1800
	Headstock Up-Down Travel (Y)	mm	450	650	700	1400
	Worktable Front-Back Travel (Z)	mm	400	600	700	900
	Spindle Nose to Table Center Distance	mm	100-550	80-680	210-910	278-1178
	Spindle Center to Table Surface Distance	mm	100-500	175-925	145-1045	145-1545
Worktable	Worktable Area	mm	500×500	630×630	800×800	1000×1000
	Uniform Load Capacity of Worktable	kg	800	1800	2500	6000
	Max. Swing Diameter	mm	1000	1500	1800	1800
Spindle	Spindle Motor	KW	FANUC 5.5/7.5 SIEMENS 7/9	FANUC 11/15 SIEMENS 9/12	FANUC 15/18.5 SIEMENS 12/15	FANUC 18.5/22 SIEMENS 17/20.5
	Max. Spindle Speed	rpm	8000/10000	6000/8000/10000	6000/8000/10000	6000/8000/10000
	Spindle Model/Installation Size	mm	BT40	BT40/BT50	BT40/BT50	BT40/BT50
Speed	Rapid Traverse Speed of 3 Axes	m/min	24/24/24	24/24/24	24/24/24	24/24/24
Speed	X,Y,Z 3-Axis Motor	Nm	8/8/8	20/20/20	30/30/36	30/30/36
Tool Magazine	Type of Tool Magazine		Arm-type	Arm-type	Arm-type	Arm-type
Tool Magazine	Capacity of Tool Magazine		24 (30/40)	30 (40/60)	30 (40/60)	30 (40/60)
Machine Tool Accuracy	Positioning Accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Machine Tool Accuracy	Repeat Positioning Accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Others	Machine Tool Weight	kg	4200	7500	10500	15500
Others	Machine Tool Dimension (L×W)	mm	2300×1850	3200×3000	4000×3500	4800×4000

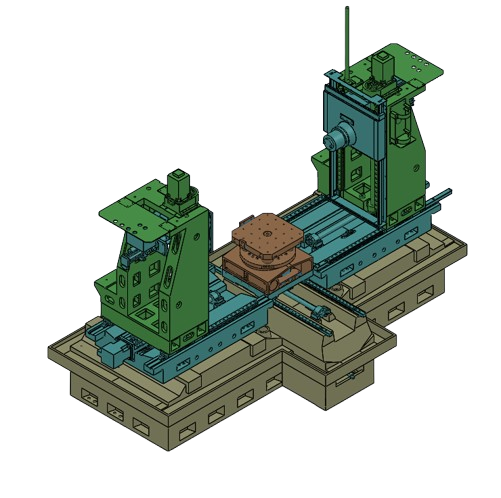

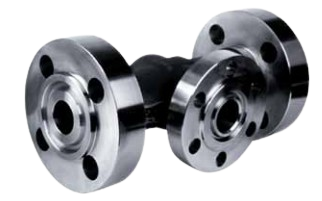

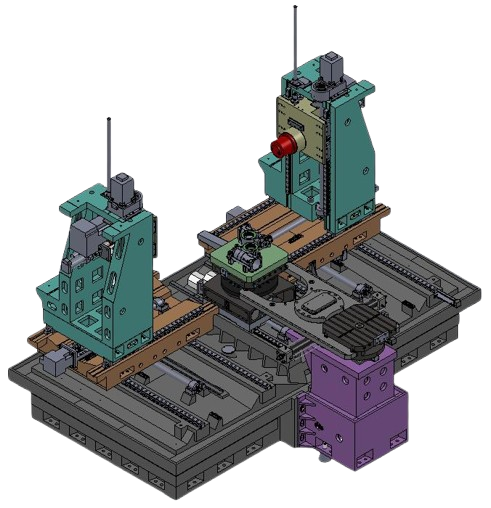

Double Spindle Horizontal Boring, Milling & Drilling Special Machine for Valves & Boxes (For Gate Valve, Butterfly Valve, Globe Valve, Regulating Valve)

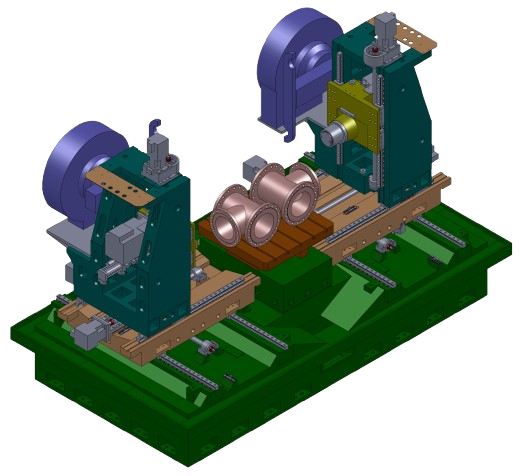

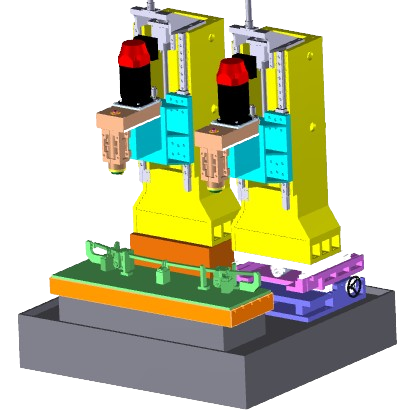

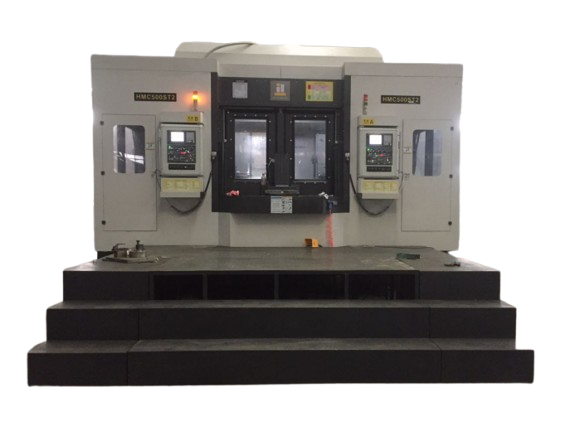

This machine tool is a combined machine tool of two horizontal machining centers. The two spindles can simultaneously process drilling, tapping, spot facing, boring and inner bevel sealing surface of valve flange parts. The CNC turret can realize multi-face machining with one clamping.

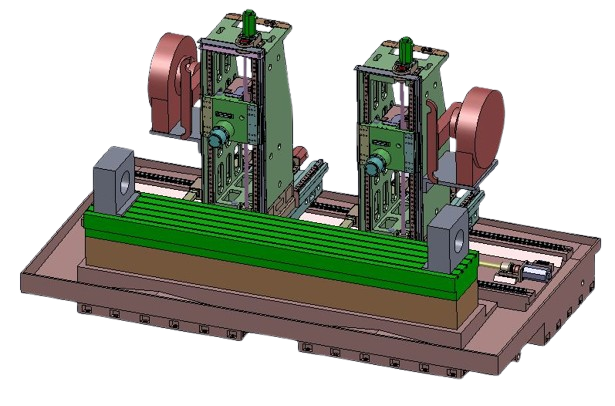

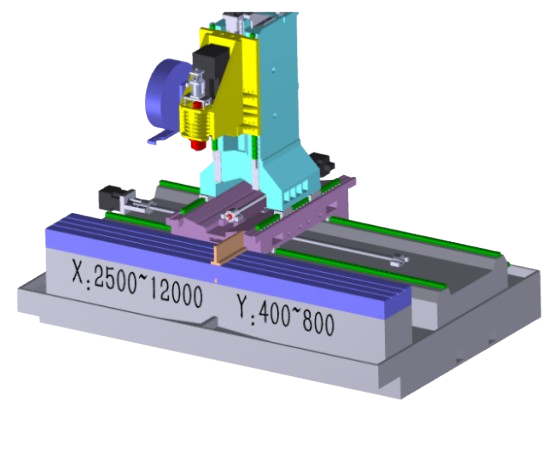

Moving Column Special Machine for Aluminum Profile & Plate Machining

Suitable for machining long and thin profile workpieces such as aluminum, copper and steel. Applied in aerospace, rail transit, TV frame, photovoltaic panel frame, automobile luggage rack, foot pedal, aluminum bumper, transplanter parts, curtain wall, aluminum doors and windows, aluminum furniture accessories and other industries.

Worktable Surface: (450～650) X (2500～8500) mm,

X Axis Travel (Left-Right): 2000～8000mm

Y Axis Travel (Front-Back): 400～600mm (Gantry 1200-1500),

Z Axis Travel (Up-Down): 400-600mm

Rapid Traverse Speed: X Axis: 60m/min Y/Z Axis: 30m/min

Spindle: BT30/BT40/BT50 Spindle, Spindle Speed 18000/15000/12000/10000/8000rpm

Tool Magazine: 16-position umbrella type tool magazine, 24-position robot arm type tool magazine

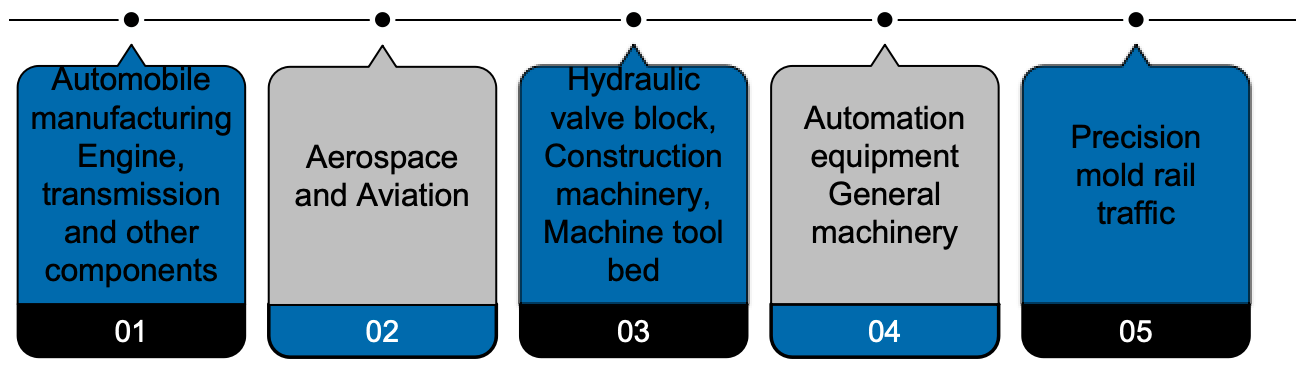

Application Fields

Applicable Workpieces: Box, Cylinder Block, Valve Body, Pump Body, Reducer Housing

Machined Products

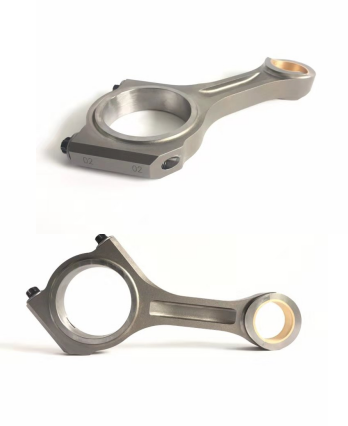

Aerospace Structural Parts	Aerospace Optical Platform	Automobile Titanium Alloy Lower Arm	Fluid Velocity Measuring Pump Body	Automobile Titanium Alloy Connecting Rod

Aluminum Alloy Valve Body of Rotary Valve	Radius Bone Plate	New Energy Vehicle Motor	Automobile Housing	Automobile Auxiliary Bracket

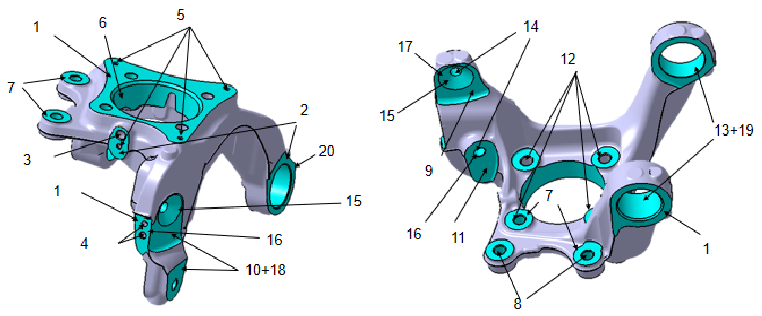

Automobile Aluminum Wheel Hub	Casing	Automobile Steering Knuckle
