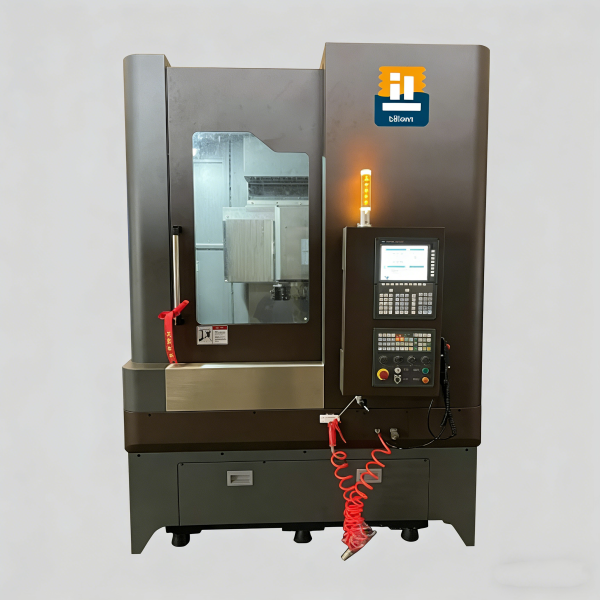

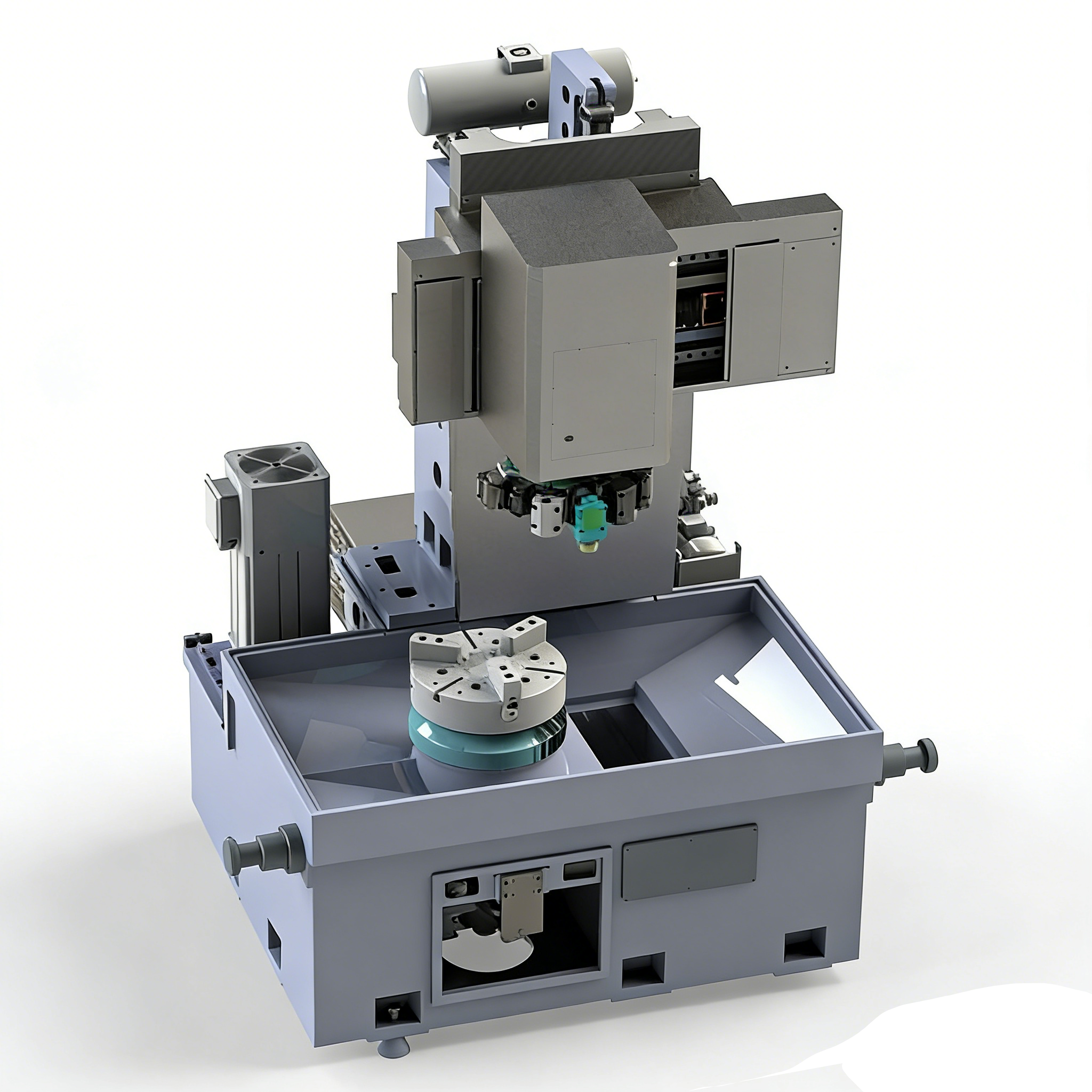

Vertical lathes/turning centers VL25/VL35

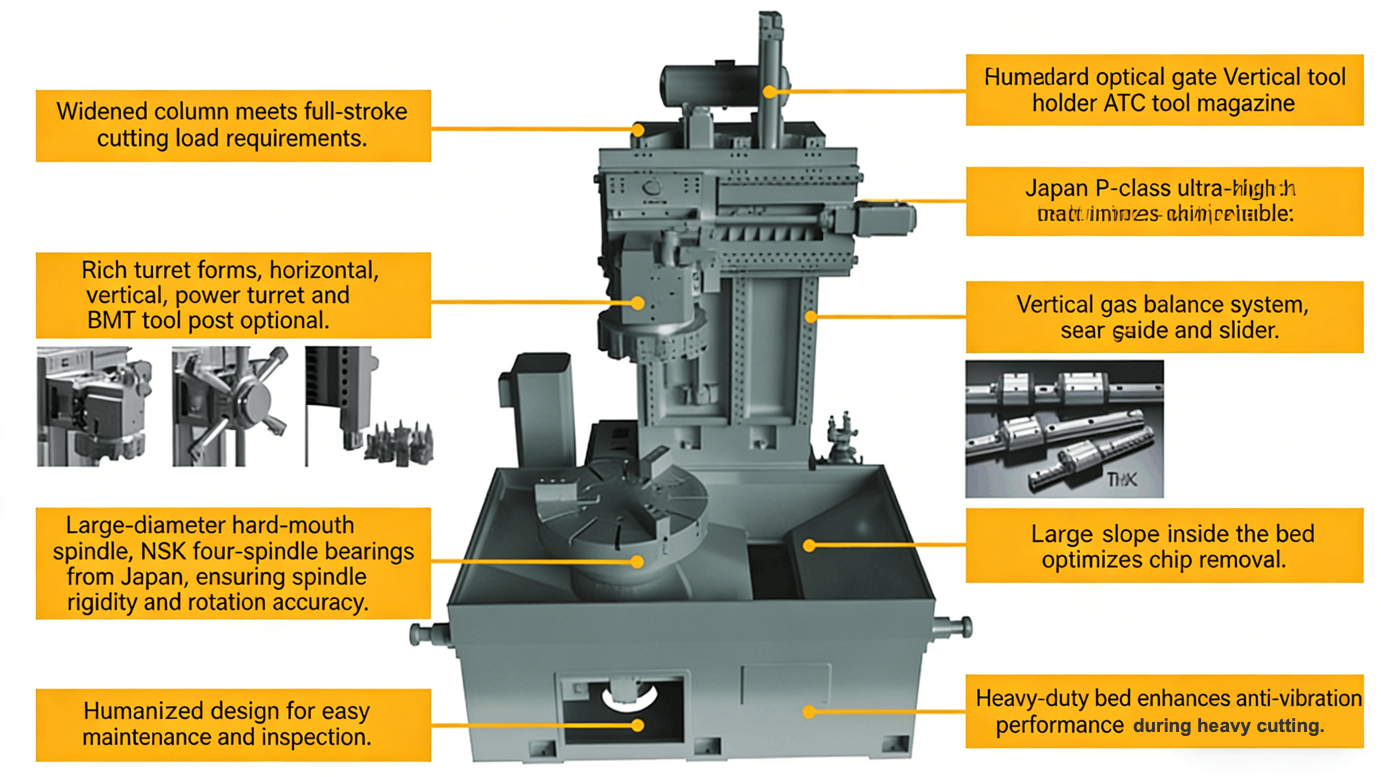

Product Features

Process large, thin, heavy, and irregular-shaped workpieces with easy loading and unloading;
Workpiece weight ensures firm clamping, delivering high-precision and stable machining results with short and consistent setup time;
No oval machining caused by gravity and inertia as in horizontal lathes, ensuring excellent roundness;
Stable machining for difficult-to-clamp irregular workpieces; simple fixture structure with low manufacturing cost.
Near-square high-rigidity design minimizes thermal displacement and vibration; increased chip removal angle with stainless steel structure for smooth chip flow and reduced thermal deformation;
Ergonomic vertical assembly line for convenient workpiece handling
Occupies 1/2 less space than horizontal lathes;
Multi-functional configuration, user-friendly operation, and high return on investment.

Specifications

Item	Specification	Unit	VL25	VL35
Processing Capacity	3-Jaw Hydraulic Chuck	inch/mm	8/Ф 203	10/Ф 254
	Max Swing Diameter	mm	Ф 400	Ф 500
	Max Cutting Diameter	mm	Ф 250	Ф 350
	Max Cutting Height	mm	400	400
	Max Workpiece Weight	kg	200	200
Travel	X-axis Travel	mm	250	280
Travel	Z-axis Travel	mm	300	400
Spindle	Spindle Motor Power	kw	11/15	13/18
	Spindle Speed	-	2500	2500
	Max Spindle Torque (Belt Reduction)	Nm	286	352
	Spindle Nose	mm	A2-8	A2-8
	Spindle Diameter	mm	Ф 110	Ф 110
Rapid Traverse	X-axis Rapid Speed	m/min	20	20
Rapid Traverse	Z-axis Rapid Speed	m/min	18	18
Turret	Turret Type / Tool Stations	Pcs	A: Horizontal / 8-12 M: Live BMT Turret	A: Horizontal / 8-12 M: Live BMT Turret
Turret	Tool Shank Size	-	25×25 Φ32	25×25 Φ32
Control System	CNC Controller	-	FANUC 0i-TF Plus
	Spindle Servo Motor	Kw	11/15	13/18
	X-axis Servo Motor	Kw	1.8	1.8
	Z-axis Servo Motor	Kw	2.5	2.5
Others	Power Requirement	KVA	20	20
	Machine Dimensions (L×W×H)	m	1.4×2.5×2.4	1.4×2.8×2.4
	Net Weight	Kg	5000	6000
	Protection + Chip Conveyor	-	Full Enclosure + Chain Chip Conveyor
	Machine Accuracy	mm	Positioning: ±0.005 Repeatability: ±0.003

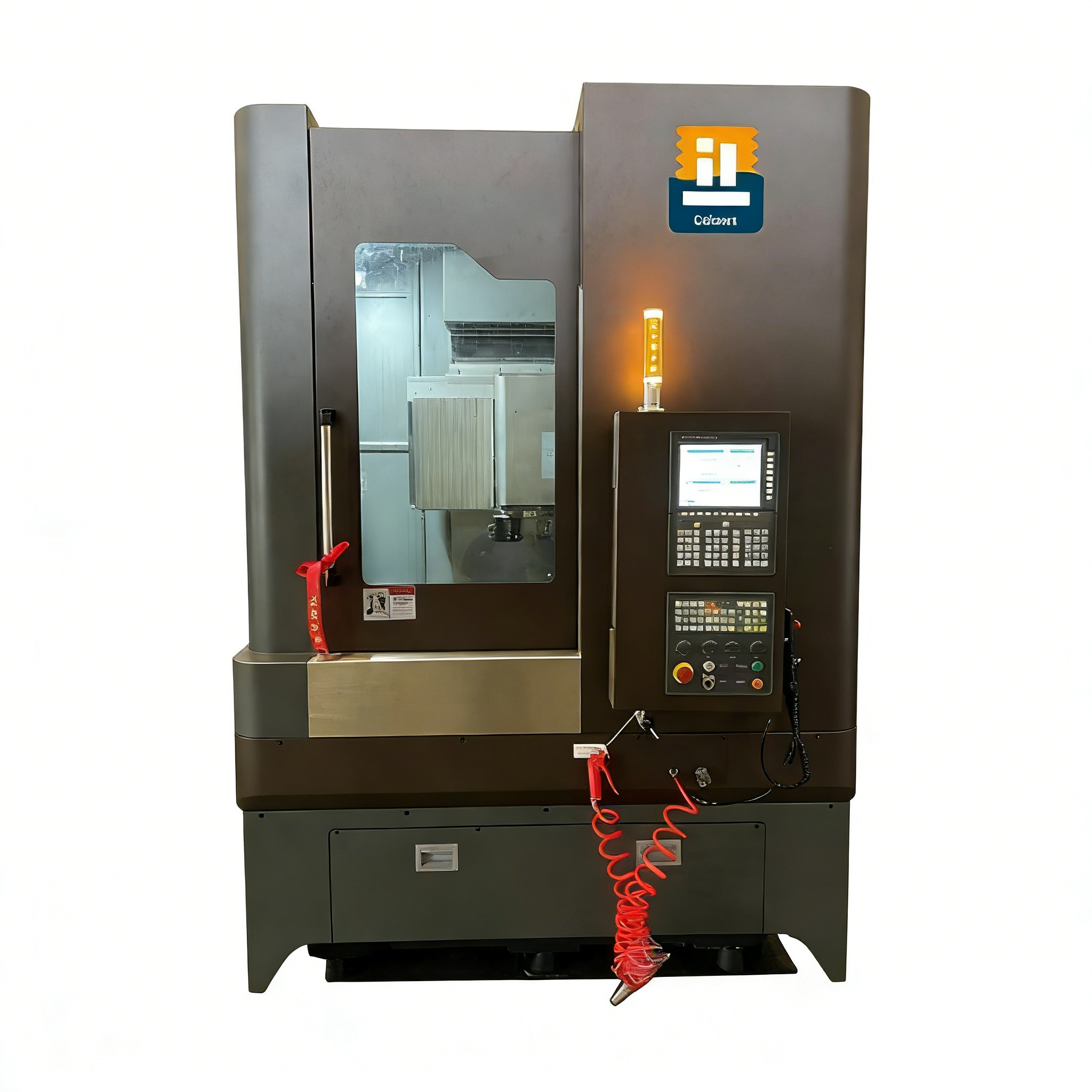

CNC Vertical Lathe: VL25A / VL35A — Horizontal Turret 12T

Vertical Turning Center: VL25M / VL35M — Live BMT Turret

A: Horizontal Turret	M: Live BMT Turret

High-Speed High-Precision Vertical Turning Center VL25M / VL35M

Application:

High-precision parts for aerospace, automotive, medical industries
Heavy cutting, multi-process combined, turn-mill integration

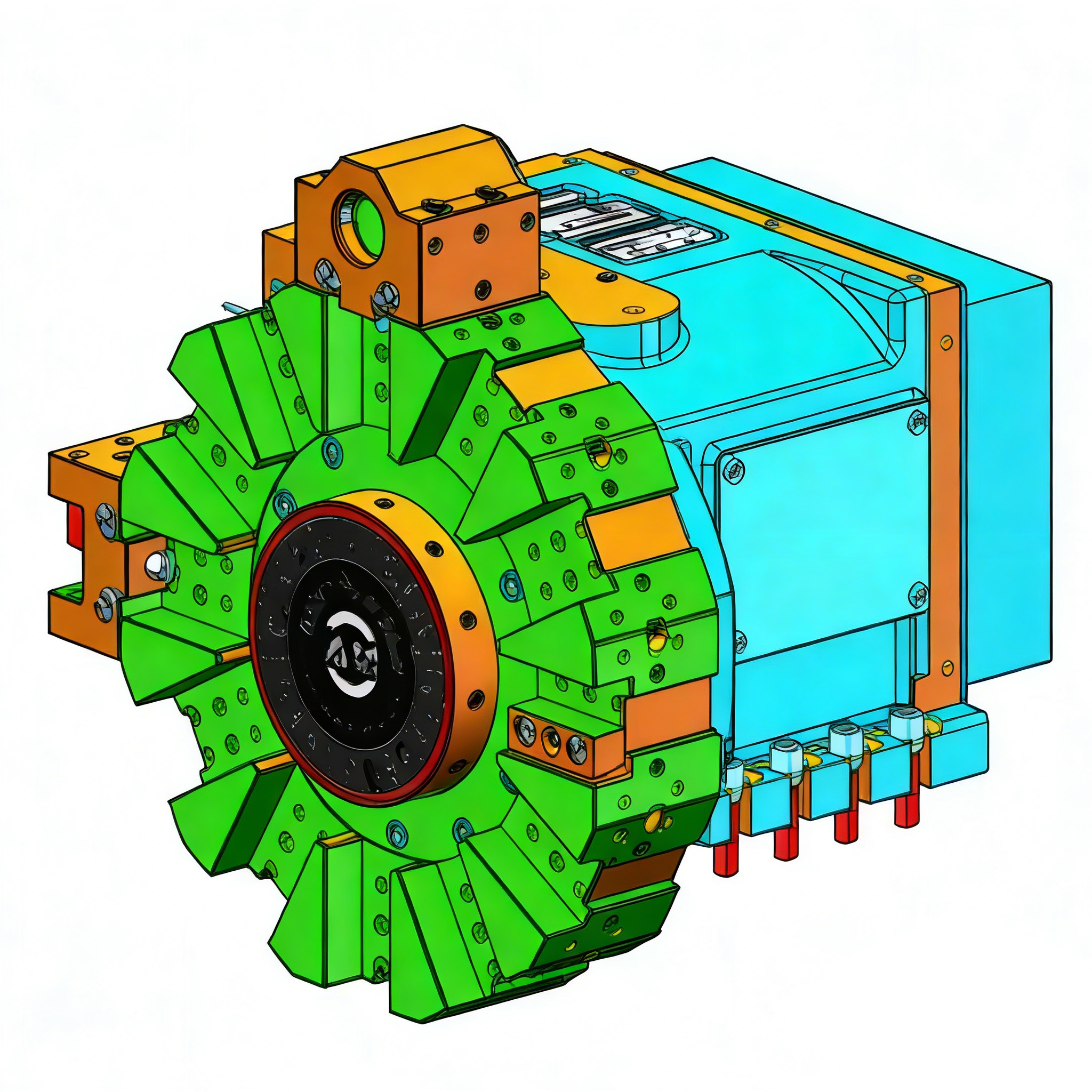

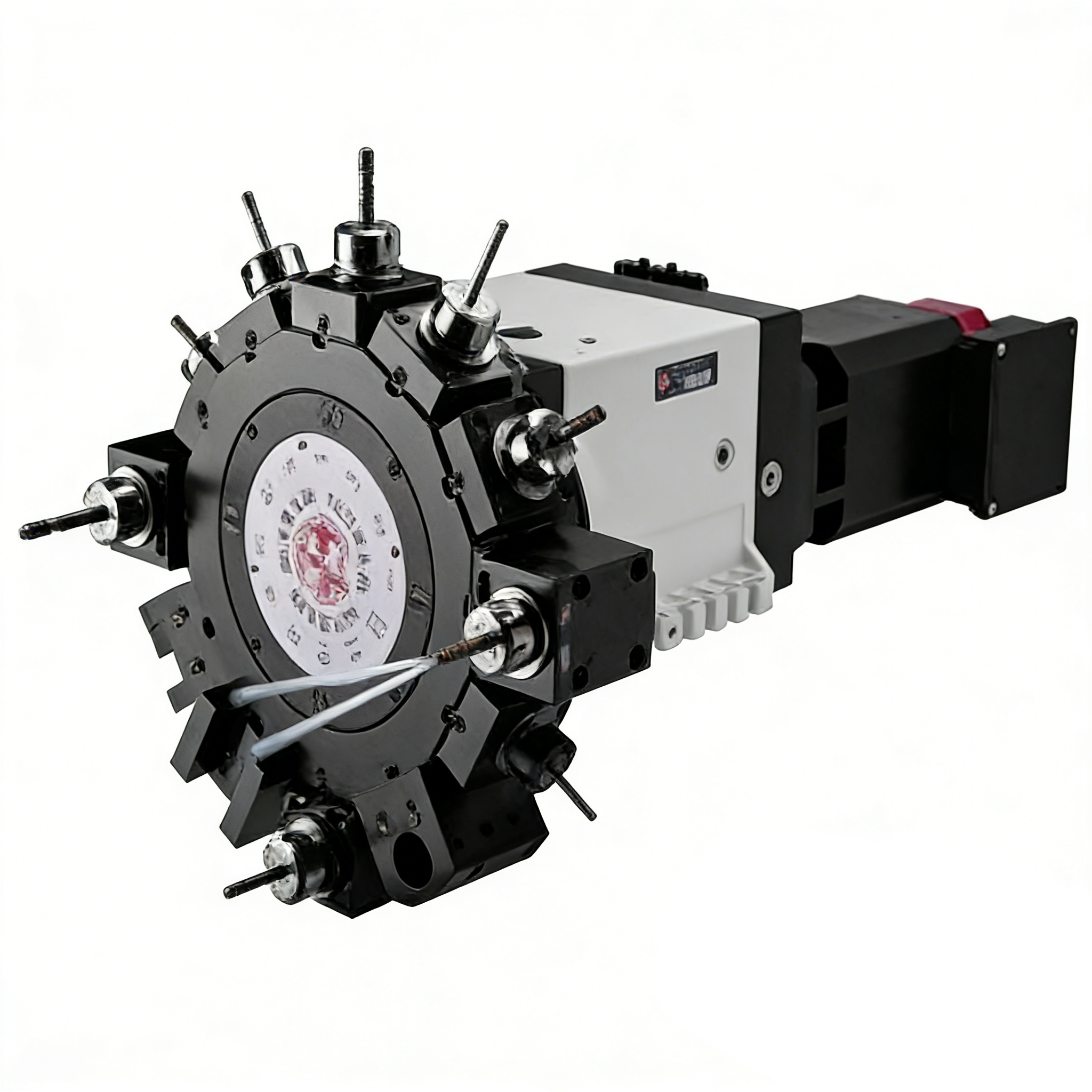

Live BMT Turret Features:

Servo motor drive, high torque, low noise
High rigidity and strong anti-vibration performance
High positioning and repeat positioning accuracy
Fast tool change, high machining efficiency

Machine Configuration

1. Standard Configuration

1	FANUC 0i-TF Plus	10	THK / Taiwan Linear Guide & Ball Screw
2	IP54 Operation Panel	11	Centralized Automatic Lubrication
3	Spindle Servo Motor	12	Coolant System
4	3-Jaw Hydraulic Chuck	13	Chip Conveyor + Chip Bin
5	12-Station Horizontal Turret	14	Full Enclosure Guard
6	Hydraulic Unit	15	Tool Kit
7	Electrical Cabinet AC	16	Technical Documents
8	LED Work Light	17	Tool Box
9	LED Tri-Color Alarm Light	-	-

2. Optional Configuration

1	Siemens 828D / GSK 988TA	10	Workpiece Probing System
2	2-Step Gear Spindle	11	X/Z Axis Linear Scale
3	Automatic Doors	12	Spindle Motor Upgrade
4	Oil-Water Separator	13	Tailstock
5	Oil Mist Collector	14	Z-axis Travel Extension
6	Full Top Cover	15	Column Heightening
7	Camera Monitoring / Anti-Fog Window	16	Grinding Function
8	X/Z Box Way Guide	17	Coolant Chiller
9	Tool Setting Probe	18	Paper Filter (Through Spindle Coolant)

Application Industries

Suitable for small and medium-batch precision machining in general machinery, automotive parts, aerospace, mold manufacturing, etc. Specialized in efficient turning of rotary parts (disc, shaft, sleeve types).

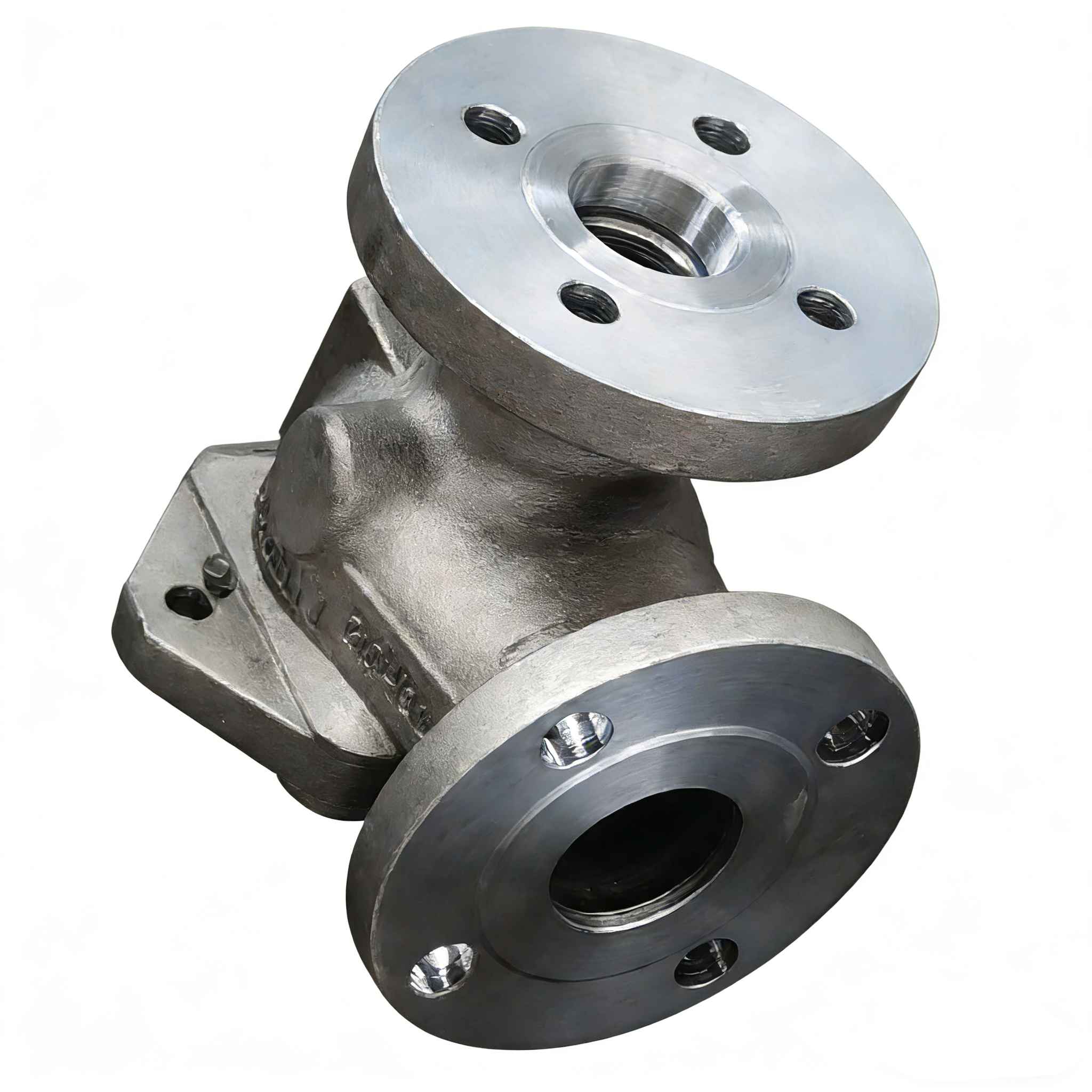

1. Disc Parts: Flange, valve body, gear blank, pulley, coupling, bearing housing, motor end cover, pump cover, etc.

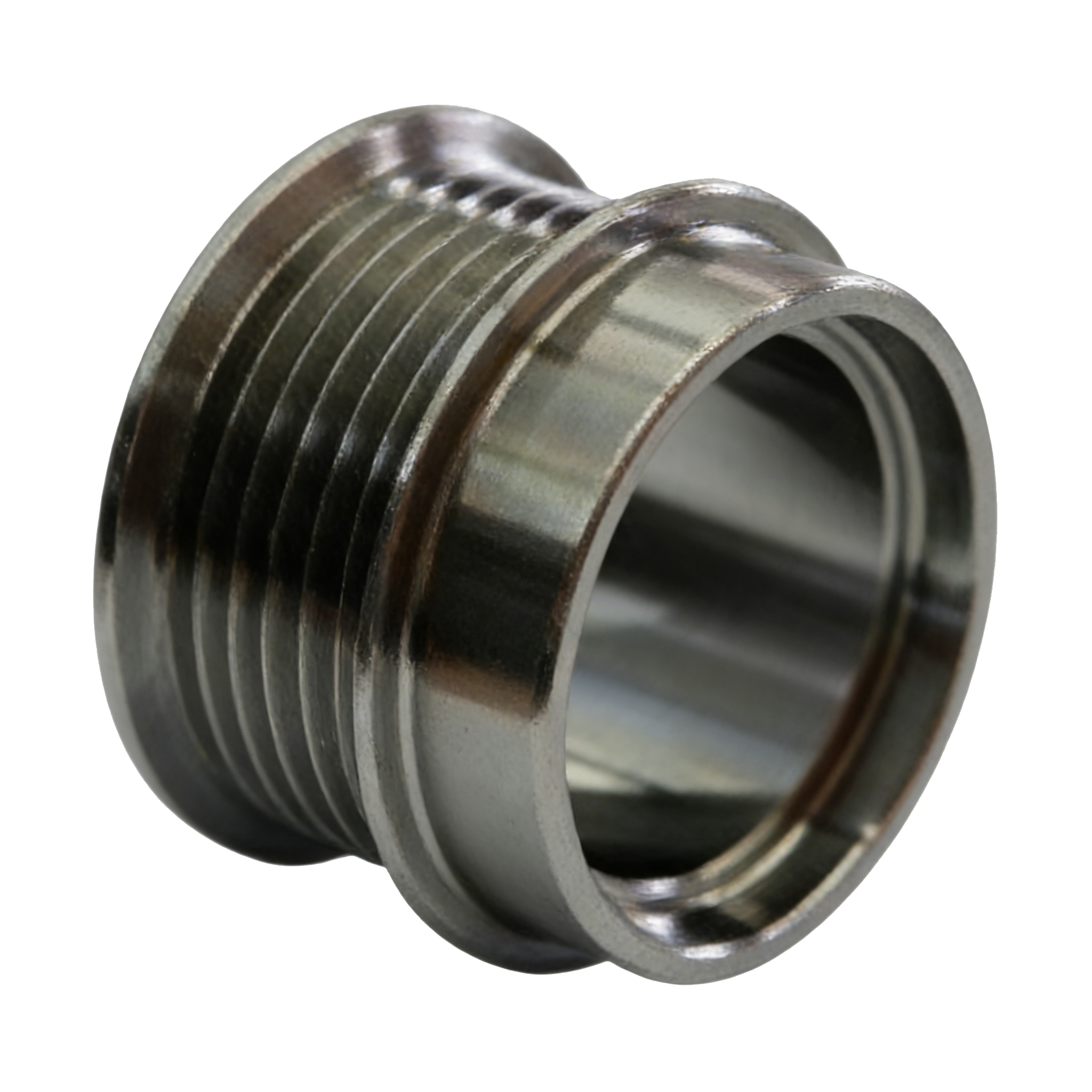

2. Shaft / Sleeve Parts: Short shaft, sleeve, bushing, nut, screw joint, drive shaft, hydraulic cylinder, valve body, etc.

3. Special Rotary Parts: Precision parts with steps, taper, arc, threads, mold core / cavity, valve core, etc.

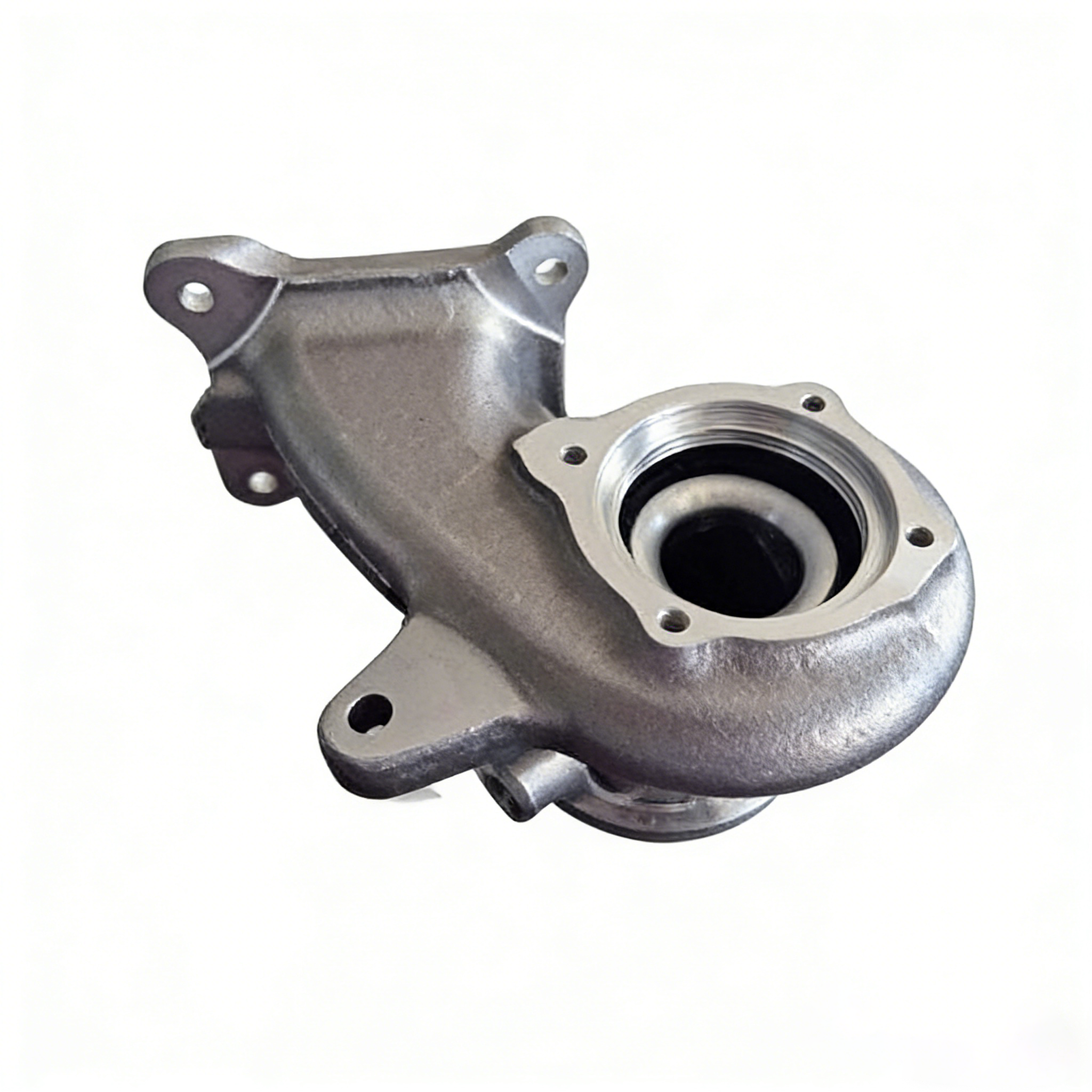

Brake Disc	Pulley	Turbine Housing	Steering Knuckle	Valve Body
