CNC Vertical Lathe

High-Speed, High-Precision CNC Vertical Lathe

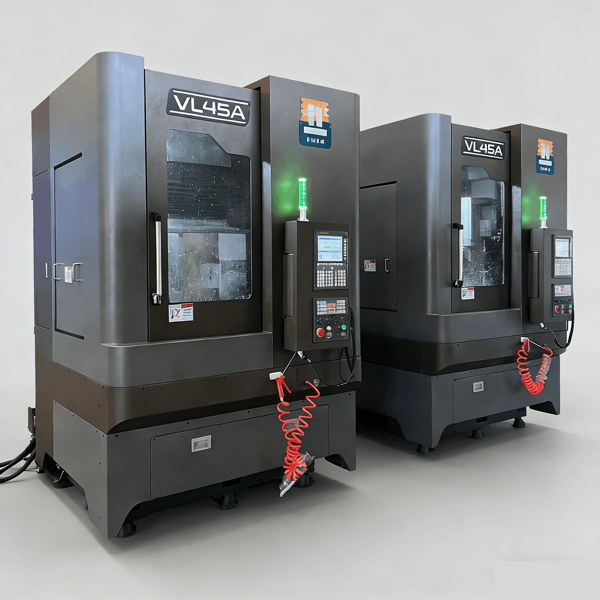

VL-45 / VL55

High-Speed, High-Precision Vertical Turning Center VL45M / VL55M

Eliminates oval machining caused by gravity — Achieves near-perfect roundness precision

▼ Scroll Down

High-Speed, High-Precision Vertical Turning Center
VL45M / VL55M

Workpiece self-weight ensures secure clamping
Eliminates oval machining, achieves true roundness

Φ450 / Φ550 mm

Max Cutting Diameter

880 / 1240 Nm

Max Spindle Torque

2000 / 1600 RPM

Spindle Speed

FEATURES

Product Features

Vertical lathe achieves high-precision, stable machining through workpiece self-weight clamping and high-rigidity structure

Ideal for machining large, thin, heavy, and irregularly shaped workpieces with easy loading and unloading
Workpiece self-weight ensures tight contact with the fixture, delivering high-precision and stable machining results with short and consistent loading/unloading times
Eliminates oval machining caused by the gravitational inertia inherent in horizontal chucking — achieves near-perfect roundness precision
Irregular workpieces that are difficult to clamp can be machined smoothly and steadily; simplified fixture design reduces manufacturing costs

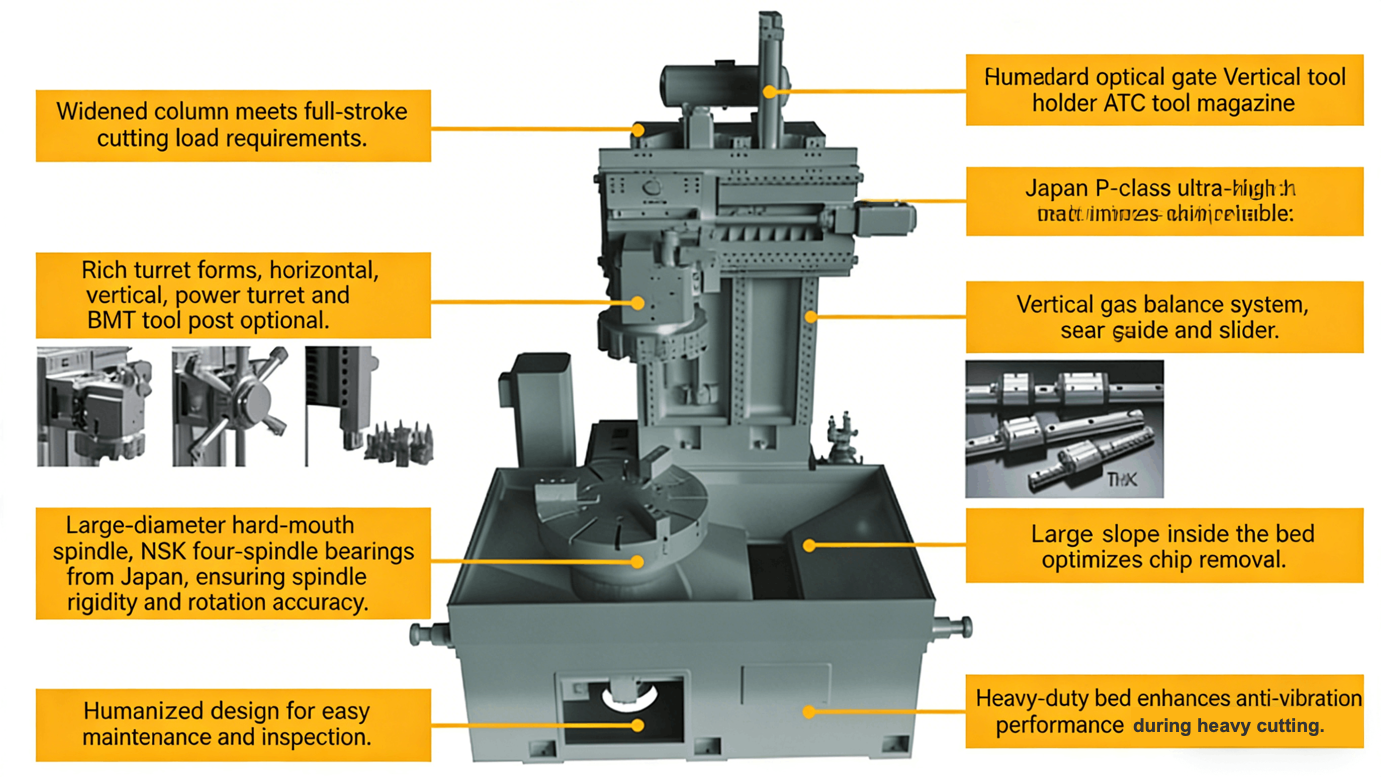

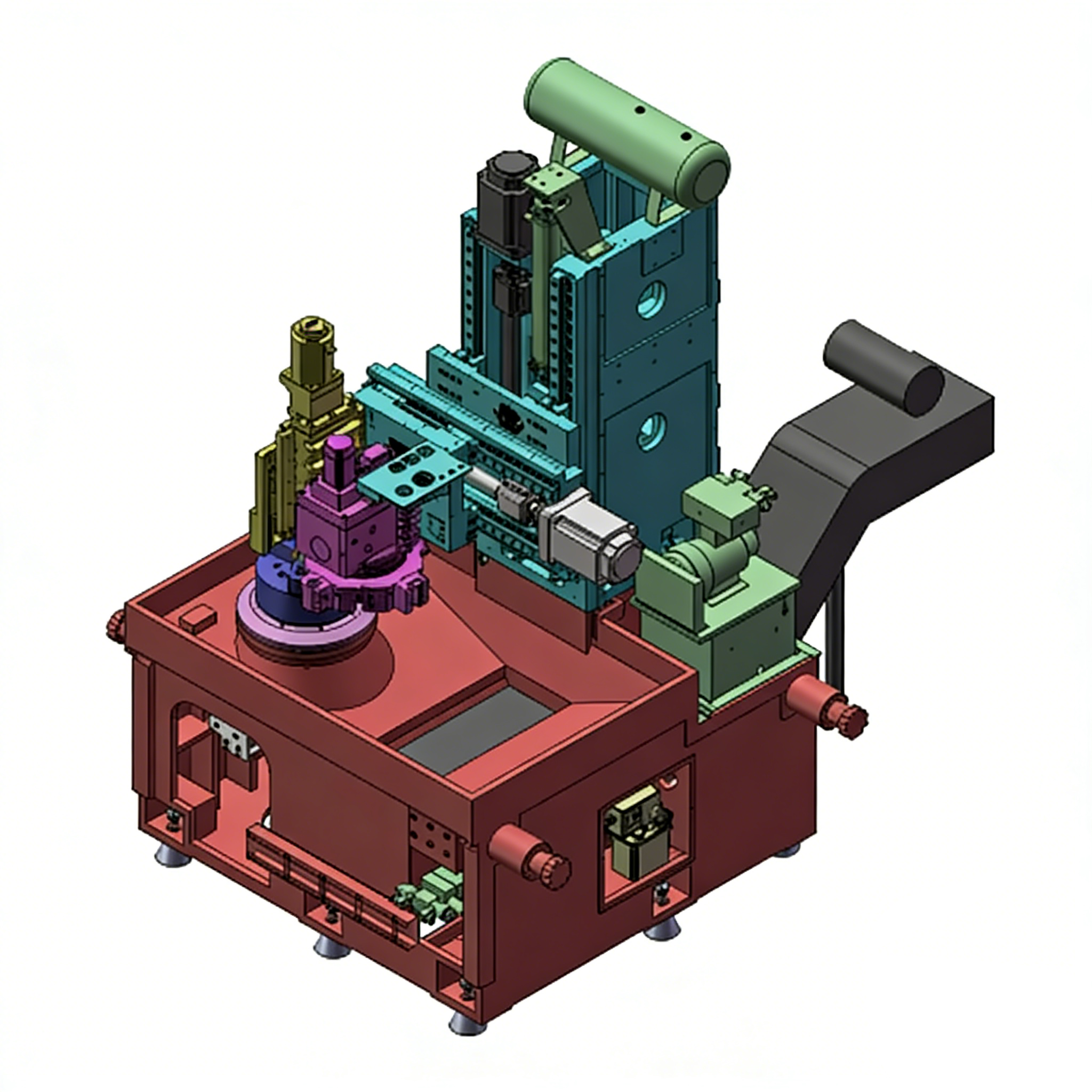

Near-square high-rigidity machine design minimizes thermal displacement and vibration effects. Enlarged chip evacuation angle with stainless steel panels improves chip removal and prevents bed thermal deformation
Ergonomic 3D assembly line operation with easy workpiece handling
Occupies only half the floor space of a horizontal lathe
Multi-function configuration with optimal operation at minimum investment cost

SPECIFICATIONS

Product Models & Specifications

VL45 and VL55 series to meet diverse machining requirements

Item	Unit	VL45	VL55
Machining Capacity
3-Jaw Hydraulic Chuck	inch / mm	12 / Φ304	15 / Φ380
Max Swing Diameter	mm	Φ600	Φ700
Max Cutting Diameter	mm	Φ450	Φ550
Max Cutting Height	mm	450 / 600	450 / 600
Max Workpiece Weight	kg	400	400
Axis Travel
X-Axis Travel (Left/Right)	mm	280	350
Z-Axis Travel (Up/Down)	mm	450 / 600	450 / 600
Spindle
Spindle Servo Motor Power	kW	15 / 18.5	18.5 / 22
Spindle Speed	RPM	2000	1600
Spindle Torque (Belt Reduction)	Nm	440	620
Optional Spindle Gearbox	—	Auto 2-Speed	Auto 2-Speed
Gear Ratio	—	1:4	1:4
Max Torque with Optional Gearbox	Nm	880	1240
Spindle Nose	—	A2-8	A2-8
Spindle Bearing Diameter	mm	Φ130	Φ130
Feed Rate
X-Axis Rapid Traverse	m/min	20	20
Z-Axis Rapid Traverse	m/min	18	18
Turret
Turret Type / Tool Stations	Pcs	A: Horizontal/8-12 H: Vertical/4,5,6 AS: Servo Face Tool	A: Horizontal/8-12 H: Vertical/4,5,6 AS: Servo Face Tool
Tool Size	mm	25×25 Φ40	25×25 Φ40
Control System & Motors
Control System	—	FANUC-0i-TF Plus	FANUC-0i-TF Plus
Spindle Servo Motor	kW	15 / 18.5	18.5 / 22
X-Axis Servo Motor	kW	1.8	1.8
Z-Axis Servo Motor	kW	2.5	2.5
Others
Power Requirement	KVA	20	20
Machine Dimensions (L×W×H)	m	1.6×3.5×2.8	2.0×3.6×3.0
Machine Weight	kg	7000	7500
Protection + Chip Conveyor	—	External Guard + Hinge Belt Chip Conveyor	External Guard + Hinge Belt Chip Conveyor
Machine Accuracy	mm	Positioning: ±0.005 Repeatability: ±0.003	Positioning: ±0.005 Repeatability: ±0.003

CNC Vertical Lathe

VL45A · VL45 · VL45H · VL55A

Vertical Turning Center

VL45M · VL55M — Powered Turret BMT

Wide-Range Spindle Servo Motor

High-rigidity spindle design combined with a wide-range servo motor achieves the perfect combination of low-speed high torque and high-speed precision machining, meeting the cutting performance requirements of modern vertical lathes.

2-Speed Gearbox Features

No noise or heat transmitted to the spindle
No vibration transmitted to the spindle, ensuring cutting quality
Separate lubrication system for gearbox and spindle
High transmission efficiency — over 95%
Solenoid valve controlled automatic gear shifting

TURRET OPTIONS

Turret Configuration

Multiple turret types available to meet various machining process requirements

Type A — Horizontal Turret, 8-12 Stations

Type H — Vertical Turret, 4/5/6 Stations

Type AS — Servo Face Tool

Servo motor + ball screw precisely controls the upper and lower tool distance, enabling simultaneous machining of both sides

Type M — Powered Turret BMT

CONFIGURATION

Standard & Optional Equipment

Comprehensive standard equipment with flexible options to meet all machining needs

Standard Equipment

FANUC-0i-TF Plus Control System
IP5-rated Operator Panel
Spindle Servo Motor
3-Jaw Hydraulic Chuck
Horizontal 12-Station Turret
Hydraulic System
Electrical Cabinet Air Conditioner
LED Work Light
LED 3-Color Warning Light
Japan THK / Taiwan Linear Guides & Ball Screws
Centralized Automatic Lubrication System
Coolant Workpiece Cooling System
Chip Conveyor + Chip Cart
External Sheet Metal Guard
Maintenance Tools
Technical Documentation
Toolbox

Optional Equipment

SIEMENS 828D / GSK 988TA Control System
H: 4/5/6-Station Hydraulic Servo Vertical Turret
AS: Servo Face Tool (Dual-Side Machining)
M: Powered Turret BMT
2-Speed Spindle Gearbox
Automatic Door
Oil-Water Separator
Mist Collector
Full Enclosure Sheet Metal Guard (Enclosed Top)
Machining Monitor — Anti-Fog Rotary Window
X/Z-Axis — Sliding Box Guide
Tool Breakage Detection System
Workpiece Measurement System
X & Z-Axis Linear Scales
Spindle Servo Motor Power Upgrade
Center Tailstock
Extended Z-Axis Travel
Raised Column
Grinding Function
Coolant Cooling System
Paper Belt Filter

APPLICATIONS

Typical Applications

Suitable for small to medium batch precision machining in general machinery, automotive components, aerospace & lightweight equipment, and mold manufacturing. Machining of rotary parts: shafts, discs, and sleeves.

1. Disc-type Parts: Medium flanges, valve bodies, gear blanks, pulleys, couplings, bearing housings, motor end covers, hydraulic pump end covers

2. Sleeve / Cylinder Parts: Large liners, hydraulic cylinders, bearing sleeves, valve bodies, machine tool spindle sleeves

3. Short Shaft / Irregular Rotary Parts: Large stepped shafts, short shafts, crankshaft connecting rod journals, valve spools, rotary mold cores/cavities

4. Hub-type Parts: Small industrial hubs, forklift hubs, agricultural machinery hubs

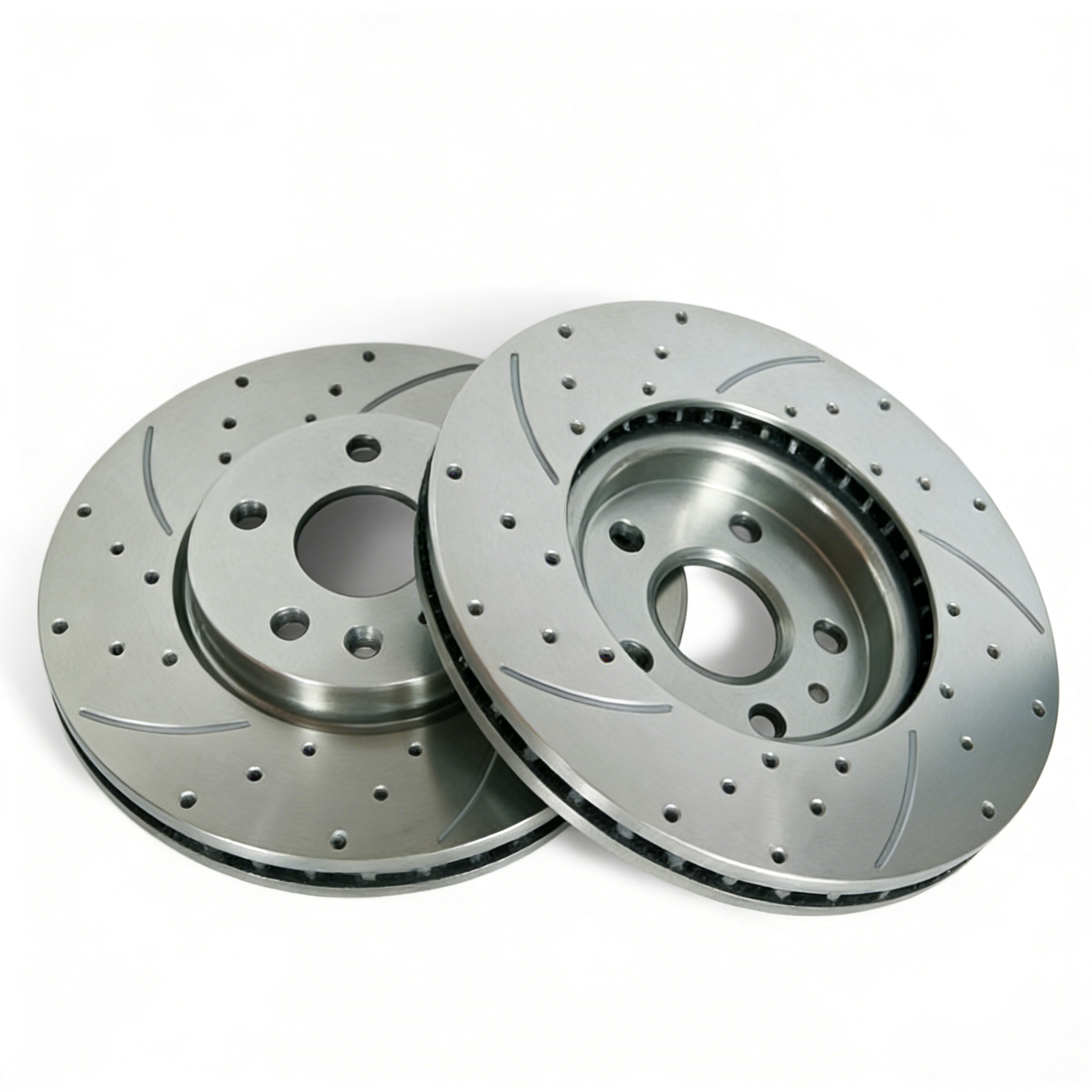

Brake Disc

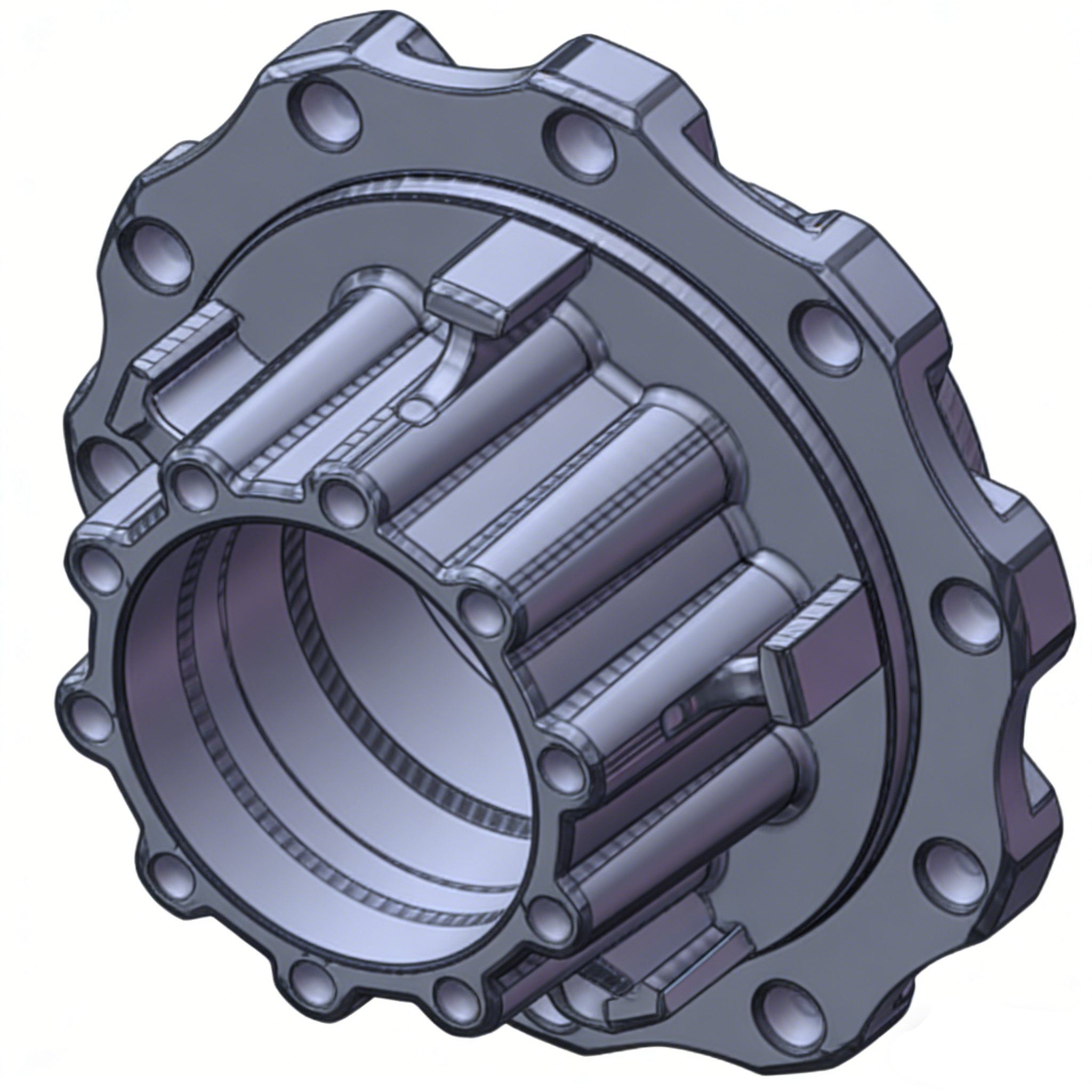

Wheel Hub

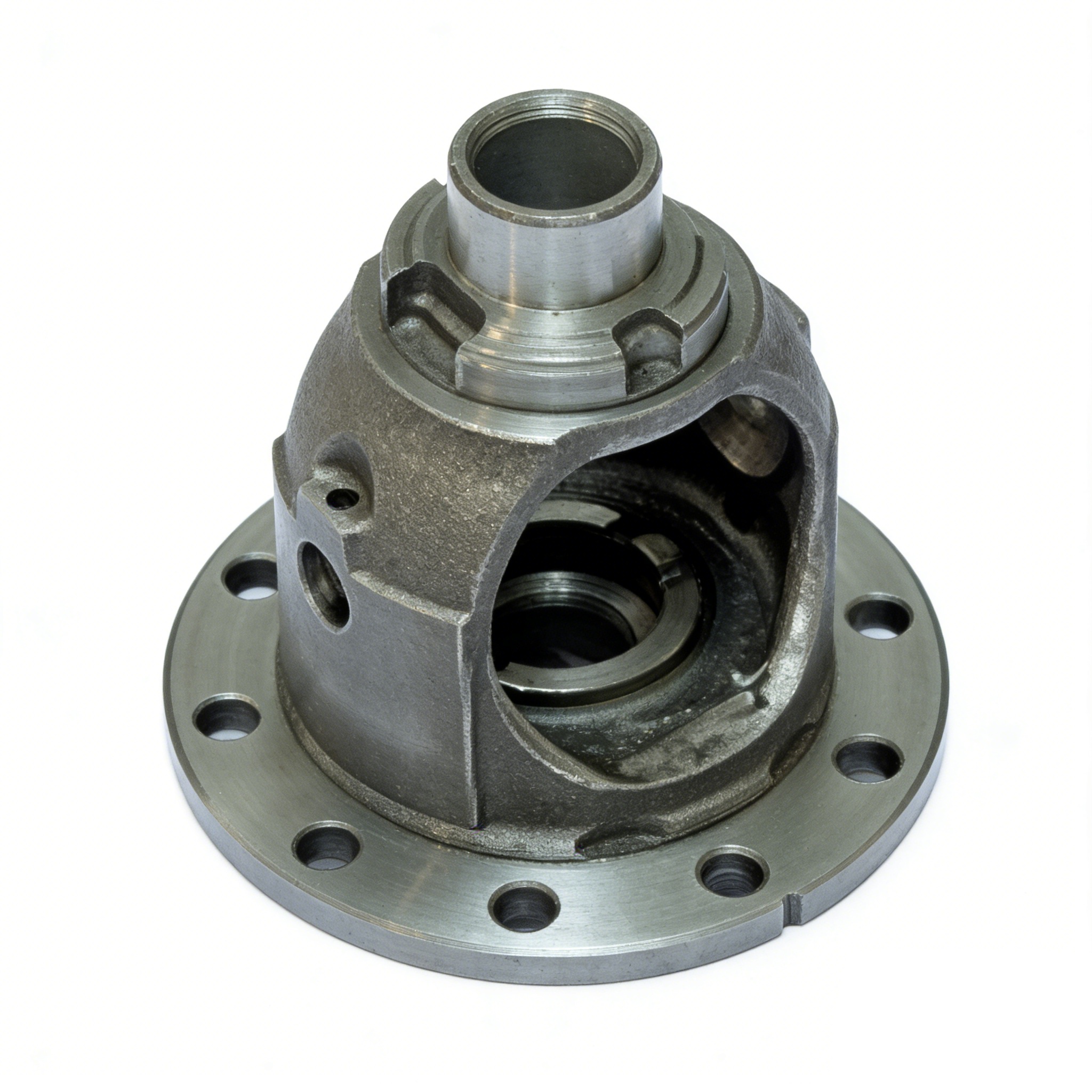

Differential Housing

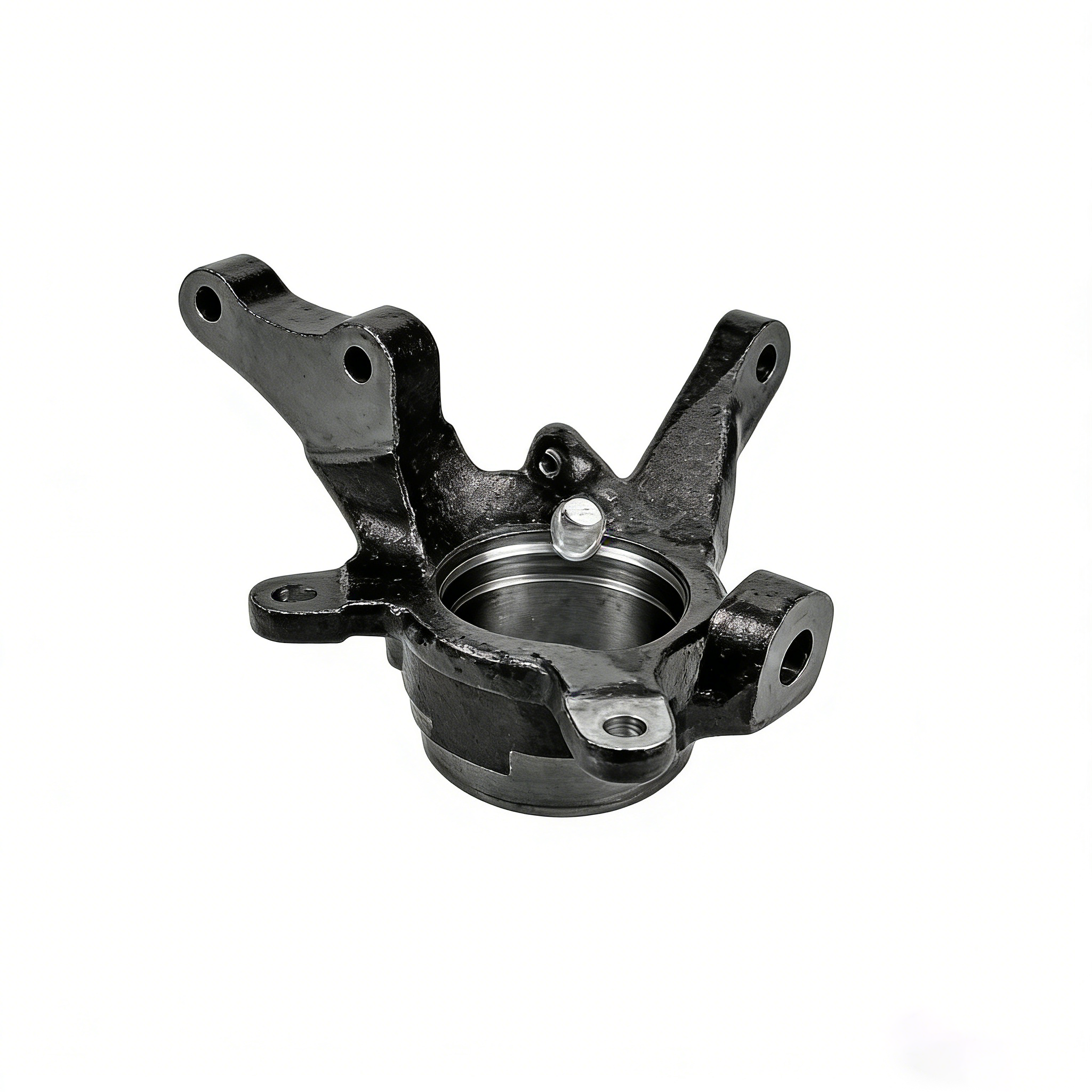

Steering Knuckle

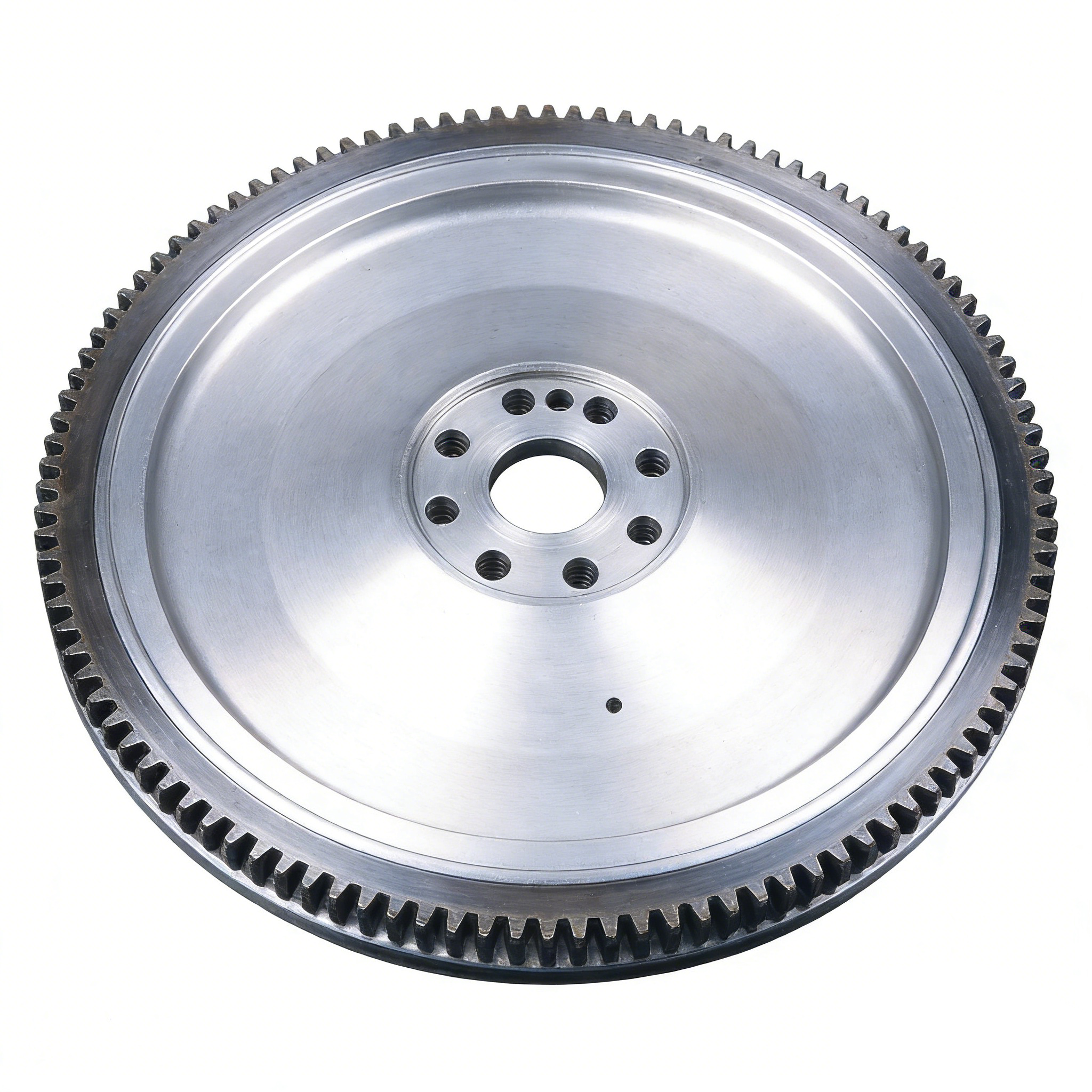

Gear

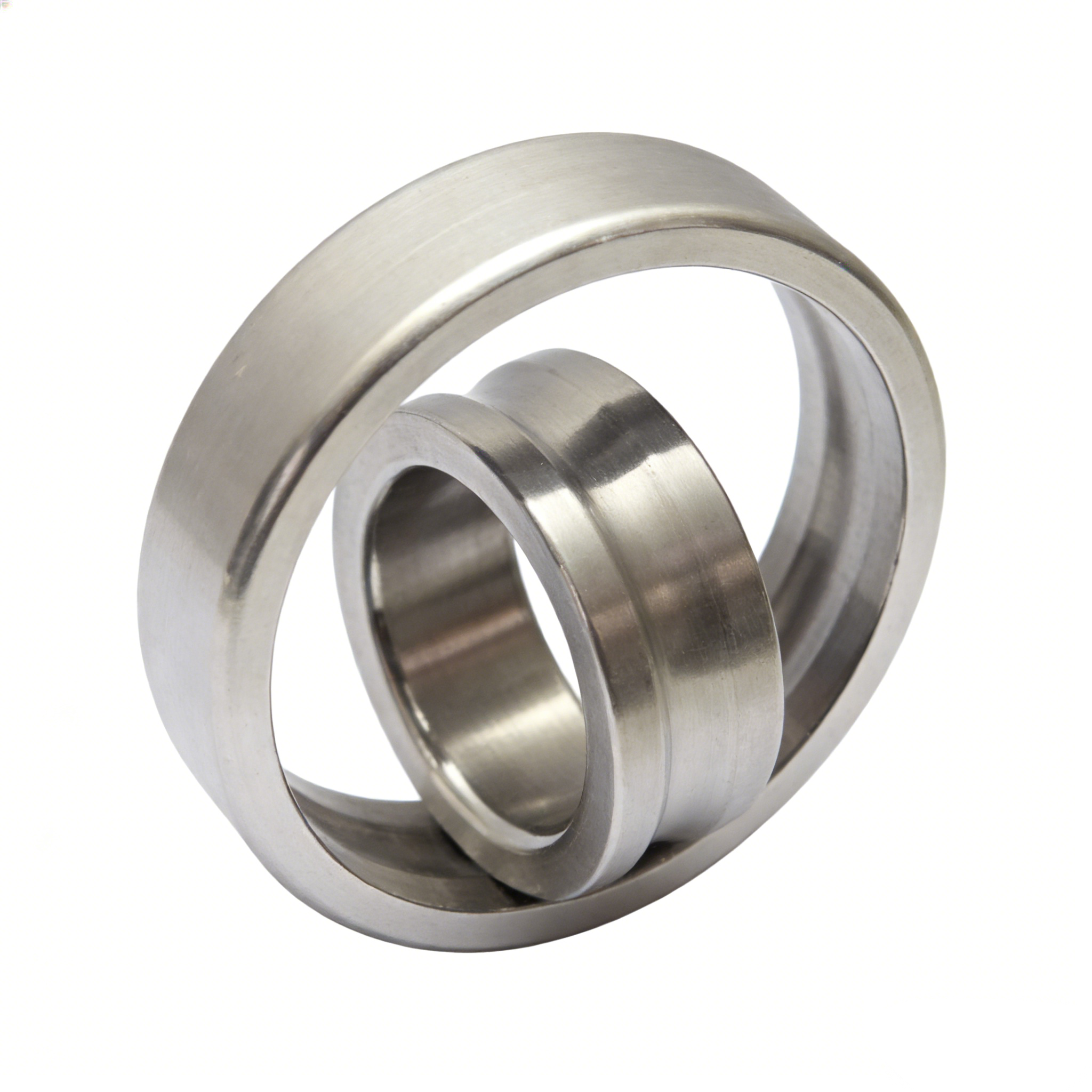

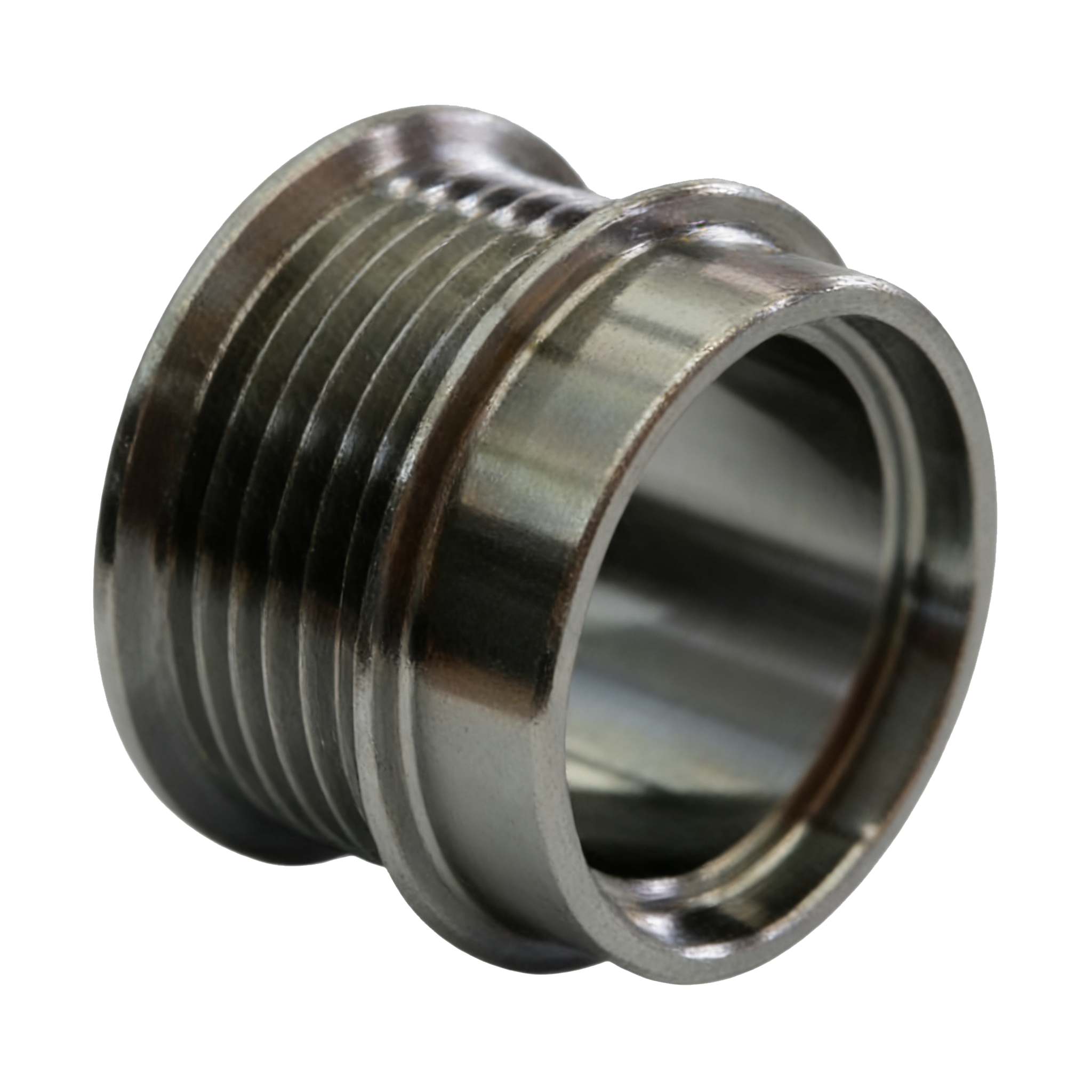

Bearing Ring

Pulley

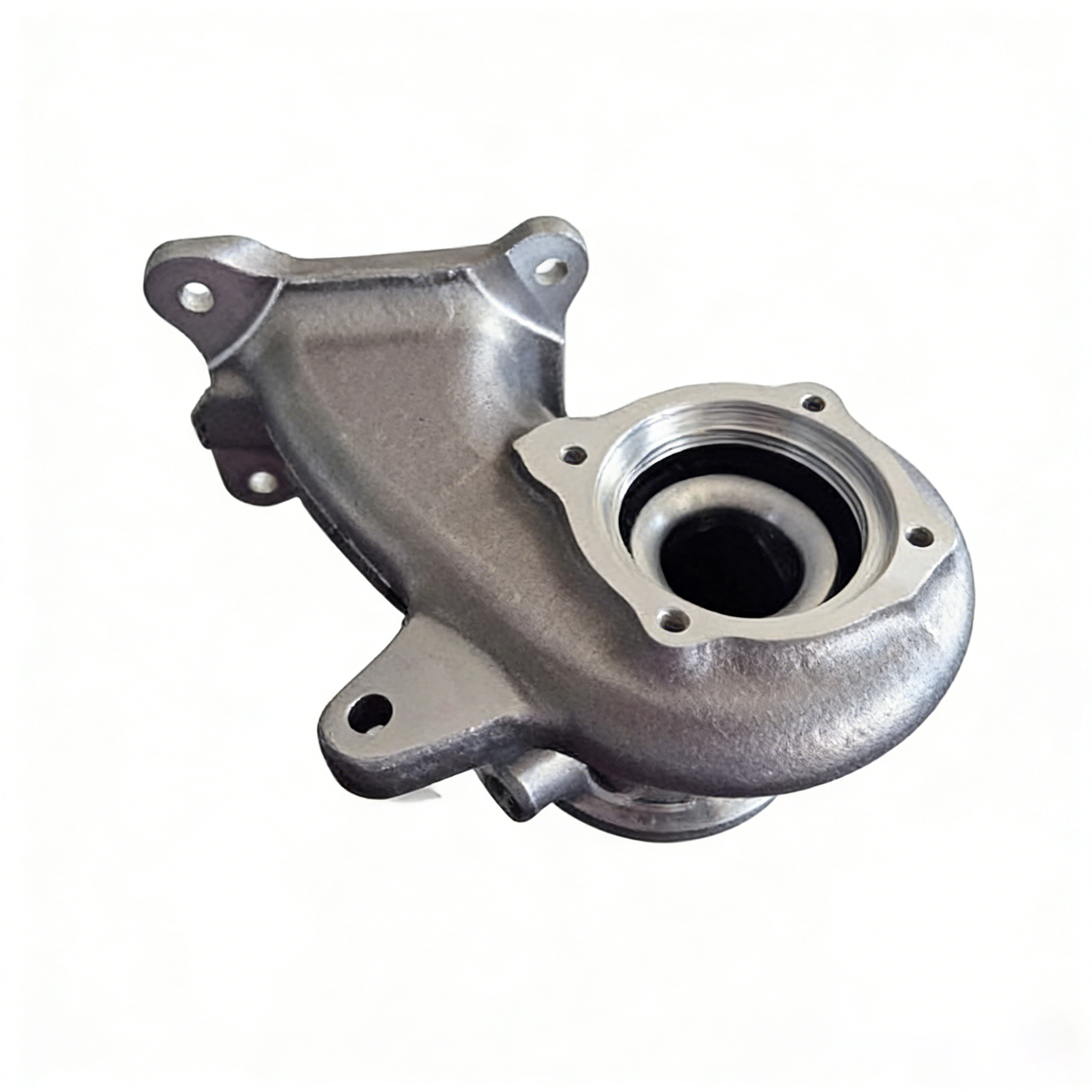

Turbo Housing

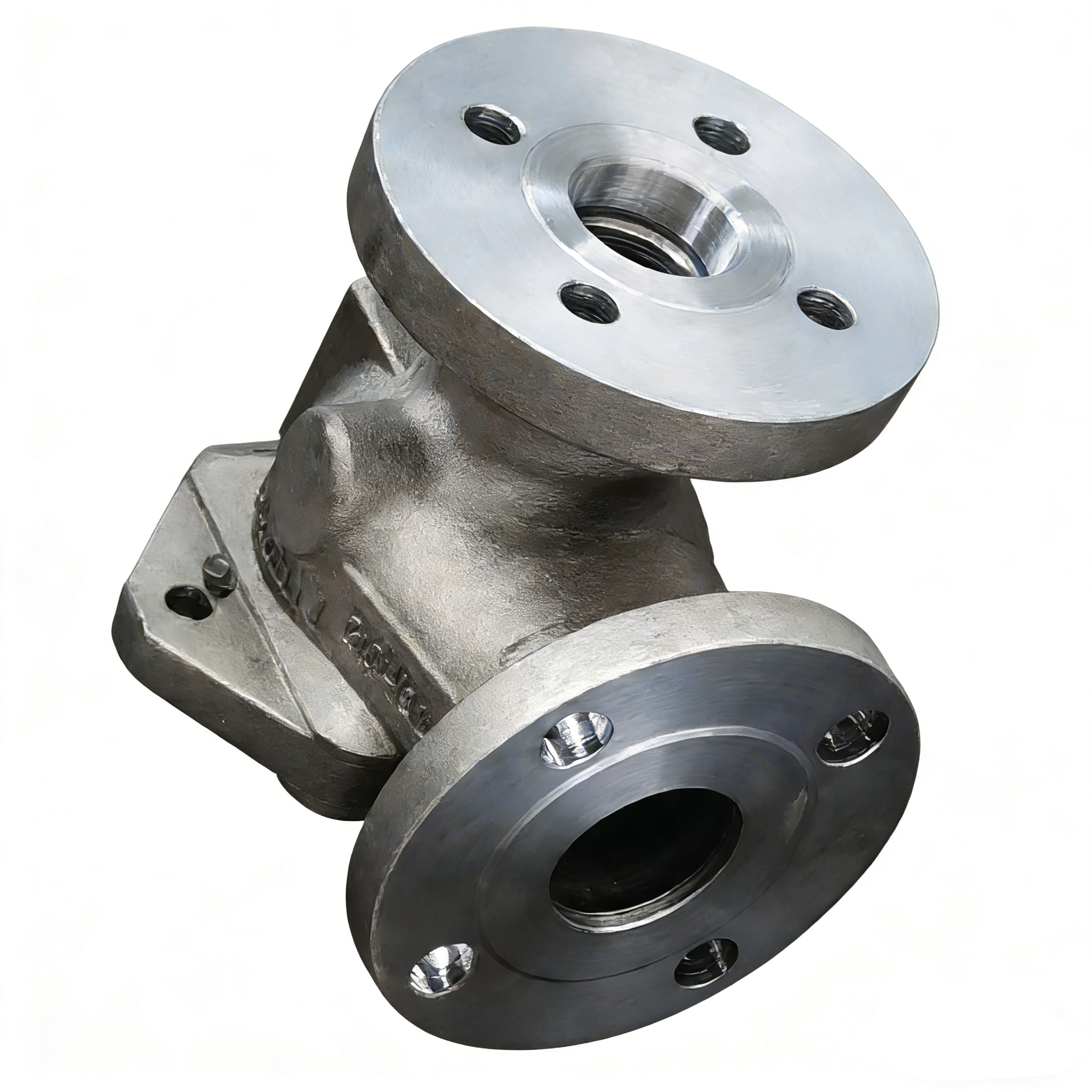

Valve Body

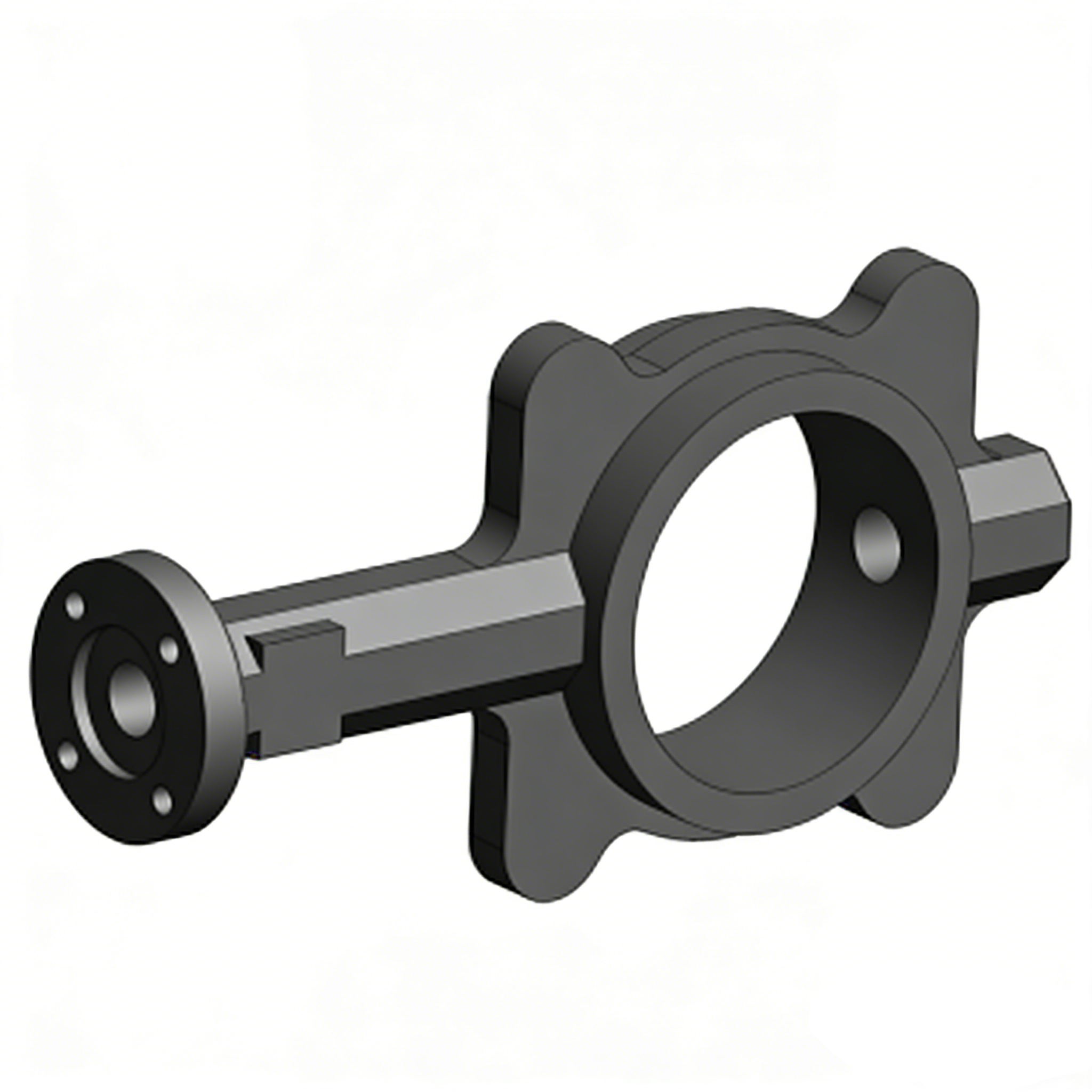

Butterfly Valve
