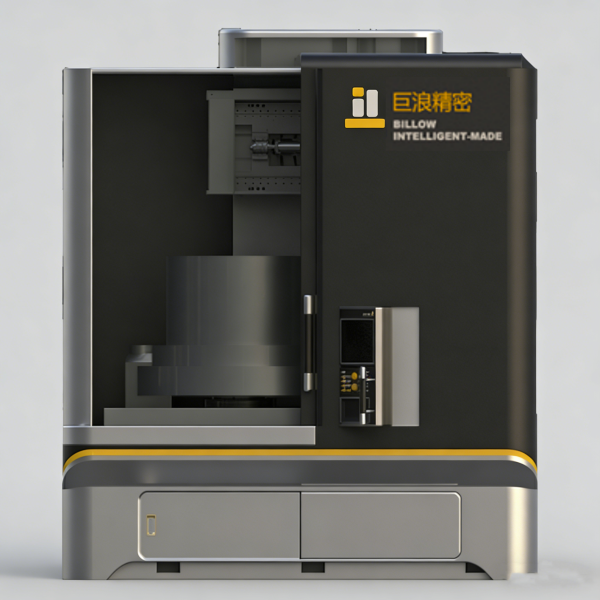

Vertical lathes/turning centers VL66/VL76

Product Features

Suitable for large, thin, heavy and irregular-shaped workpieces; easy loading and unloading.
Workpiece self-weight ensures firm clamping, delivering high-precision and stable machining results with short and consistent loading time.
Eliminates oval machining caused by self-weight inertia in horizontal lathes, achieving excellent roundness.
Stable machining for difficult-to-clamp irregular workpieces; simple fixture structure with low manufacturing cost.

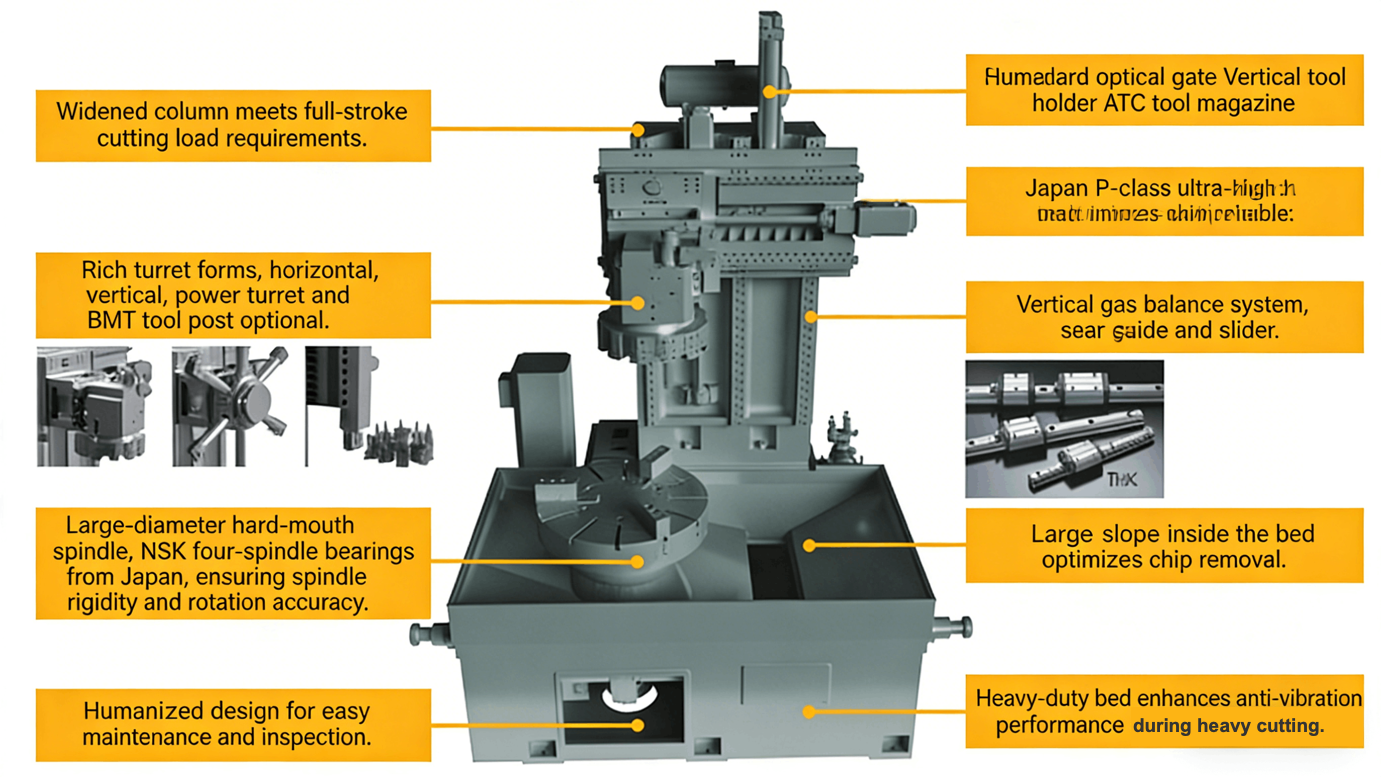

Near-square high-rigidity design minimizes thermal deformation and vibration. Increased chip removal angle with stainless steel plate ensures smooth chip evacuation and prevents bed thermal deformation.
Ergonomic three-dimensional assembly line for convenient workpiece handling.
Occupies 1/2 less space than horizontal lathes.
Multi-function configuration, optimal operation, and minimum investment cost.

Specifications

Item	Specification		Unit	VL66	VL76
Machining Capacity	3-Jaw Hydraulic Chuck		inch/mm	18/Ø 457	21/Ø 533
	Max. Swing Diameter		mm	Ø800	Ø 900
	Max. Cutting Diameter		mm	Ø 660	Ø 780
	Max. Cutting Height		mm	650/850	650/850
	Max. Workpiece Weight		kg	600	600
Travel	X-axis Travel		mm	350	450
	Z-axis Travel		mm	450	600/800
Spindle	Spindle Servo Motor Power		kW	22/26	22/26
	Spindle Speed		rpm	1200	800
	Max. Spindle Torque (Belt Drive)		Nm	862	1289
	Optional Spindle Gearbox	2-Speed Shift	-	Auto 2-speed	Auto 2-speed
		Reduction Ratio	-	1:4	1:4
		Max. Spindle Torque	Nm	2124	2750
	Spindle Nose		-	A2-11	A2-11
	Spindle Bearing Diameter		mm	Ø 160	Ø 160
Rapid Traverse	X-axis Rapid Feed		m/min	18	18
	Z-axis Rapid Feed		m/min	16	16
Turret	Turret Type / Tool Quantity		Pcs	A: Horizontal /8-12 H: Vertical /4,5 M: Live Tool Turret 12T AS: Servo Facing Tool	A: Horizontal /8-12 H: Vertical /4,5,6 M: Live Tool Turret 12T AS: Servo Facing Tool
	Tool Shank Size		-	32×32, Ø50	32×32, Ø50
Control System	Controller		-	FANUC 0i-TF Plus
	Spindle Servo Motor		kW	22/26	22/26
	X-axis Servo Motor		kW	2.5	2.5
	Z-axis Servo Motor		kW	2.5	2.5
Others	Power Requirement		kVA	40	40
	Machine Dimensions (L×W×H)		m	2.0×3.6×3.2	2.0×3.6×3.2
	Machine Weight		kg	9000	9500
	Protection + Chip Conveyor		-	Full Enclosure + Hinged Belt Conveyor
	Machine Accuracy		mm	Positioning: ±0.005 Repeatability: ±0.003

CNC Vertical Lathe:

VL66A – Horizontal Turret 12T

VL76A – Horizontal Turret 12T

VL66H – Vertical Turret 4T,5T

VL76H – Vertical Turret 4T,5T

Vertical Turning Center:

VL66M – Live Tool Turret BMT-12T

VL76M – Live Tool Turret BMT-12T

Wide-Range Spindle Servo Motor

Main drive powered by wide-range spindle servo motor, high torque output, excellent heavy cutting performance. Meets all cutting requirements of modern vertical lathes.

2-Speed Gearbox Features

● No noise or heat transferred to spindle

● No vibration transferred to spindle, ensuring cutting quality

● Separate lubrication system for gearbox and spindle

● High transmission efficiency – over 95%

● Solenoid-controlled automatic shifting

Machine Configuration

1. Standard Configuration

1	FANUC 0i-TF Plus	10	THK/Taiwan Linear Guides & Ball Screws
2	IP54 Operation Station	11	Centralized Automatic Lubrication System
3	Spindle Servo Motor	12	Coolant System
4	3-Jaw Hydraulic Chuck	13	Chip Conveyor + Chip Bin
5	12-Station Horizontal Turret	14	Full Enclosure Guarding
6	Hydraulic System	15	Tool Kit
7	Cabinet Air Conditioner	16	Technical Documents
8	LED Work Light	17	Tool Box
9	LED Tri-Color Signal Light	-	-

2. Optional Configuration

1	SIEMENS 828D / GSK 988TA Controller	12	Tool Setting System
2	H: 4/5/6-Station Hydraulic Servo Vertical Turret	13	Workpiece Measuring System
3	AS: Servo Facing Tool (Double-side Machining)	14	X/Z Axis Linear Scales
4	M: BMT Live Tool Turret	15	Spindle Motor Power Upgrade
5	2-Speed Spindle Gearbox	16	Center Tailstock
6	Automatic Doors	17	Z-axis Travel Extension
7	Oil-Water Separator	18	Column Heightening
8	Oil Mist Collector	19	Grinding Function
9	Full Enclosure (Top Covered)	20	Coolant Chiller
10	Processing Monitor / Anti-Fog Window	21	Paper Filter (For Through-Spindle Coolant / Grinding)
11	X/Z Box Way Guides	-	-

A: Horizontal Turret	H: Vertical Turret	AS: Servo Facing Tool	M: BMT Live Turret	Full Enclosure

Typical Applications

1. General Machinery: Flanges, gear blanks, belt pulleys, couplings, motor end covers, bearing housings

2. Engineering & Mining Machinery: Excavator hubs, track rollers, cylinder bases, crusher rotors, wear-resistant bushings

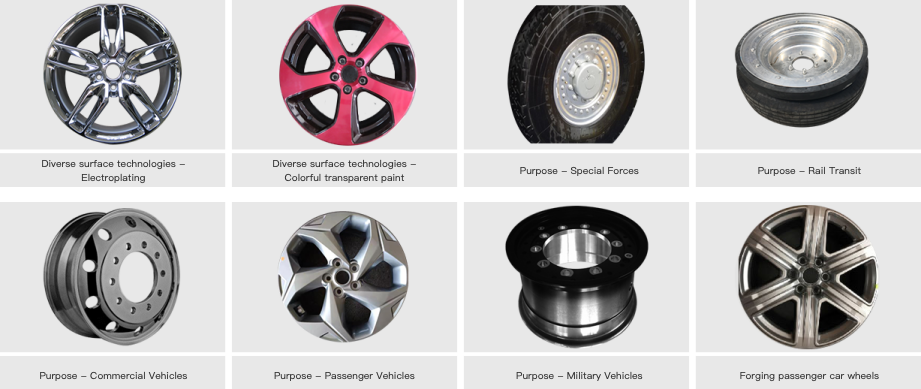

3. Automotive & Rail Transit: Car wheels, aluminum wheels, brake drums, brake discs, flywheels, high-speed rail brake discs, bogie flanges, train wheels

4. Energy Equipment (Wind/Hydro/Nuclear): Wind flanges, turbine runners, nuclear heads, seal rings

5. Petrochemical & Explosion-proof Equipment: Rod connectors, wellhead flanges, valve bodies, explosion-proof motor end covers, seal bushings

6. Aerospace & Lightweight Equipment: Aircraft landing gear hubs, engine turbine disks, casings, carbon fiber flanges/bushings

7. Mold Manufacturing: Plastic mold cores/cavities, bottle molds, tire mold rings, die-cast mold inserts

Application Industry 1

Brake Drum	Wheel Hub	Wheel Hub	Wheel Hub	Rim

Clutch Pressure Plate Housing	Elevator Traction Wheel	Belt Pulley	Flywheel	Sewing Machine Parts

Application Industry 2

Bearing Housing	Bearing Ring	Gear	Valve Body	Butterfly Valve

Volute	Turbine Housing	Construction Machinery Gearbox Housing	Construction Machinery Swing Drive	Construction Machinery Drive Hub

Application Industry 3

Wind Planet Carrier	Wind Planet Carrier	Wind Planet Carrier	Flange Shaft	Inner/Outer Gear Sleeve

Wind Sprocket	Cycloid Wheel	Wind Pivot	ZF Planet Shaft	ZF Sun Shaft

Application Industry 4

Titanium Alloy Parts	Titanium Alloy Parts	Titanium Alloy Parts	Titanium Alloy Parts	Titanium Alloy Parts

Aluminum Precision Parts	Cast Aluminum Parts	Motor Housing	Paper Industry Grinding Wheel	Integral Impeller
