CNC Vertical Lathe

High-Speed, High-Precision CNC Vertical Lathe
VL-88 / VL98 Model

High-Speed, High-Precision Vertical Turning Center VL88M / VL98M Model

Eliminates elliptical machining caused by gravity, achieving near-perfect roundness precision. High precision, high rigidity, high stability, heavy cutting, high efficiency.

High-Speed, High-Precision CNC Vertical Lathe
VL-88 Model

High-Speed, High-Precision CNC Vertical Lathe
VL-98 Model

Φ880 / Φ980 mm

Max. Cutting Diameter

2750 / 3781 Nm

Max. Spindle Torque (Gearbox)

800 RPM

Spindle Speed

FEATURES

Product Features

Vertical lathe achieves high-precision stable machining through workpiece self-weight clamping and high-rigidity structure

Easy loading/unloading for large, thin, heavy, and irregularly shaped workpieces
Workpiece weight ensures tight clamping with fixture, achieving high-precision and stable machining results. Short and stable loading/unloading time
No elliptical machining caused by self-weight inertia during horizontal lathe clamping, achieving near-perfect roundness precision
Easy and stable machining of difficult-to-clamp irregular workpieces. Simplified fixture design reduces manufacturing costs

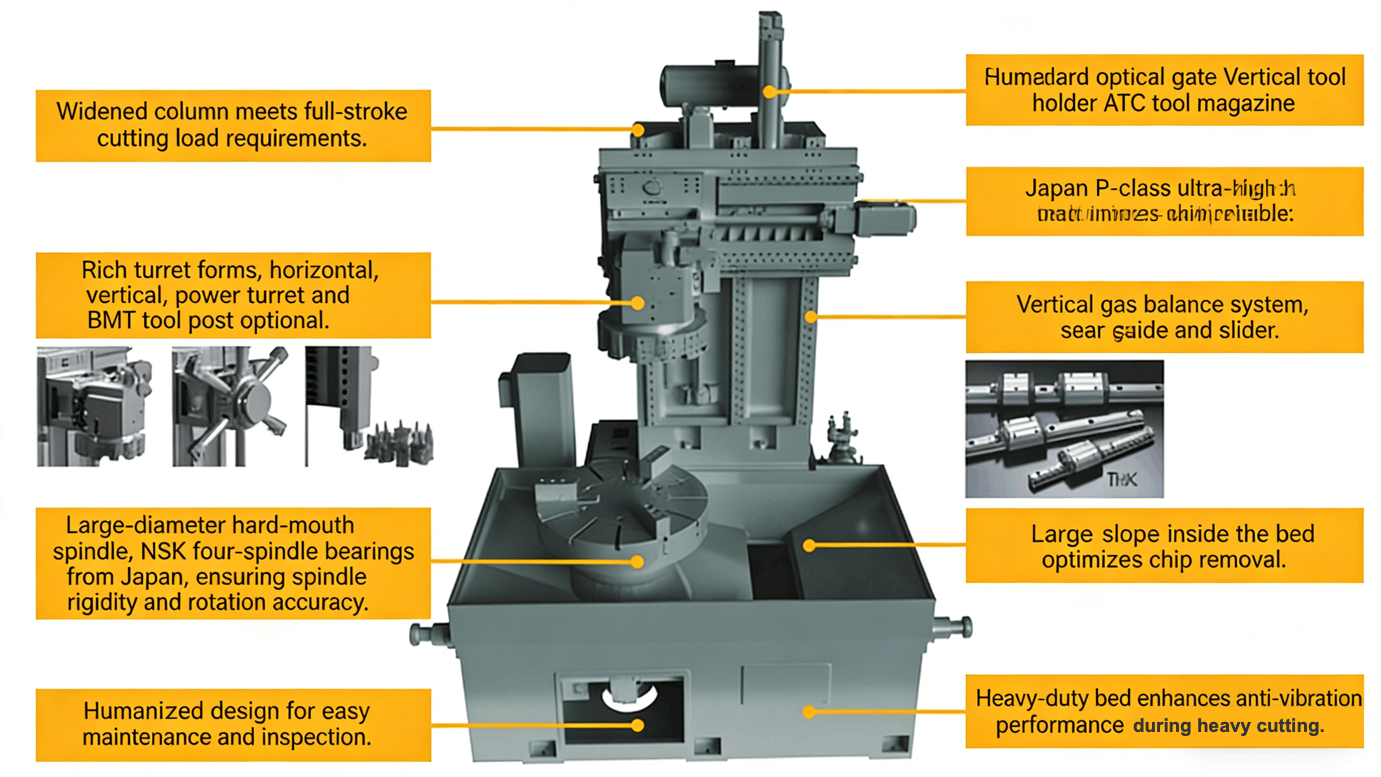

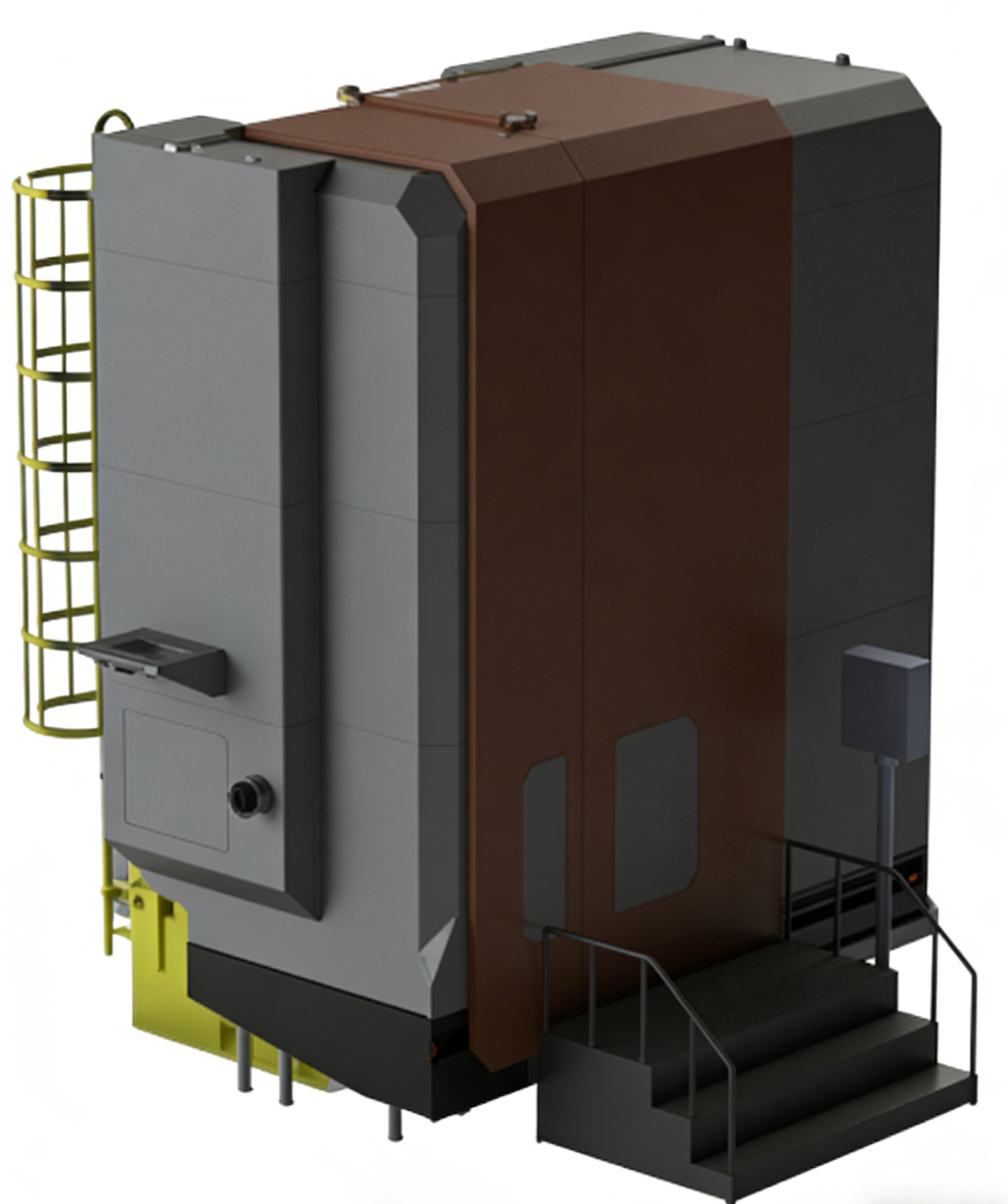

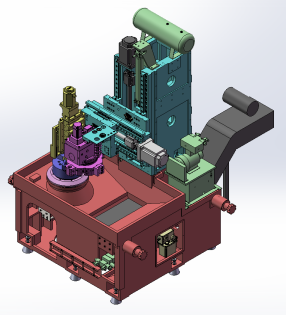

Near-square high-rigidity design minimizes thermal deformation and vibration. Increased chip evacuation angle with stainless steel plates improves chip removal and prevents bed thermal deformation
Ergonomic 3D assembly line design for easy operation and workpiece handling
Occupies 50% less floor space than horizontal lathes
Multi-functional configuration, optimal operation, and minimum investment cost

SPECIFICATIONS

Product Models & Specifications

VL88 and VL98 series meet various machining requirements

Item	Unit	VL88	VL98
Machining Capacity
3-Jaw Hydraulic Chuck	inch / mm	24 / Φ610	28 / Φ711
Max. Swing Diameter	mm	Φ1000	Φ1100
Max. Cutting Diameter	mm	Φ880	Φ980
Max. Cutting Height	mm	850	850
Max. Workpiece Weight	kg	1000	1000
Travel Range
X-Axis Travel	mm	450	550
Z-Axis Travel	mm	850	850
Spindle
Spindle Servo Motor Power	kW	30 / 37	30 / 37
Spindle Speed	RPM	800	800
Spindle Torque (Belt Reduction)	Nm	1591	2120
Optional Spindle Gearbox	—	Automatic 2-Speed	Automatic 2-Speed
Reduction Ratio	—	1:4	1:5.5
Max. Spindle Torque (Gearbox)	Nm	2750	3781
Spindle Nose	—	A2-11	A2-11
Spindle Bearing Diameter	mm	Φ200	Φ200
Feed Rate
X-Axis Rapid Feed	m/min	18	18
Z-Axis Rapid Feed	m/min	16	16
Turret
Turret Type / Tool Count	Pcs	A: Horizontal/8-12 H: Vertical/4,5,6 M: Powered Turret 12T ATC Tool Magazine:10T	Same as Left
Tool Size	—	32×32 Φ50	32×32 Φ50
Control System & Others
Control System	—	FANUC-0i-TF Plus	Same as Left
Power Requirement	KVA	50	50
Machine Dimensions (L×W×H)	m	2.6×3.8×3.6	2.8×3.8×3.6
Machine Weight	kg	14000	15000
Machine Accuracy	mm	Positioning Accuracy: ±0.005 Repeatability: ±0.003	Same as Left

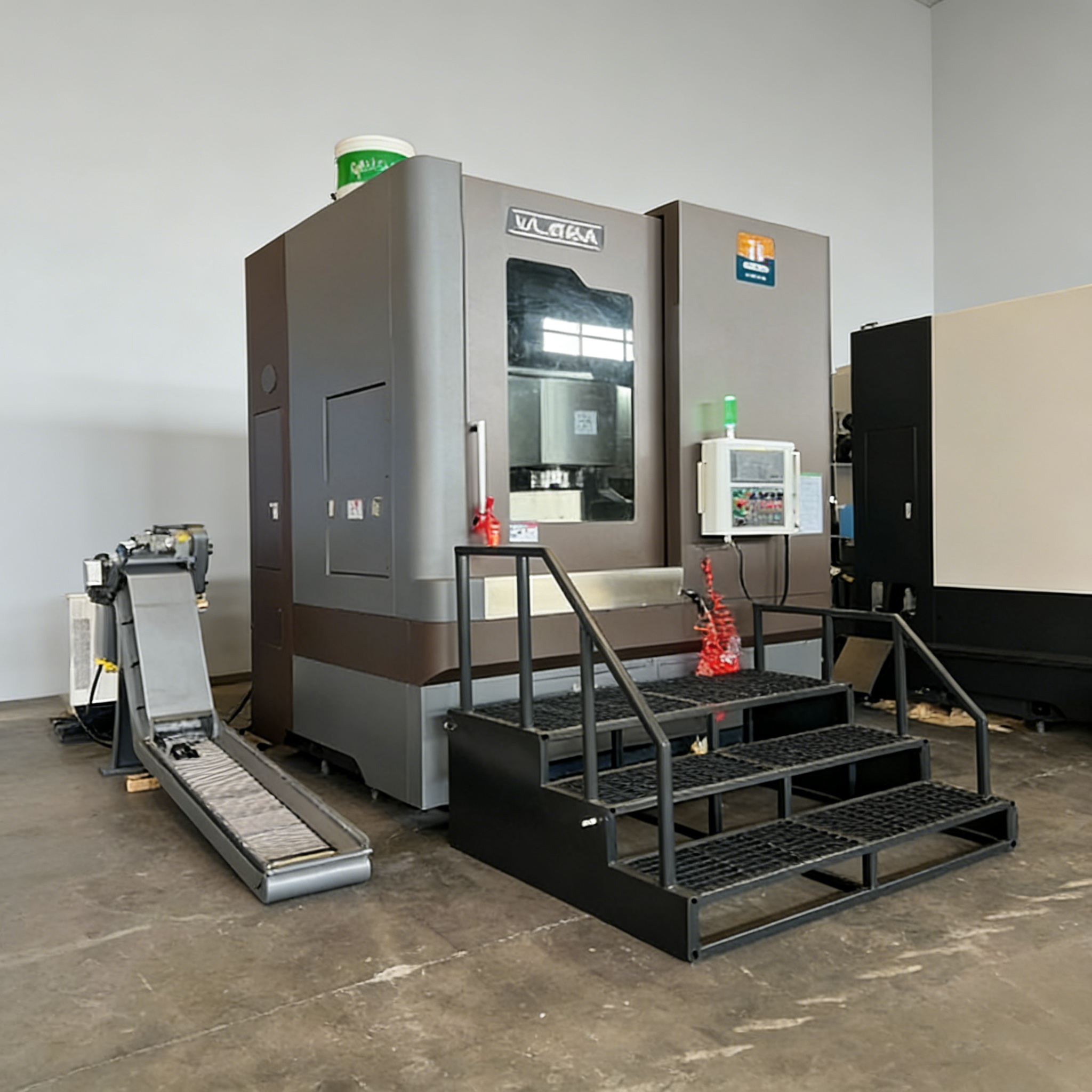

CNC Vertical Lathe

VL88A · VL88H · VL88ATC · VL98A · VL98H · VL98ATC

Vertical Turning Center

VL88M · VL88ATC+C · VL98M · VL98ATC+C — Powered TurretBMT

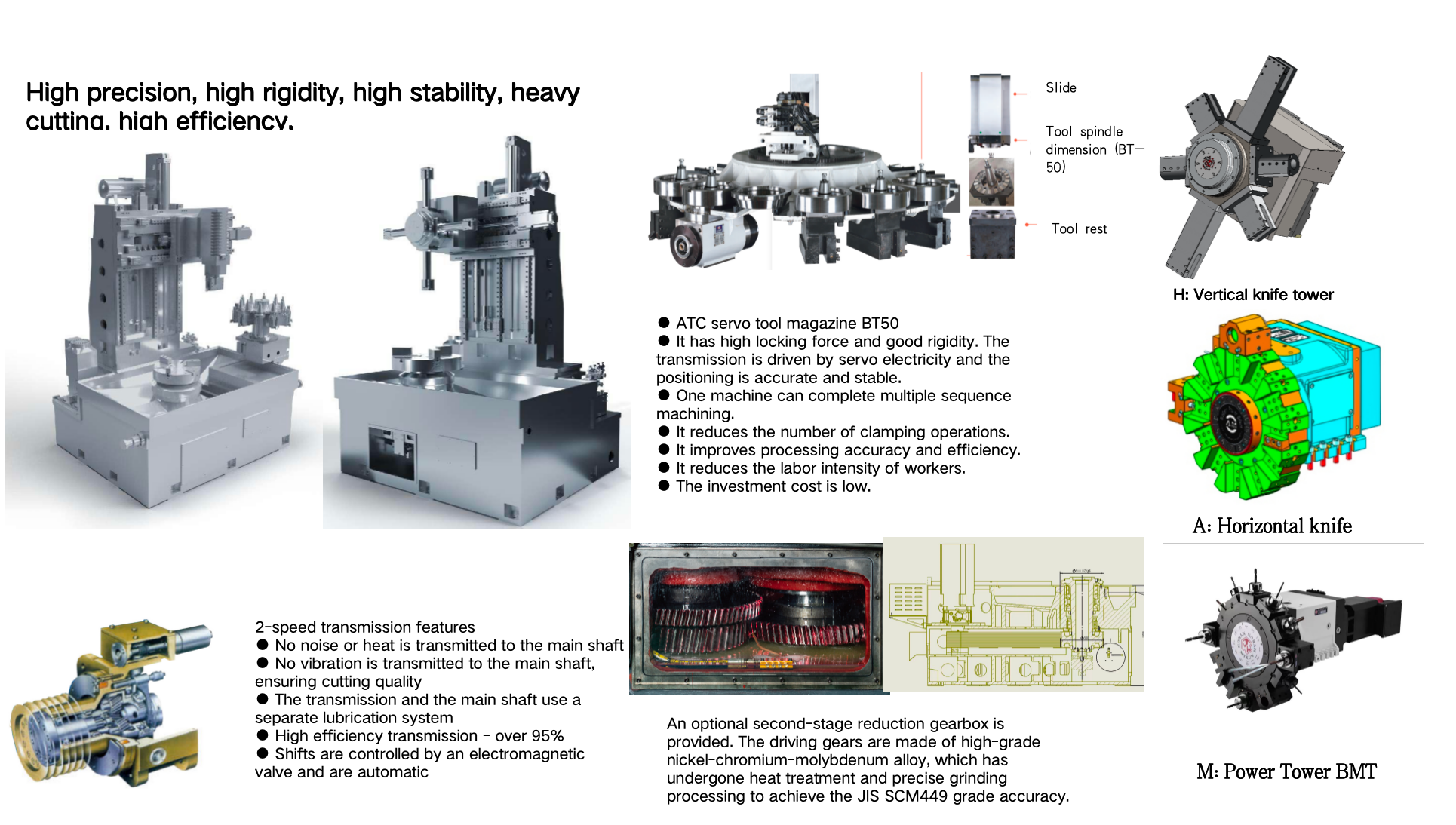

Wide-Range Spindle Servo Motor

High-rigidity spindle design combined with wide-range servo motor achieves perfect balance of low-speed high torque and high-speed precision machining, meeting various cutting performance requirements of modern vertical lathes.

2-Speed Gearbox Features

No noise or heat transmission to spindle
No vibration transmission to spindle, ensuring cutting quality
Separate lubrication system for gearbox and spindle
High-efficiency transmission —— over 95%
Automatic gear shifting controlled by solenoid valve

Optional 2-Stage Reduction Gearbox

Optional 2-stage reduction gearbox, its drive gears are made of high-grade nickel-chromium-molybdenum alloy, heat-treated and precision ground to JIS SCM449 grade accuracy

TURRET OPTIONS

Turret Configuration

Various turret types available for different machining process requirements

Type M — Powered Turret BMT

Type H — Vertical Turret

ATC Tool Magazine

Large clamping force, good rigidity, servo-driven positioning accurate and stable
One machine completes multi-process turning
Reduce clamping times
Improve machining accuracy and efficiency
Reduce worker labor intensity
Low investment cost
Suitable for mass production
Optional 8T or 10T tool magazine

Type A — Horizontal Turret

2-Speed Gearbox Features

No noise or heat transmission to spindle
No vibration transmission to spindle, ensuring cutting quality
Separate lubrication system for gearbox and spindle
High-efficiency transmission —— over 95%
Automatic gear shifting controlled by solenoid valve

CONFIGURATION

Standard & Optional Configuration

Rich standard configuration and flexible optional configuration to meet various machining requirements

Standard Configuration

FANUC-0i-TF Plus Control System
IP5-rated Operation Panel
Spindle Servo Motor
3-Jaw Hydraulic Chuck
A: Horizontal 12-Station Turret
Hydraulic System
Electrical Cabinet Air Conditioner
LED Work Light
LED Three-Color Warning Light
THK (Japan) / Taiwan Linear Guide Rails & Ball Screws
Centralized Automatic Lubrication System
Coolant Workpiece Cooling System
Chip Conveyor + Chip Cart
External Sheet Metal Guard
Maintenance Tools
Technical Documents
Toolbox

Optional Configuration

SIEMENS 828D / GSK988TA Control System
H: 4/5/6-Station Hydraulic Servo Vertical Turret
AS: Servo Facing Head
M：Powered Turret BMT
Spindle 2-Stage Gear Transmission
Automatic Door
Oil-Water Separator
Mist Collector
Full Enclosure Guard (Enclosed Top)
Machining Monitor — Anti-Fog Rotary Window
X/Z-Axis — Sliding Box Guide Rails
Tool Detection System
Workpiece Measurement System
X/Z-Axis Linear Scale
Spindle Servo Motor Power Upgrade
Center Tailstock
Extended Z-Axis Travel
Raised Column
Grinding Function
Coolant Cooling System
Paper Belt Filter
ATC Tool Magazine 8T/10T

Optional Equipment Gallery

4-Jaw / 6-Jaw Hydraulic Chuck

Electromagnetic Chuck

X/Z Axis Linear Scale

Paper Tape Filter (Spindle Coolant)

Tool Detection

Workpiece Measurement System

Grinding Function

Spindle Coolant Through

Anti-Fog Rotary Window

Center Tailstock

High-Pressure Chip Breaking

Coolant Chiller

Siemens Control System

APPLICATIONS

Typical Applications

Suitable for small to medium batch precision machining in general machinery, automotive components, aerospace and lightweight equipment, mold manufacturing and other fields. Turning of rotary parts: shafts, discs, and sleeves.

1. General Machinery:Flanges, gear blanks, belt pulleys, couplings, motor end covers, bearing housings

2. Construction & Mining Machinery:Excavator wheel hubs, track wheels, hydraulic cylinder bottoms, crusher rotor bodies, wear-resistant bushings

3. Automotive & Rail Transit:Automotive wheel hubs, aluminum wheel hubs, brake drums, brake discs, flywheels, high-speed rail brake discs, bogie flanges, train wheels

4. Energy Equipment (Wind/Hydro/Nuclear): Wind power flanges, turbine runner bodies, nuclear heads, sealing rings

5. Petrochemical & Explosion-Proof Equipment:Rod joints, wellhead flanges, valve bodies, explosion-proof motor end covers, sealing sleeves

6. Aerospace & Lightweight Equipment:Aircraft landing gear hubs, engine turbine disc blanks, casings, carbon fiber flanges/sleeves

7. Mold Manufacturing: Plastic mold cores/cavities, bottle molds, tire mold pattern rings, die-cast mold inserts

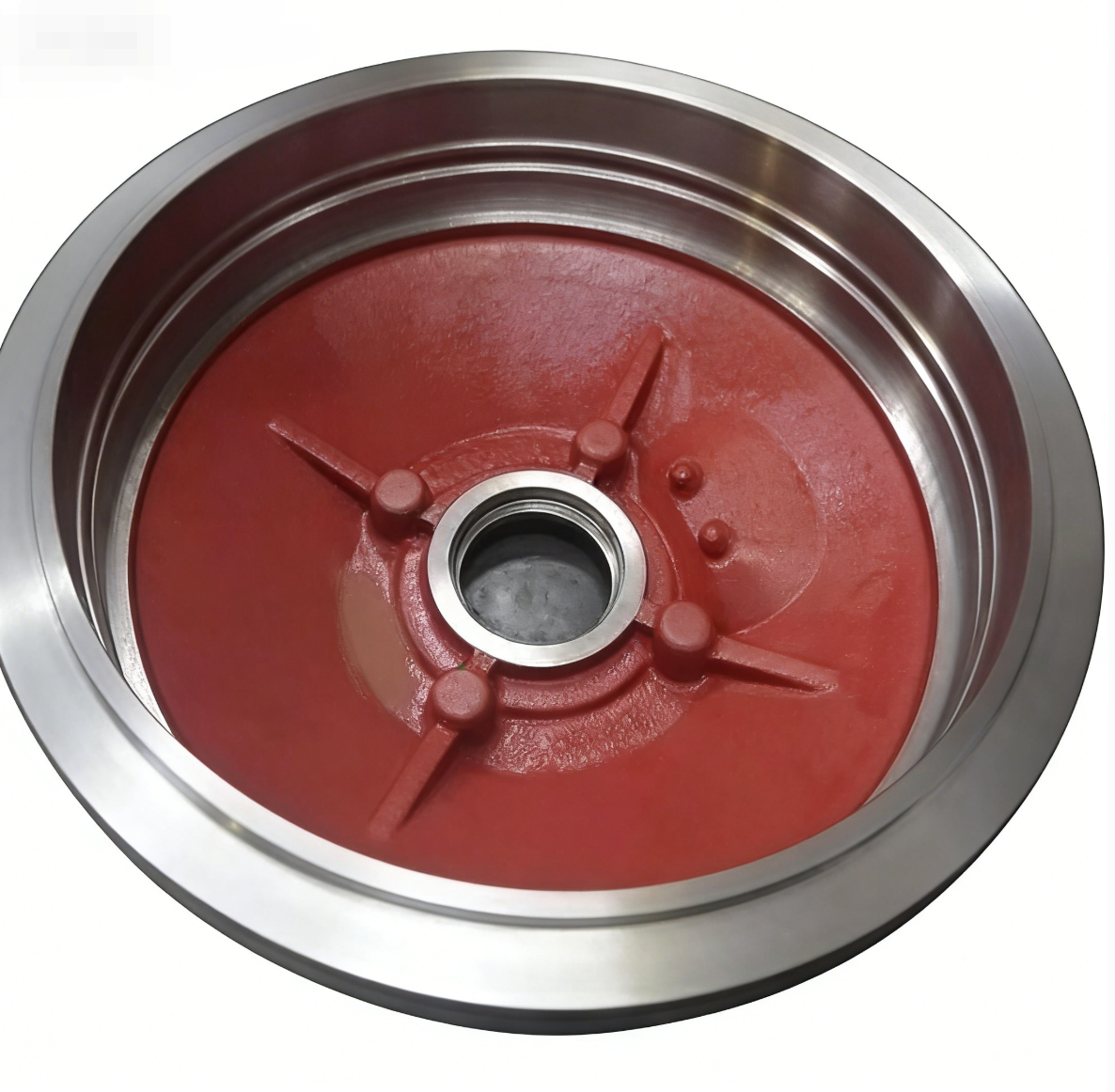

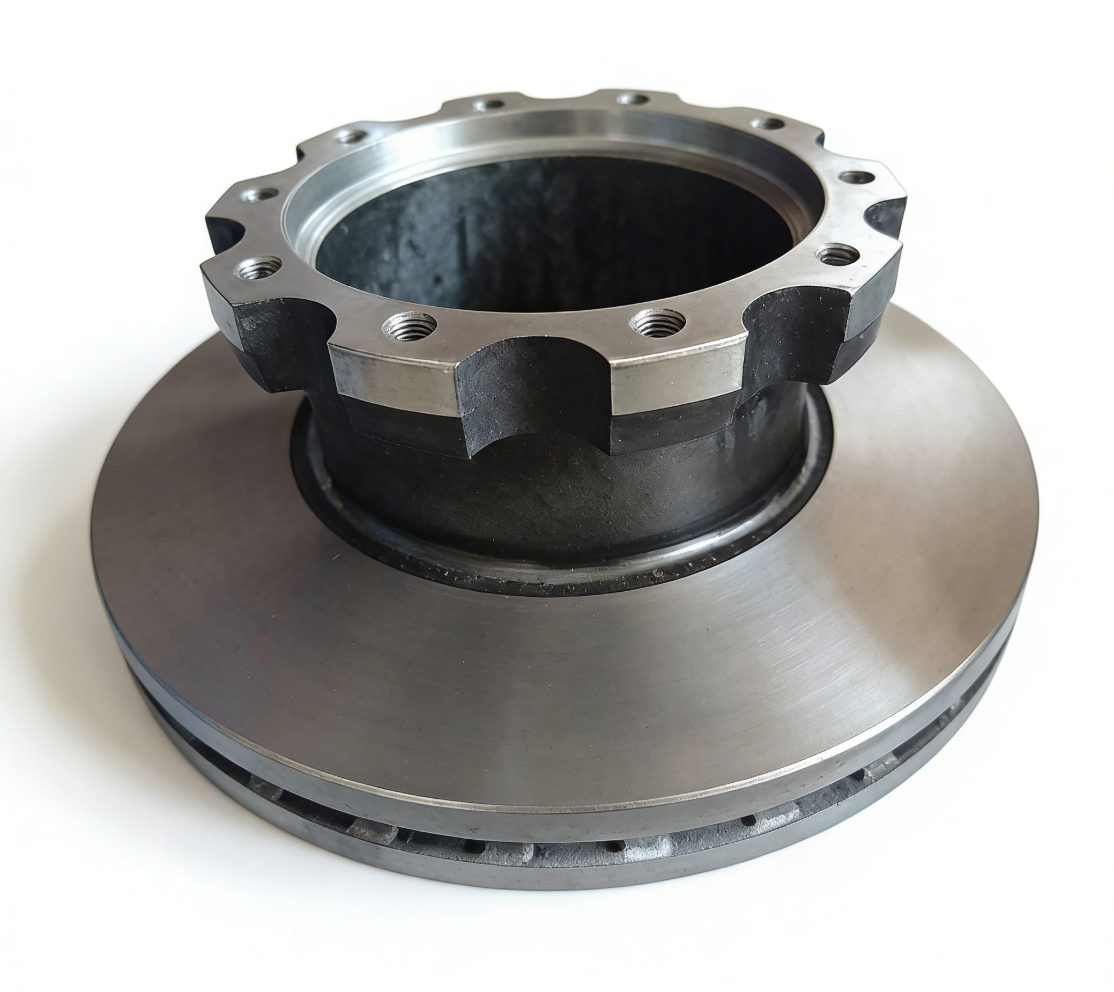

Brake Drum

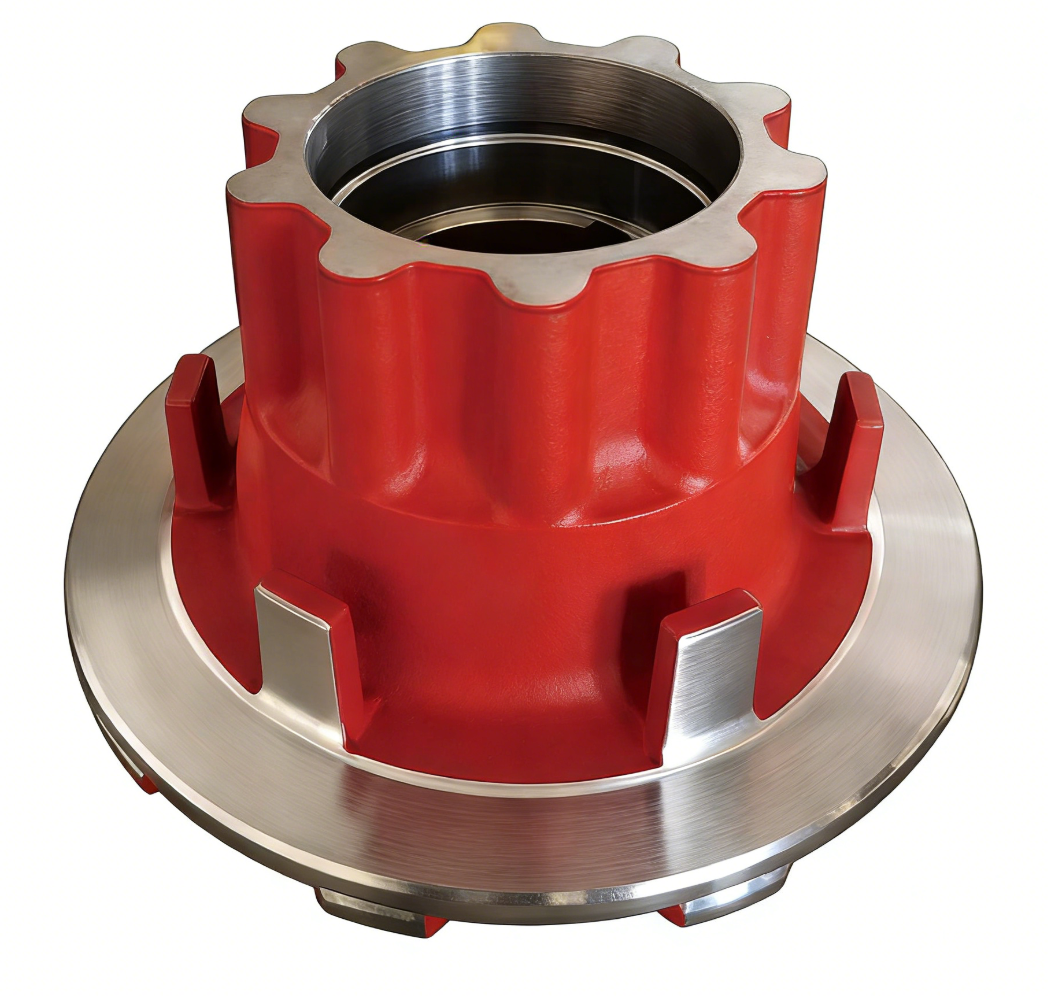

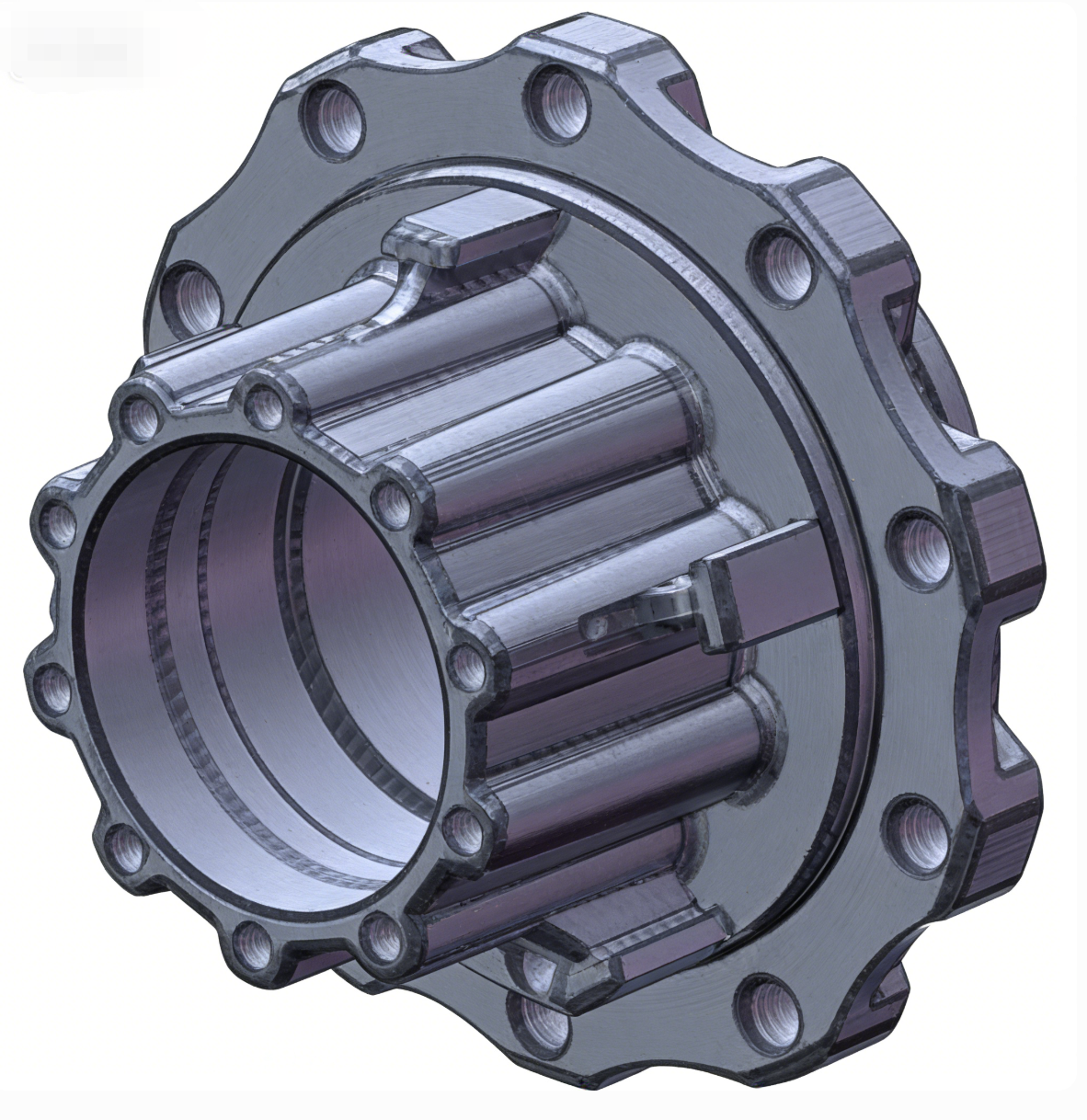

Wheel Hub

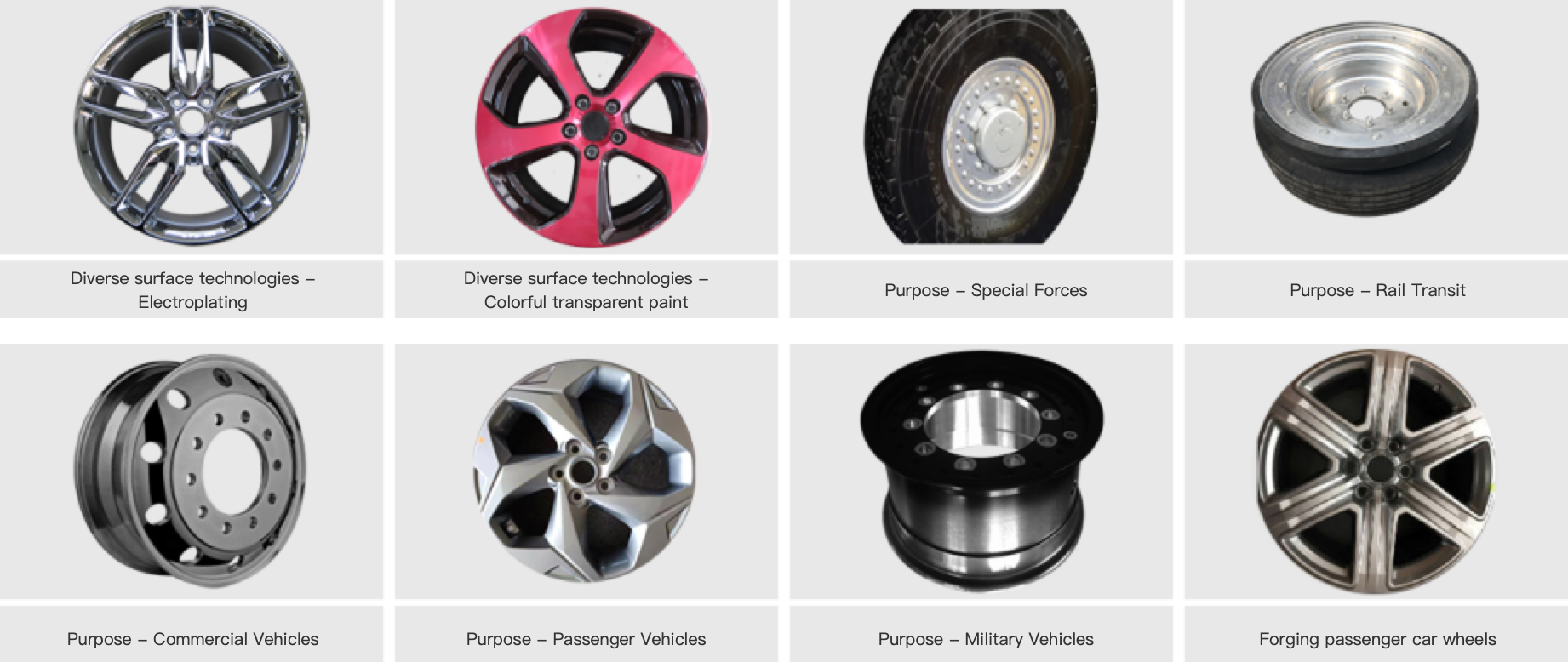

Wheel Rim

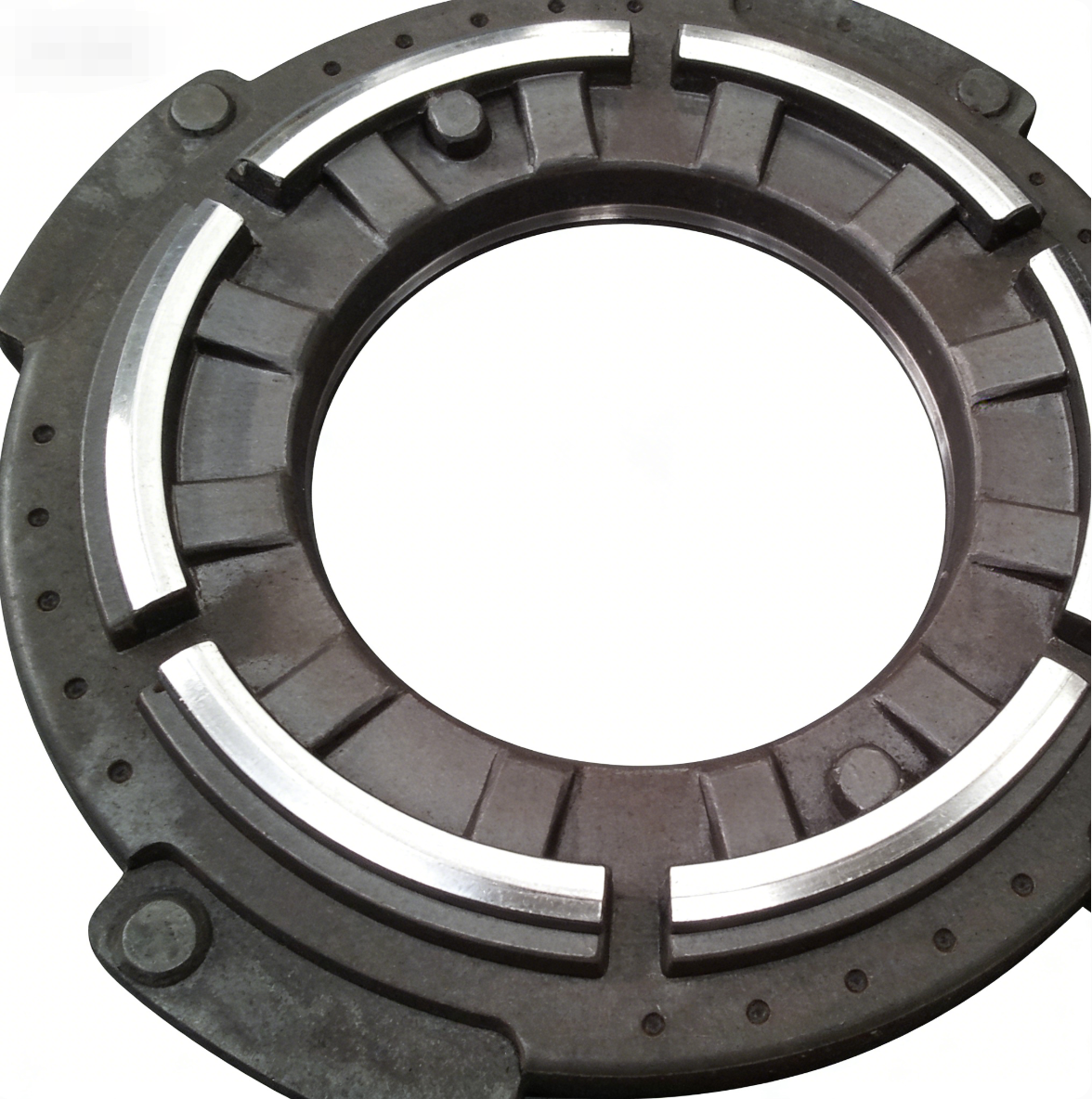

Clutch Pressure Plate Housing

Elevator Sheave Wheel

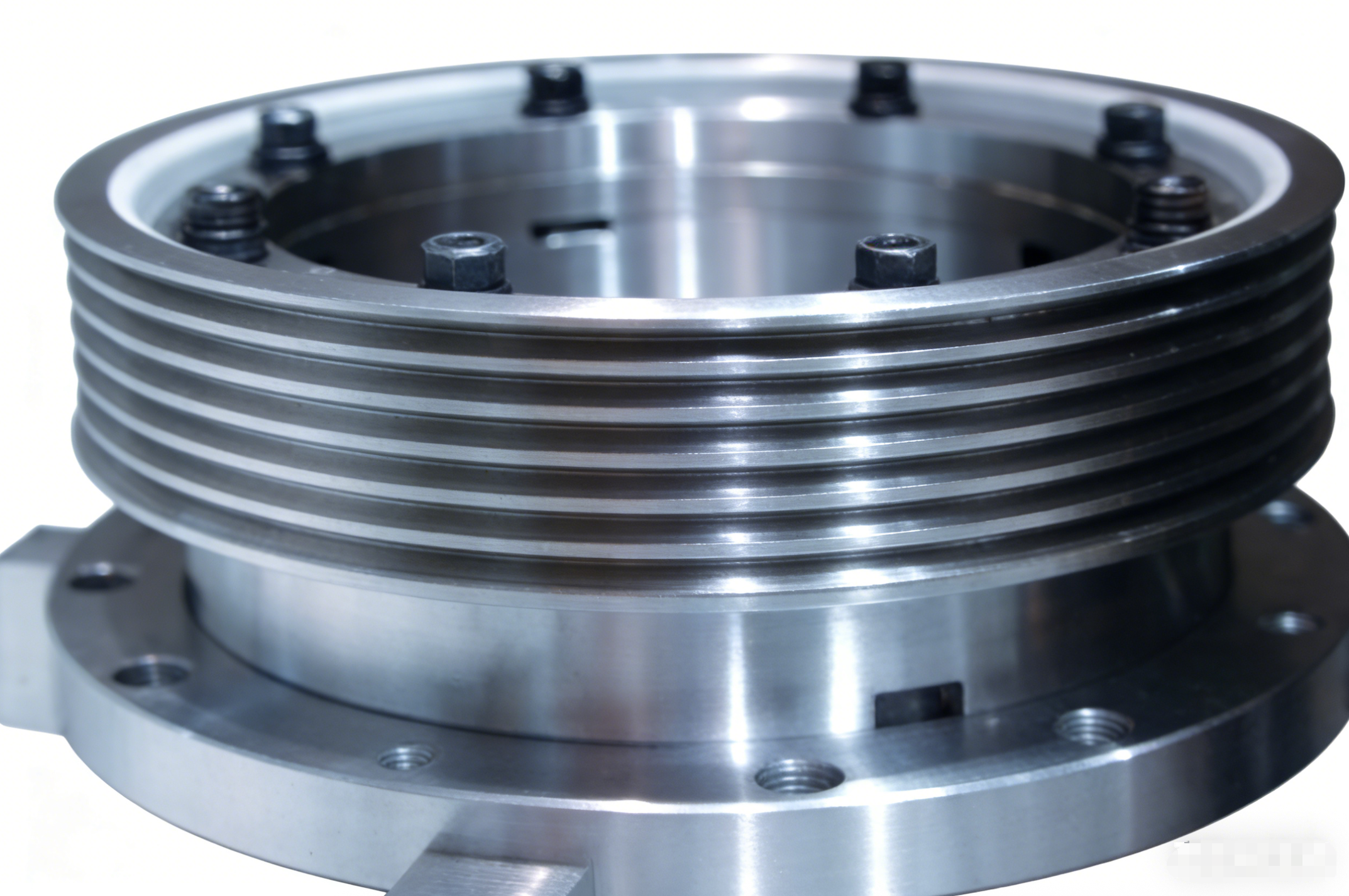

Belt Pulley

Flywheel

Sewing Machine Parts

Bearing Housing

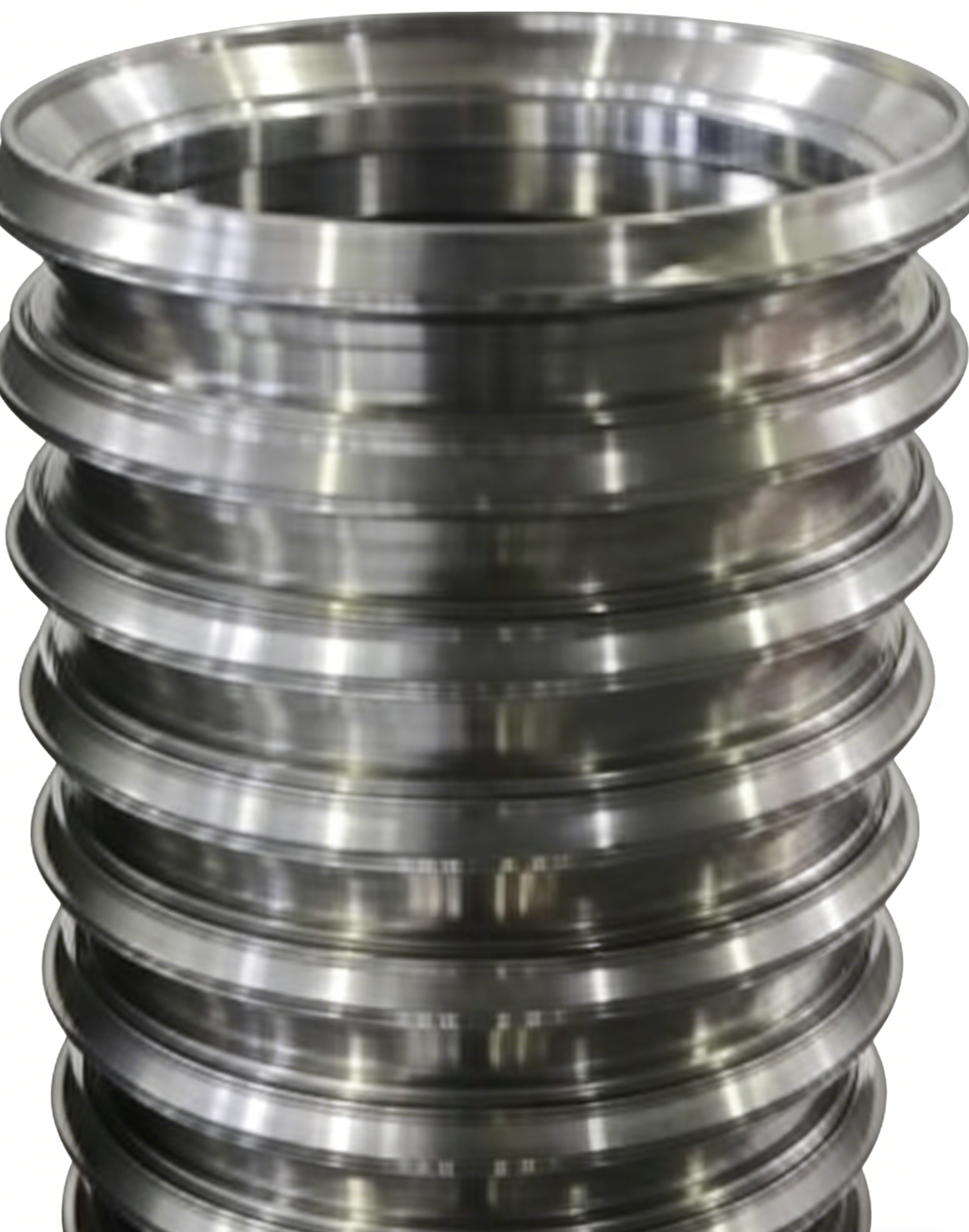

Bearing Ring

Gear

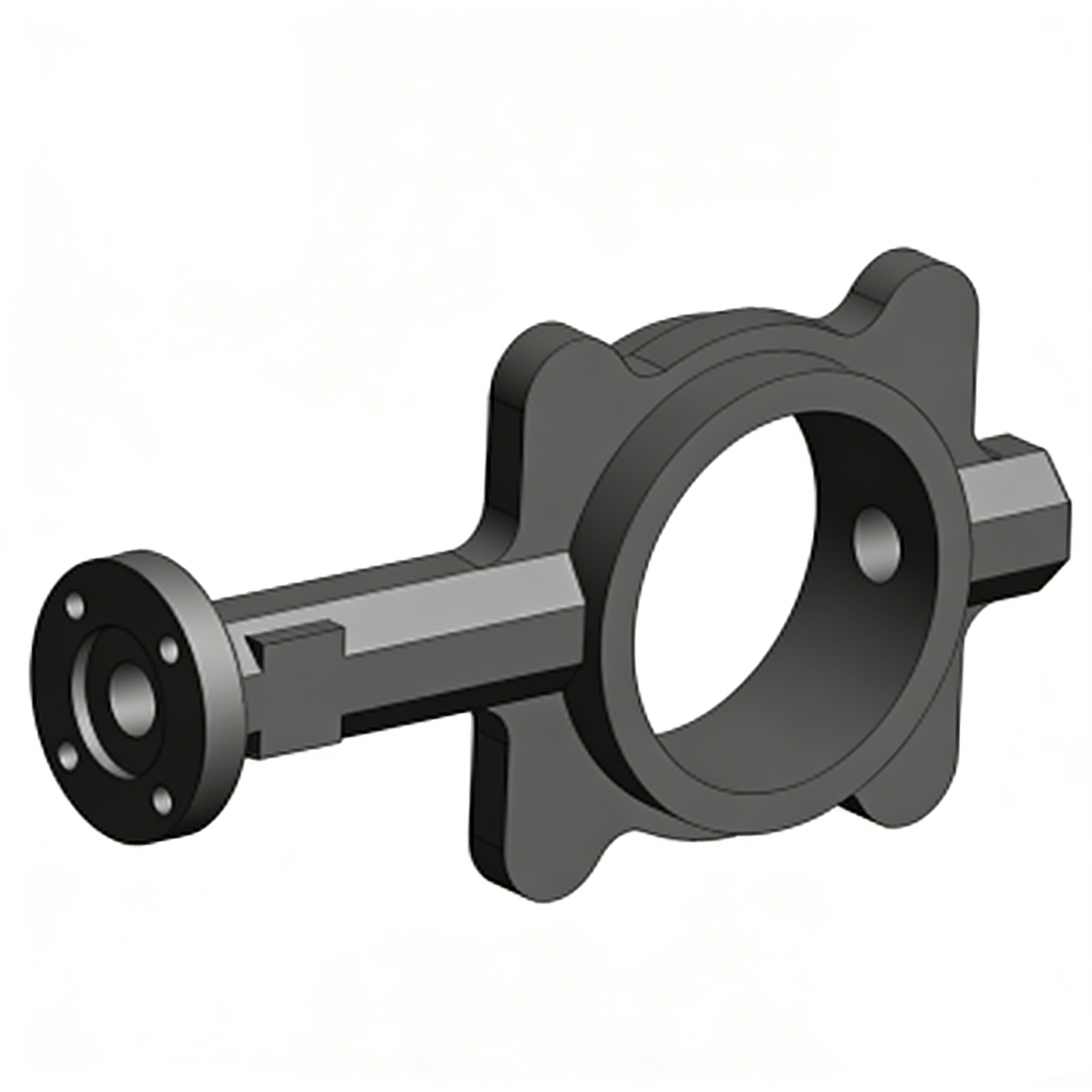

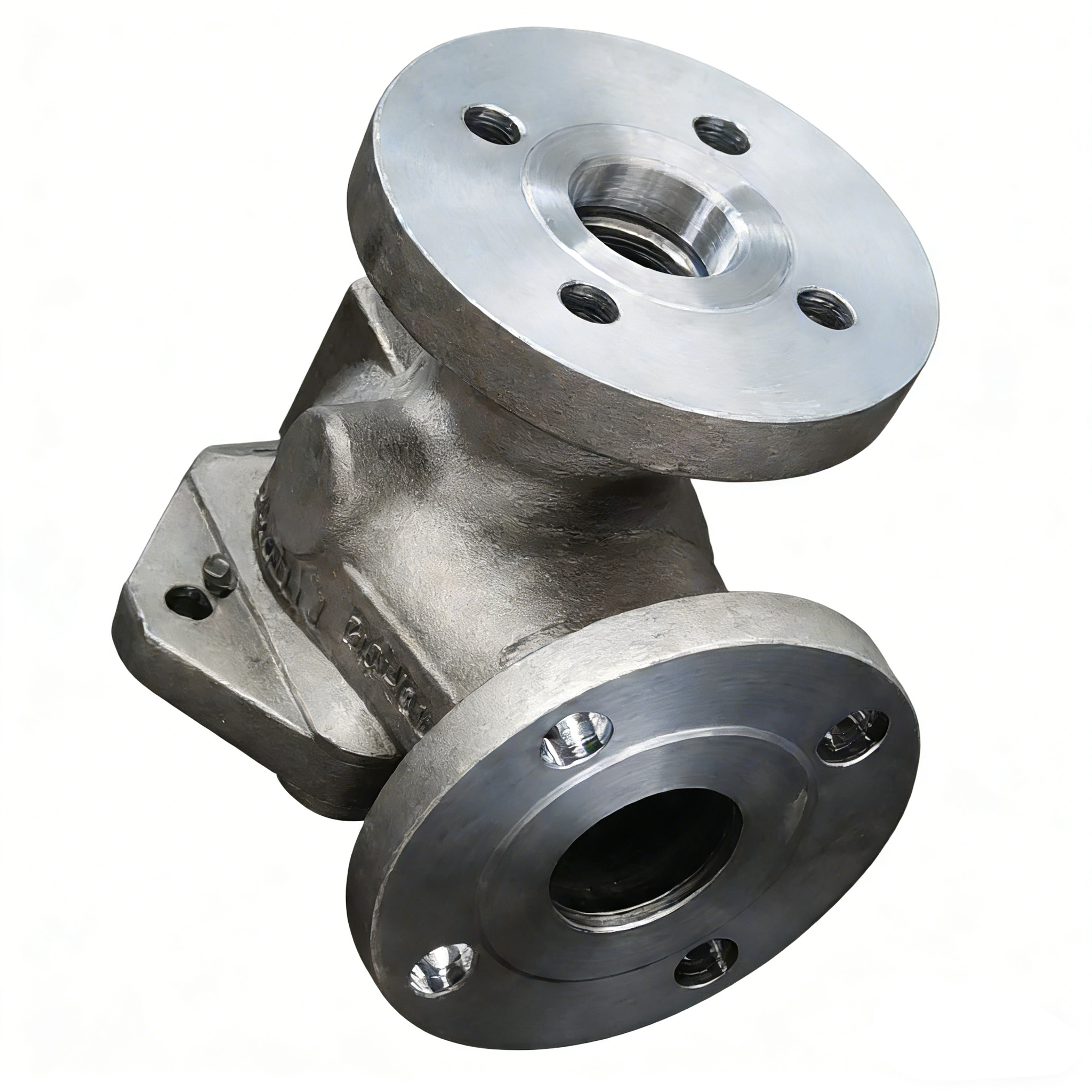

Valve Body

Butterfly Valve

Volute Casing

Turbo Housing

Construction Machinery Gearbox Housing

Construction Machinery Slewing Reducer

Construction Machinery Drive Axle Hub

Wind Power Planet Carrier

Flange Shaft

Internal/External Gear Sleeve

Wind Power Sprocket

Cycloid Wheel

Wind Power Spindle Shaft

ZF Planet Shaft

ZF Sun Shaft

Wind Power Gear

Train Wheel

Bearing Inner Ring

Bearing Ring

Pump Body

Machine Base

Ring Gear

Valve Body

Precision Aluminum Parts

Stainless Steel Valve Body

Titanium Alloy Parts

Nozzle (Copper)

Cast Aluminum Parts

Paper Mill Disc

Integral Impeller
