1. General Machinery Industry: Flanges, gear blanks, pulleys, couplings, motor end covers, bearing housings
2. Construction & Mining Machinery: Excavator hubs, track rollers, hydraulic cylinder bases, crusher rotors, wear-resistant bushings
3. Automotive & Rail Transit: Automotive wheels, aluminum rims, brake drums, brake discs, flywheels, high-speed train brake discs, bogie flanges, railway wheels
4. Energy Equipment (Wind/Hydro/Nuclear Power): Wind turbine flanges, turbine runners, nuclear reactor heads, sealing rings
5. Petrochemical & Explosion-Proof Equipment: Rod connectors, wellhead flanges, valve bodies, explosion-proof motor end covers, sealing shaft sleeves
6. Aerospace & Lightweight Equipment: Aircraft landing gear hubs, engine turbine disk blanks, casings, carbon fiber flanges/shaft sleeves
7. Mold Manufacturing: Plastic mold cores/cavities, bottle molds, tire mold pattern rings, die-casting mold inserts
1. FANUC 0i-TF CNC system;
2. Two-stage gear-driven spindle gearbox;
3. ATC tool magazine (12T / 16T);
4. BT50 tool holder;
5. Hydraulic system;
6. Coolant system;
7. Oil cooling system;
8. Automatic lubrication system;
9. Electrical cabinet air conditioner;
10. Chain-type chip conveyor;
11. External protective sheet metal;
12. Japanese THK high-load linear roller guideways
1. Siemens 828D / GSK GSK988TA CNC system;
2. Upgraded fully enclosed sheet metal;
3. Hydraulic chuck / electromagnetic chuck;
4. High-pressure through-spindle coolant;
5. Automatic door;
6. Paper belt filter;
7. Oil mist collector;
8. Tool breakage detection system;
9. Workpiece probing system;
10. X/Z-axis closed-loop linear scales;
11. ATC tool magazines (24T, 32T, 40T, 60T);
12. Grinding capability
1. Table diameter: 1300 mm;
2. Max. turning diameter: Φ1600 mm;
3. Max. turning height: 1200 mm;
4. Max. workpiece weight: 5000 kg;
5. Spindle power/speed: 37/45 kW @ 300 rpm;
6. Spindle torque: 10700 Nm;
7. ATC tool magazine: 12T;
8. Machine weight: 27000 kg
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC

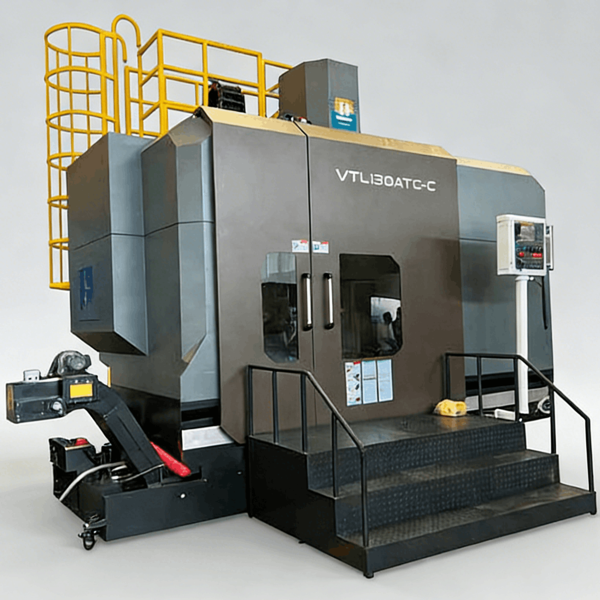

1. FANUC 0i-TF CNC system;
2. Two-stage gear-driven spindle gearbox;
3. ATC tool magazine (12T / 16T);
4. BT50 tool holder;
5. Hydraulic system;
6. Coolant system;
7. Oil cooling system;
8. Automatic lubrication system;
9. Electrical cabinet air conditioner;
10. Chain-type chip conveyor;
11. External protective sheet metal;
12. Japanese THK high-load linear roller guideways;
13. C-axis (CF-axis) – milling function
Same as VTL130ATC optional configuration
1. Table diameter: 1300 mm;
2. Max. turning diameter: Φ1600 mm;
3. Max. turning height: 1200 mm;
4. Max. workpiece weight: 5000 kg;
5. Spindle power/speed: 37/45 kW @ 300 rpm;
6. Spindle torque: 10700 Nm;
7. ATC tool magazine: 16T;
8. C-axis (CF-axis) – milling function;
9. Machine weight: 28000 kg
Includes secondary milling spindle
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 1600 mm;
2. Max. turning diameter: Φ2000 mm;
3. Max. turning height: 1400 mm;
4. Max. workpiece weight: 8000 kg;
5. Spindle power/speed: 45/55 kW @ 250 rpm;
6. Spindle torque: 20800 Nm;
7. ATC tool magazine: 12T;
8. Machine weight: 34000 kg
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC+C standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 1600 mm;
2. Max. turning diameter: Φ2000 mm;
3. Max. turning height: 1400 mm;
4. Max. workpiece weight: 8000 kg;
5. Spindle power/speed: 45/55 kW @ 250 rpm;
6. Spindle torque: 20800 Nm;
7. ATC tool magazine: 16T;
8. C-axis (CF-axis) – milling function;
9. Machine weight: 35000 kg
Includes secondary milling spindle
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 2000 mm;
2. Max. turning diameter: Φ2500 mm;
3. Max. turning height: 1800 mm;
4. Max. workpiece weight: 12000 kg;
5. Spindle power/speed: 65/75 kW @ 200 rpm;
6. Spindle torque: 35000 Nm;
7. ATC tool magazine: 12T;
8. Machine weight: 47000 kg
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC+C standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 2000 mm;
2. Max. turning diameter: Φ2500 mm;
3. Max. turning height: 1800 mm;
4. Max. workpiece weight: 12000 kg;
5. Spindle power/speed: 65/75 kW @ 200 rpm;
6. Spindle torque: 35000 Nm;
7. ATC tool magazine: 16T;
8. C-axis (CF-axis) – milling function;
9. Machine weight: 48000 kg
Includes secondary milling spindle
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 2500 mm;
2. Max. turning diameter: Φ3000 mm;
3. Max. turning height: 1800 mm;
4. Max. workpiece weight: 15000 kg;
5. Spindle power/speed: 65/75 kW @ 150 rpm;
6. Spindle torque: 67000 Nm;
7. ATC tool magazine: 16T;
8. Machine weight: 55000 kg
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC+C standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 2500 mm;
2. Max. turning diameter: Φ3000 mm;
3. Max. turning height: 1800 mm;
4. Max. workpiece weight: 15000 kg;
5. Spindle power/speed: 65/75 kW @ 150 rpm;
6. Spindle torque: 67000 Nm;
7. ATC tool magazine: 16T;
8. C-axis (CF-axis) – milling function;
9. Machine weight: 55000 kg
Includes secondary milling spindle
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 3000 mm;
2. Max. turning diameter: Φ3500 mm;
3. Max. turning height: 2000 mm;
4. Max. workpiece weight: 20000 kg;
5. Spindle power/speed: 65/75 kW @ 120 rpm;
6. Spindle torque: 67000 Nm;
7. ATC tool magazine: 16T;
8. Machine weight: 64000 kg
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
Same as VTL130ATC
Same as VTL130ATC+C standard configuration
Same as VTL130ATC optional configuration
1. Table diameter: 3000 mm;
2. Max. turning diameter: Φ3500 mm;
3. Max. turning height: 2000 mm;
4. Max. workpiece weight: 20000 kg;
5. Spindle power/speed: 65/75 kW @ 120 rpm;
6. Spindle torque: 67000 Nm;
7. ATC tool magazine: 16T;
8. C-axis (CF-axis) – milling function;
9. Machine weight: 65000 kg
Includes secondary milling spindle
High coaxiality control for large components; nuclear components require non-damaging machining compliant with pressure standards
