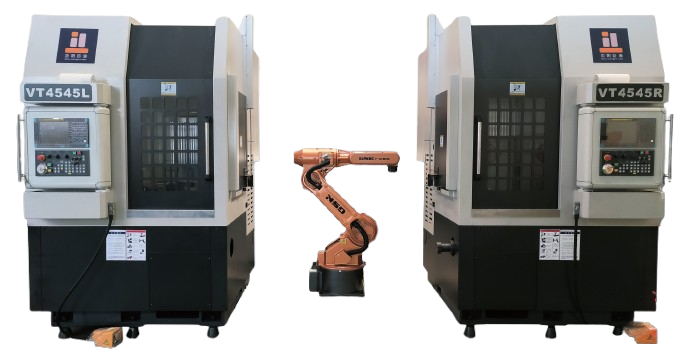

CNC Vertical Turning Lathe
Product Introduction
Product Introduction
- Easy loading and unloading for large, thin, heavy and irregular shaped workpieces
- Due to workpiece self-weight, workpiece and fixture ensure tight fit for high precision and stable machining, with short and stable loading/unloading time
- No elliptical machining caused by gravity inertia of horizontal lathe chucking, achieving near-perfect roundness
- Easy and stable machining of irregular workpieces that are difficult to clamp, with simplified fixture structure reducing manufacturing costs

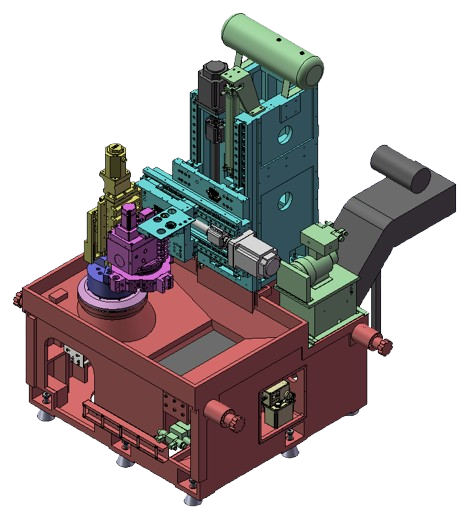

- Near-square high-rigidity machine design minimizes thermal deformation and vibration impact
- Increased chip discharge angle with stainless steel plates for better chip removal and preventing bed thermal deformation
- Ergonomic assembly line design for easy workpiece handling
- Occupies only 1/2 the space of horizontal lathes
- Multi-function setup, optimal operation, lowest investment cost

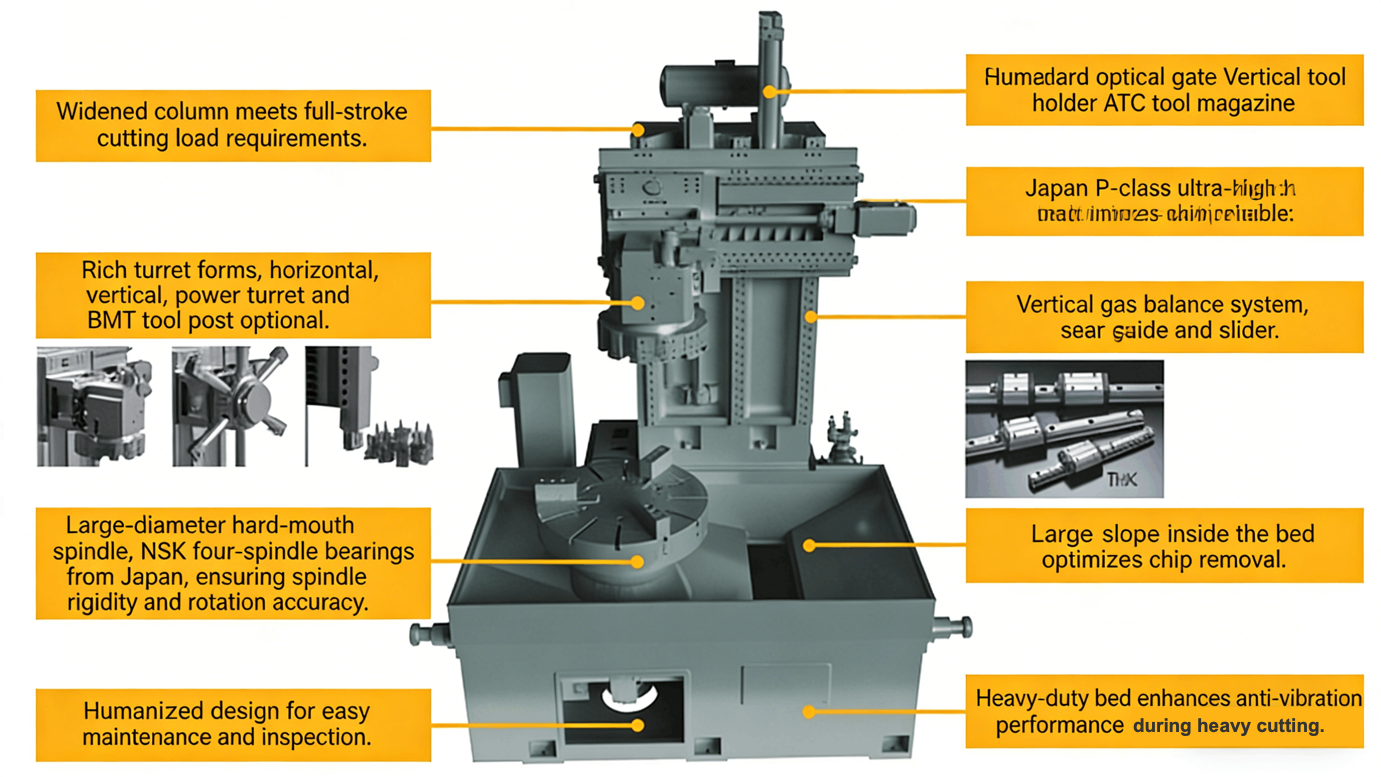

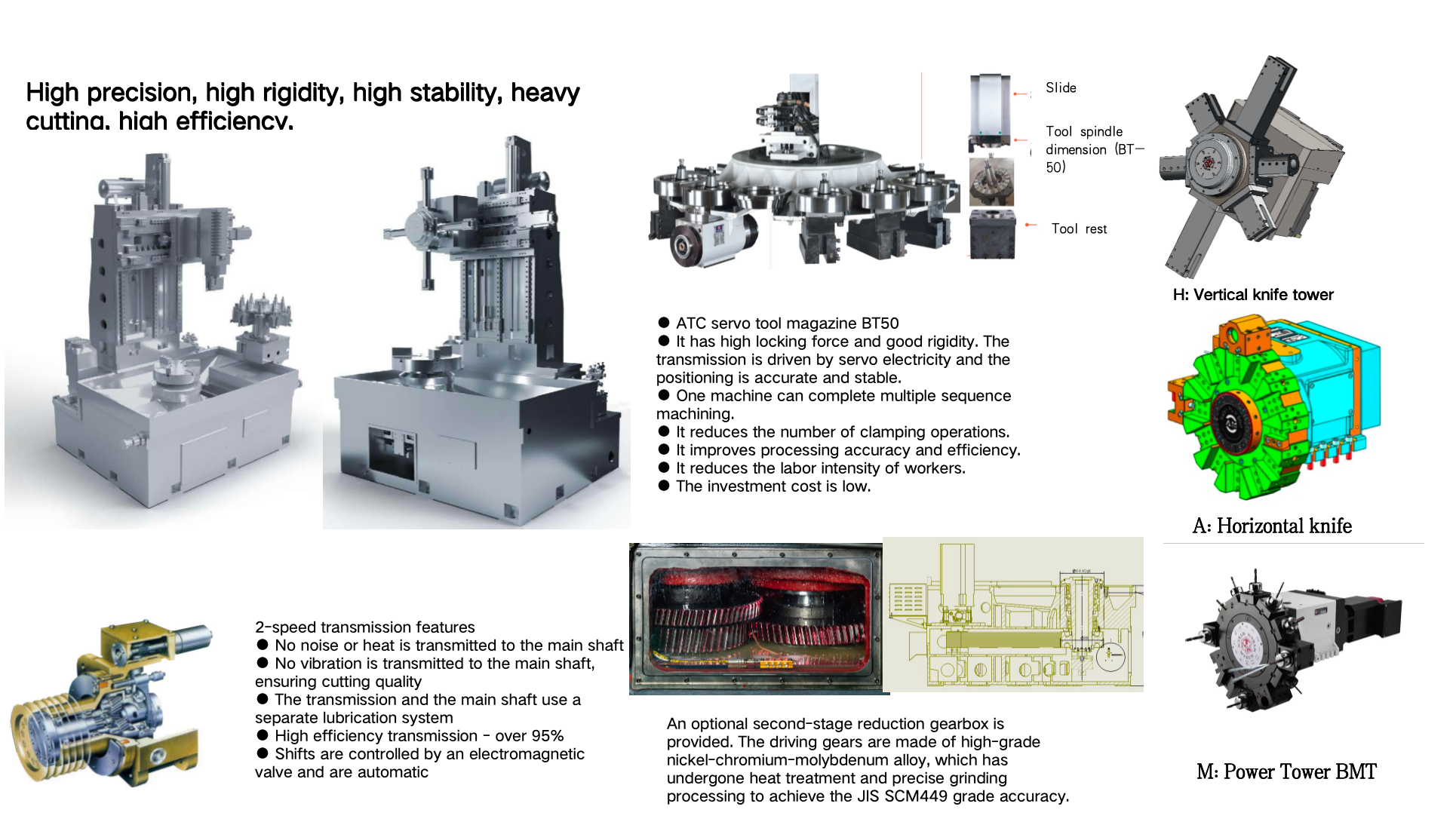

Features
High Precision, High Rigidity, High Stability, Heavy-duty Cutting, High Efficiency
2-Speed Gearbox Features
- No noise or heat transfer to spindle
- No vibration transfer to spindle, ensuring cutting quality
- Separate lubrication system for gearbox and spindle
- High efficiency transmission --- over 95%
- Gear shifting controlled by solenoid valve, automatic shifting
Two-Stage Reduction Gearbox
Drive gears made of high-grade nickel-chromium-molybdenum alloy, heat-treated and precision ground to JIS SCM449 accuracy level
ATC Servo Tool Magazine BT50 Features
- Large clamping force, good rigidity, servo motor driven for accurate positioning and stability
- Multiple turning operations completed in one machine
- Reduces clamping times
- Improves machining accuracy and efficiency
- Reduces worker labor intensity
- Low investment cost
Turret Types
Specifications
VL Series Specifications
| Item | Specifications | Unit | VL100 | VL120 | VL160 | |
|---|---|---|---|---|---|---|
| Machining | 3-Jaw Hydraulic Chuck | inch/mm | 32/φ810 | 40/φ1000 | ||
| Optional | Chuck Face Diameter | mm | φ1000 | φ1200 | φ1400 | |
| Chuck Type | Power Single 4-Jaw | Power Single 4-Jaw | Power Single 4-Jaw | |||
| Max Rotation Diameter | mm | φ1300 | φ1400 | φ1800 | ||
| Max Cutting Diameter | mm | φ1000 | φ1200 | φ1600 | ||
| Max Cutting Height | mm | 1000 | 1000 | 1000 | ||
| Max Workpiece Weight | kg | 1500 | 1500 | 1500 | ||
| Travel | X-Axis Travel (L/R) | mm | 640 | 840 | 1050 | |
| Z-Axis Travel (U/D) | mm | 1000 | 1000 | 1000 | ||
| Spindle | Spindle Servo Motor Power | kw | 30/37 | 30/37 | 30/37 | |
| Spindle Speed | rpm | 500 | 400 | 400 | ||
| Spindle Torque (Belt) | Nm | 2150 | 2865 | 2865 | ||
| Optional Reducer | 2-Speed | Auto 2-Speed | Auto 2-Speed | Auto 2-Speed | ||
| Reduction Ratio | 1:5.5 | 1:5.5 | 1:5.5 | |||
| Max Torque | Nm | 4020 | 4020 | 4020 | ||
| Spindle Nose | A2-15 | A2-15 | A2-15 | |||
| Spindle Bearing Diameter | mm | φ260 | φ260 | φ260 | ||
| Feed | X-Axis Rapid Feed | m/min | 18 | 18 | 18 | |
| Z-Axis Rapid Feed | m/min | 16 | 16 | 16 | ||
| Turret | Turret Type/Tool Qty | Pcs | A:Horiz/8-12 H:Vert/4,5,6 ATC Magazine:10T | A:Horiz/8-12 H:Vert/4,5,6 ATC Magazine:10T | A:Horiz/8-12 H:Vert/4,5,6 ATC Magazine:10T | |
| Tool Size | 32×32 φ50 | 32×32 φ50 | 32×32 φ50 | |||
| Control System | Control System | FANUC-0i-TF Plus | ||||
| Spindle Servo Motor | Kw | 30/37 | 30/37 | 30/37 | ||
| X-Axis Servo Motor | Kw | 3 | 3 | 3 | ||
| Z-Axis Servo Motor | Kw | 3 | 3 | 3 | ||
| Other | Power Requirement | KVA | 50 | 50 | 50 | |
| Machine Size (L×W×H) | m | 2.6×3.8×3.6 | 2.8×3.8×3.6 | 2.8×3.8×3.6 | ||
| Machine Weight | Kg | 18000 | 19000 | 23000 | ||
| Enclosure+Chip Conveyor | Machine Enclosure+Chip Conveyor | |||||
| Machine Accuracy | mm | Pos Accuracy:±0.005 Repeat Accuracy±0.003 | ||||
CNC Vertical Lathe
- VL100A—Horiz Turret 12T
- VL120A—Horiz Turret 12T
- VL160A—Horiz Turret 12T
- VL100H—Vert Turret 4T/5T
- VL160H—Vert Turret 4T/5T
- VL100ATC—ATC Magazine 8T/10T
- VL120ATC—ATC Magazine 8T/10T
- VL160ATC—ATC Magazine 8T/10T
Vertical Turning Center
- VL100M—Power Turret BMT-42T
- VL120M—Power Turret BMT-42T
- VL100ATC+C—ATC Magazine 8T/10T
- VL120ATC+C—ATC Magazine 8T/10T
- VL160ATC+C—ATC Magazine 8T/10T
Wide-Range Spindle Servo Motor
The main drive is powered by a wide-range spindle servo motor with high torque output, excellent heavy-duty cutting performance, meeting various cutting requirements of modern vertical lathes.
Configuration
Standard Configuration List
- FANUC-0i-TF Plus
- IP5 Operation Panel
- Spindle Servo Motor
- 3-Jaw Hydraulic Chuck
- Horizontal 12-Station Turret
- Hydraulic System
- Cabinet Air Conditioner
- LED Work Light
- LED Tri-Color Warning Light
- THK/ Taiwan Rails & Screws
- Centralized Auto Lubrication
- Coolant System
- Chip Conveyor
- Machine Enclosure
- Maintenance Tools
- Technical Documents
- Tool Box
Optional Configuration
Optional Configuration List
- SIEMENS828D/ GSK988TA Control
- H: 4/5/6-Station Hydraulic Vert Turret
- AS: Servo Face Cutting Tool
- M: Power Turret BMT
- 2-Speed Gearbox
- Auto Door
- Oil-Water Separator
- Oil Mist Collector
- Full Enclosure
- Processing Monitor Window
- X/Z Axis Box Ways
- Tool Detection System
- Workpiece Measurement
- X/Z Axis Linear Scales
- Spindle Motor Upgrade
- Center Tailstock
- Z-Axis Extended Travel
- Column Height Increase
- Grinding Function
- Coolant Chiller
- Paper Filter
- ATC Magazine 8T/10T

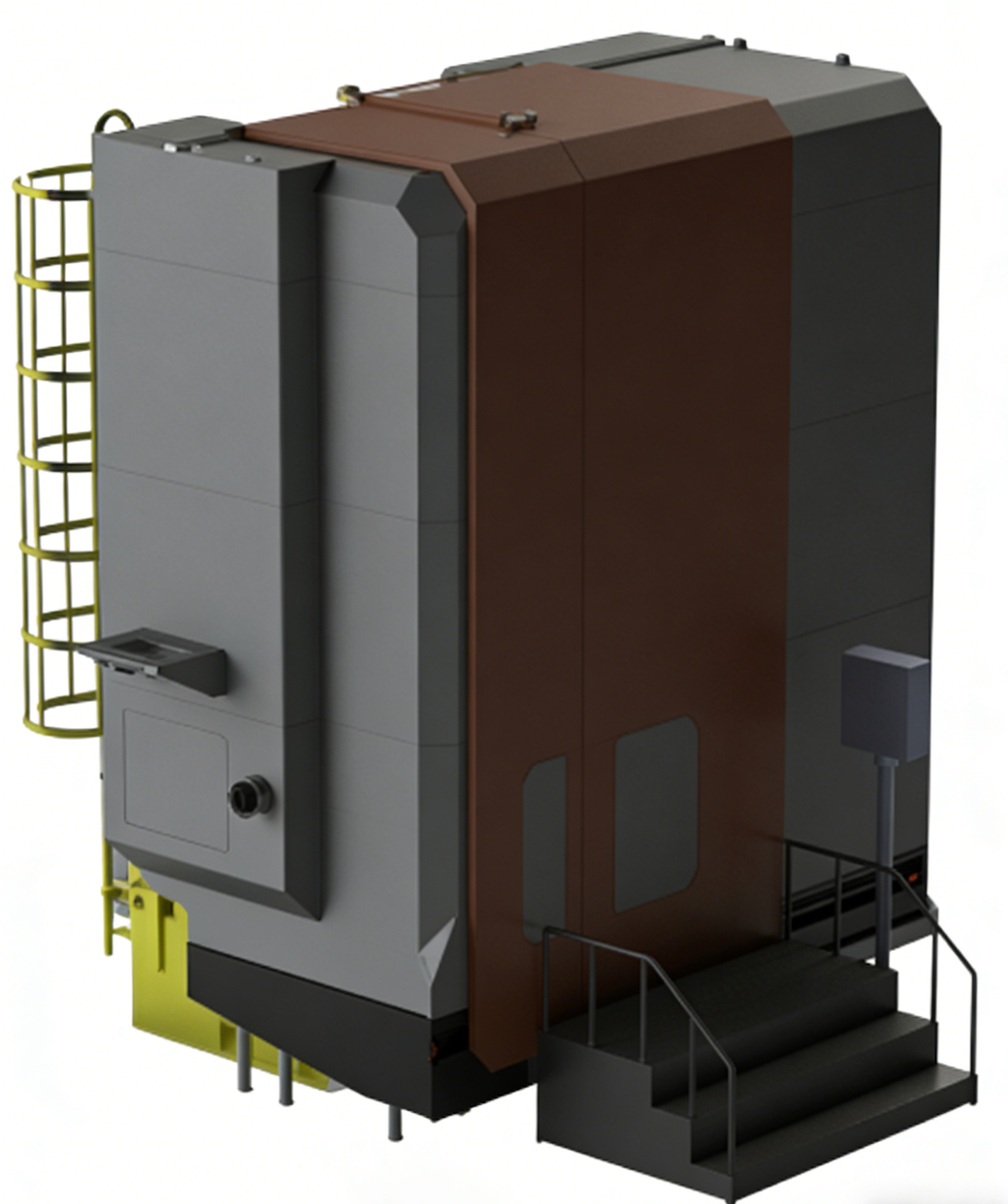

Full Protective Enclosure (Sealed)
Fully enclosed protection design effectively prevents coolant splashing and dust dispersion, ensuring operational safety and extending equipment service life.
Optional Gallery
Optional Configuration Gallery
Applications
Typical Application Industries
1. General Machinery
Flanges, Gear Blanks, Belt Pulleys, Couplings, Motor End Caps, Bearing Housings
2. Construction & Mining Machinery
Excavator Hubs, Track Wheels, Hydraulic Cylinder Bases, Crusher Rotors, Wear Liners

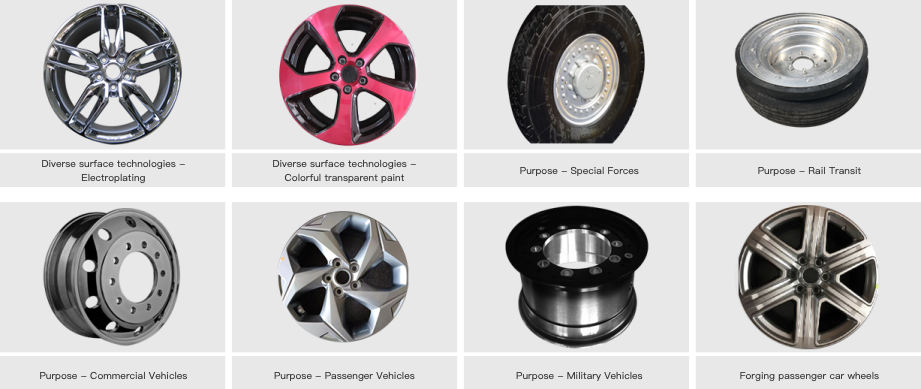

3. Automotive & Rail Transit
Auto Wheels, Aluminum Wheels, Brake Drums, Brake Discs, Flywheels, High-Speed Rail Brake Discs, Bogie Flanges, Train Wheels
4. Energy Equipment
Wind Power Flanges, Hydro Turbine Rotors, Nuclear Head Covers, Sealing Rings
5. Petrochemical & Explosion-Proof
Rod Joints, Wellhead Flanges, Valve Bodies, Explosion-Proof Motor End Caps, Sealing Sleeves
6. Aerospace & Lightweight
Aircraft Landing Gear Hubs, Engine Turbine Disc Blanks, Casings, Carbon Fiber Flanges/Sleeves
7. Mold Manufacturing
Plastic Mold Cores/Cavities, Bottle Molds, Tire Mold Patterns, Die Casting Molds

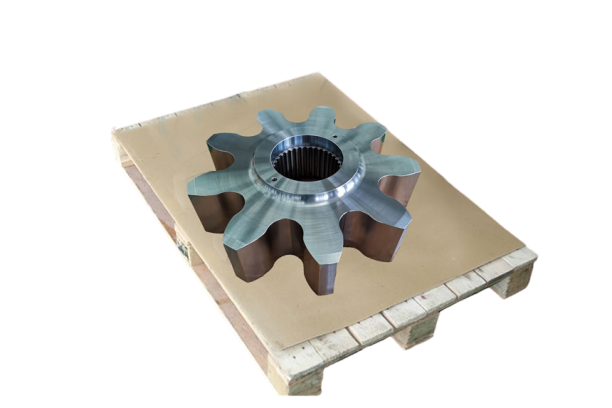

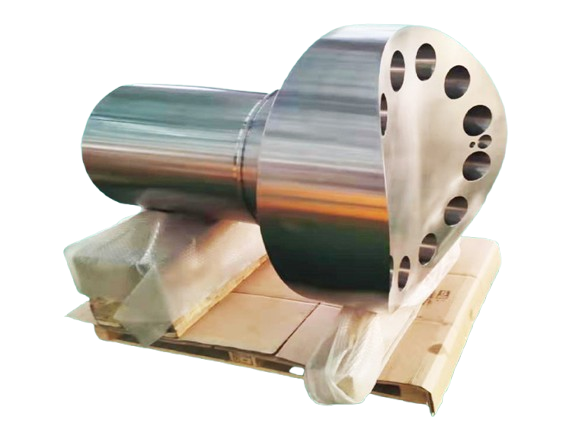

Workpieces

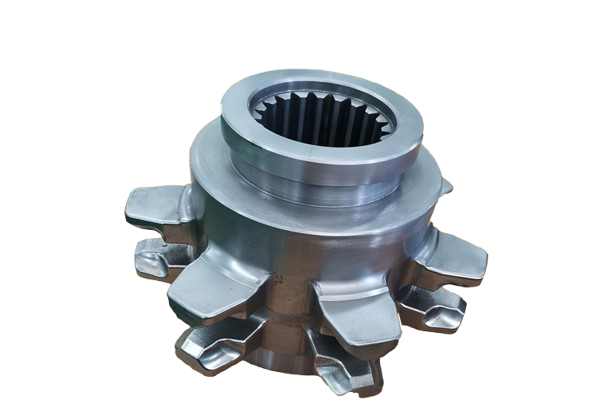

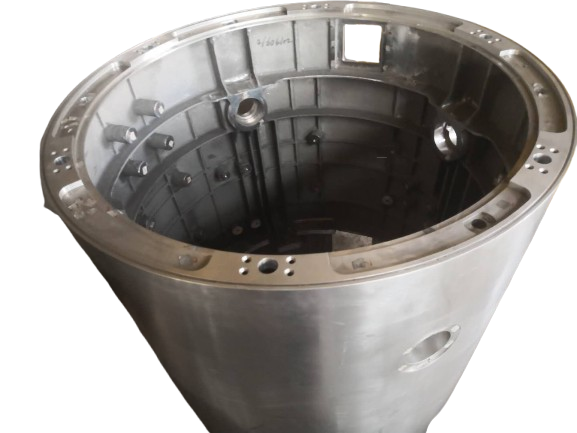

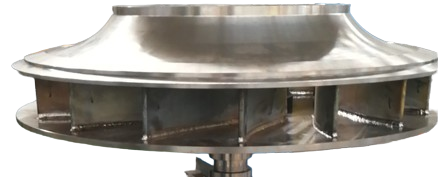

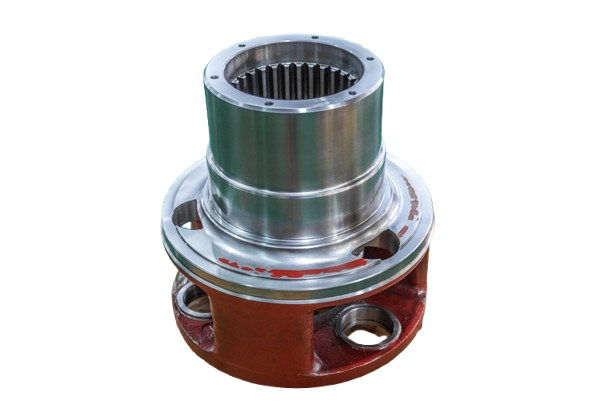

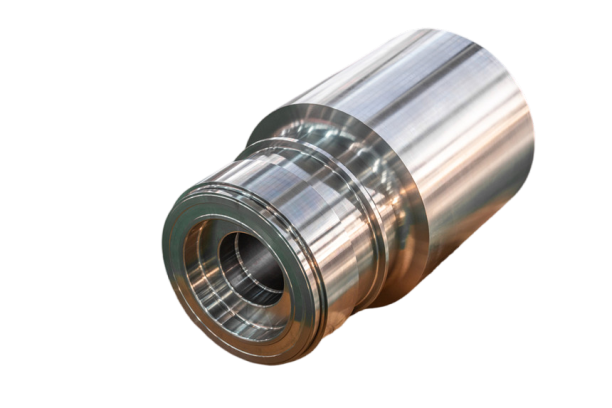

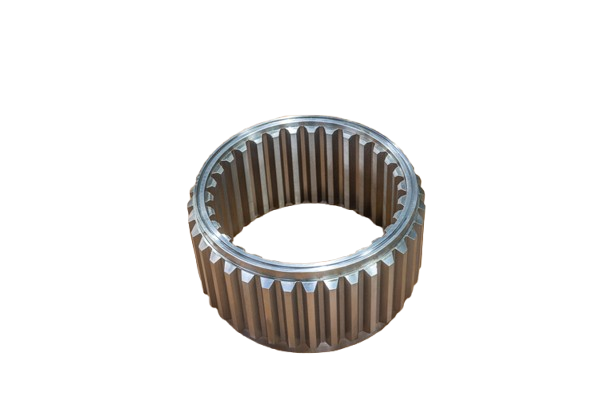

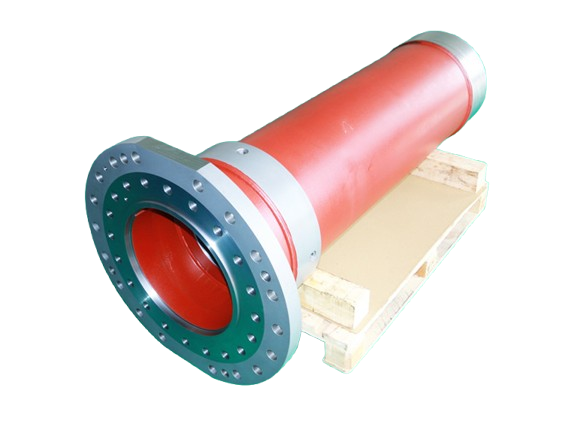

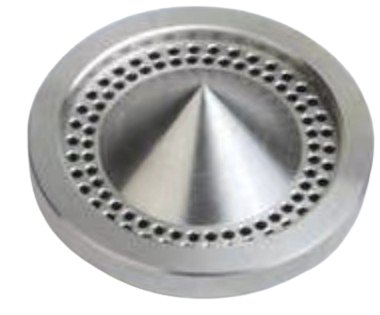

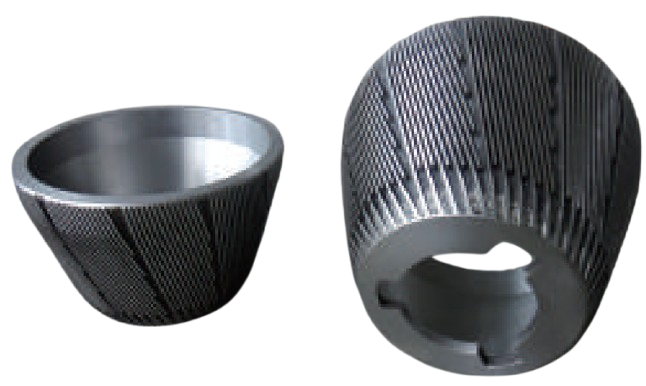

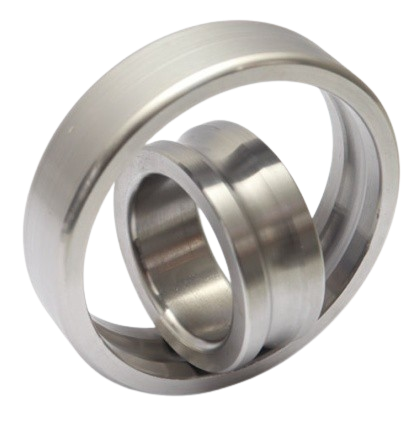

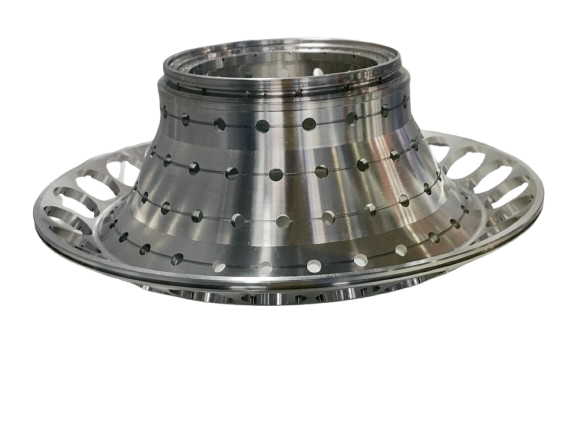

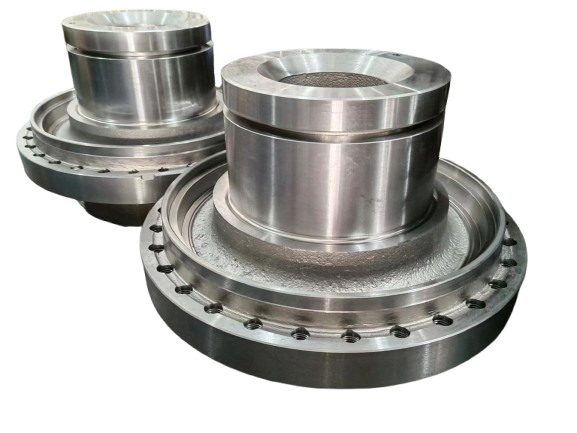

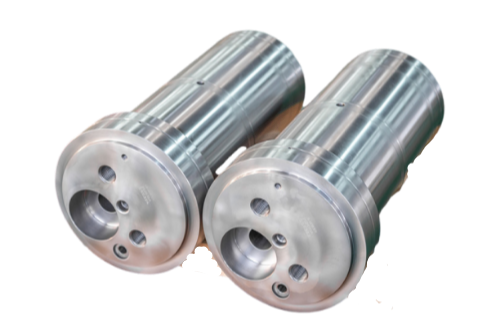

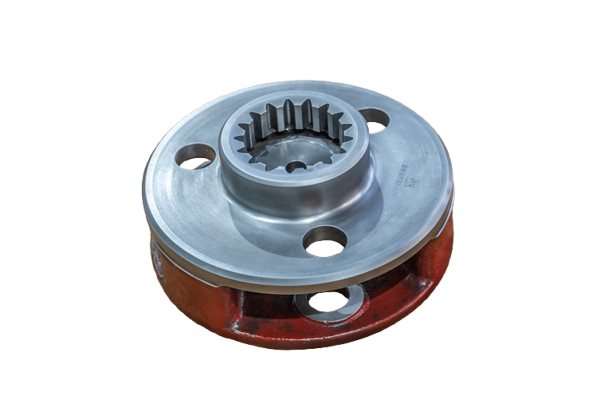

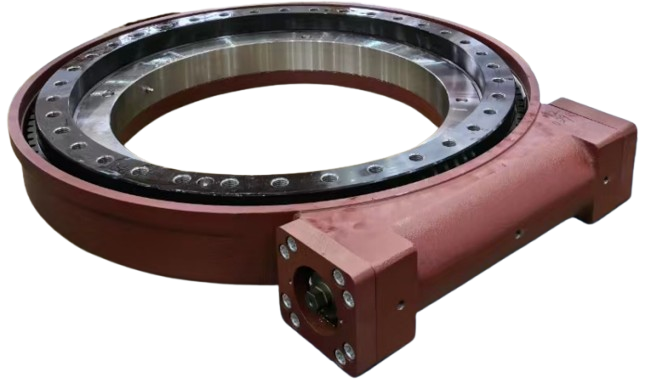

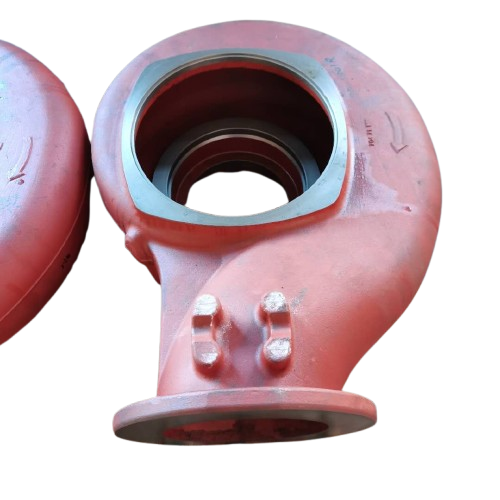

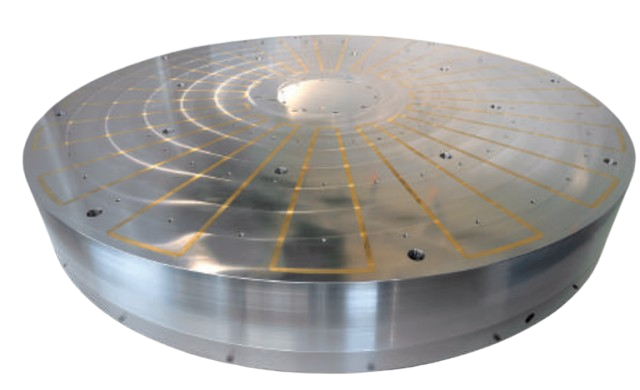

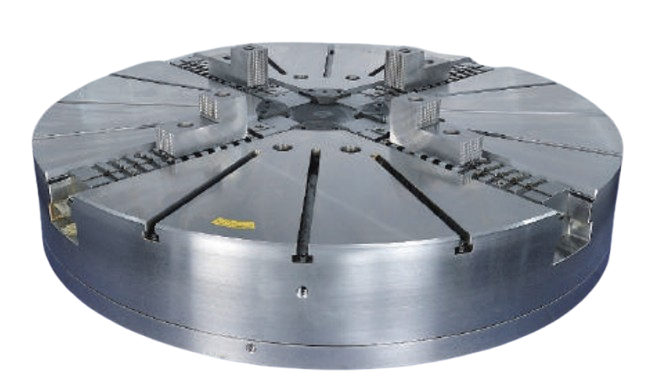

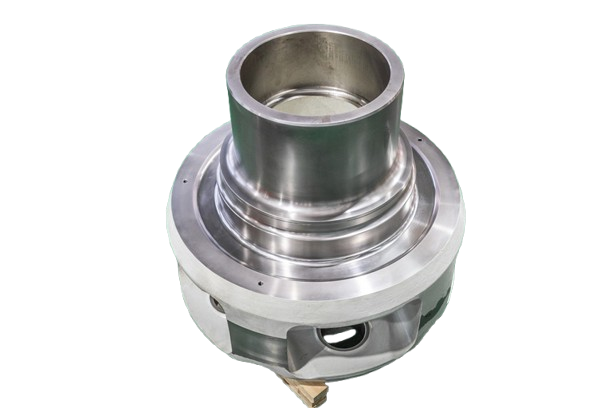

Typical Workpieces
