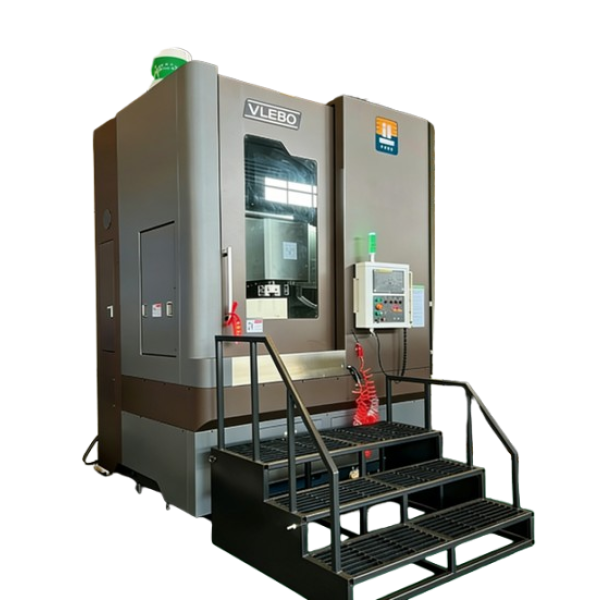

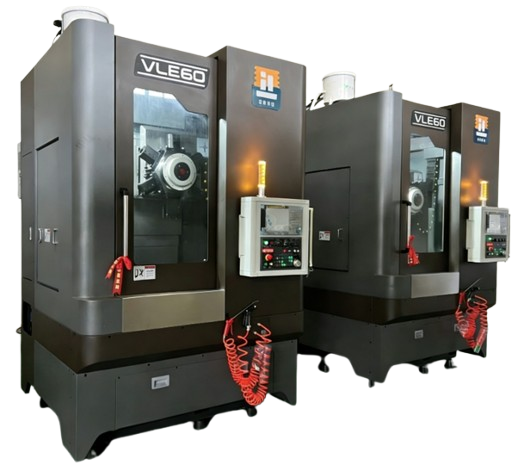

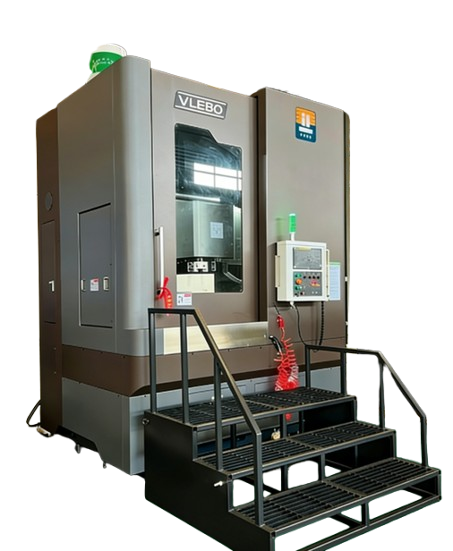

CNC VERTICAL LATHE

High Cost-Performance CNC Vertical Lathe
VLE50、VLE60、VLE80

Avoid oval machining caused by gravity, achieving near-perfect roundness precision. High precision, high stability, high cost-performance.

Φ510 / Φ650 / Φ850

Max Cutting Diameter

473 / 860 / 1289

Spindle Torque

1600 / 1200 / 800

Spindle Speed

12T / 4-6T / 12T

Turret Positions

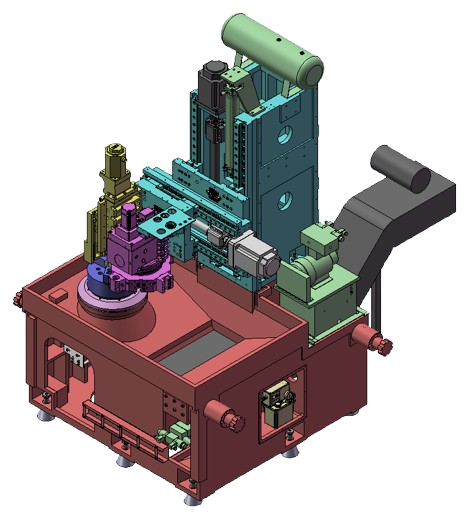

Product Introduction

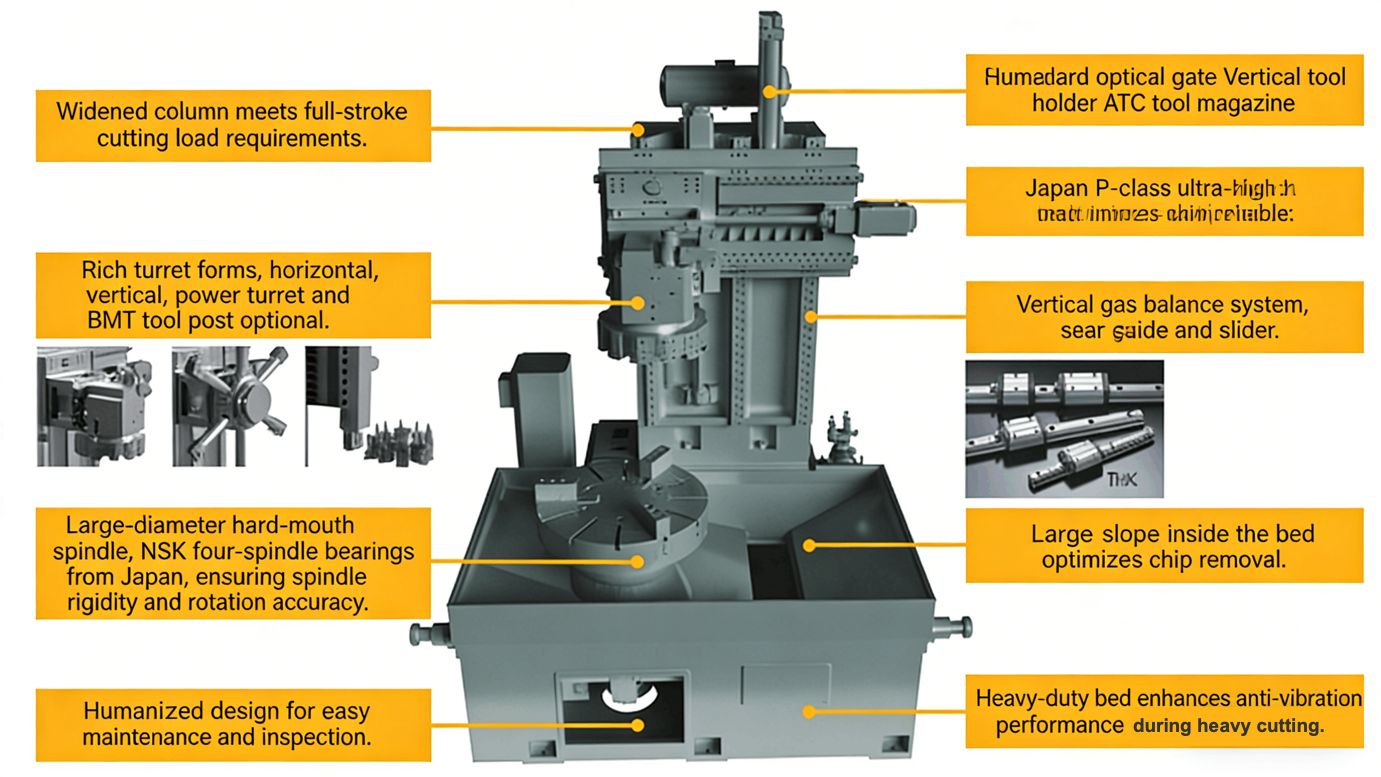

Features

1.Process large, thin, heavy, and irregularly shaped workpieces with easy loading/unloading

2.Workpiece self-weight ensures tight contact with fixtures, achieving high precision and stable machining results

3.No oval machining caused by self-weight inertia as in horizontal lathes, achieving near-perfect roundness

4.Easily and smoothly machine difficult-to-hold irregular workpieces with simplified fixture design

5.Near-square high-rigidity machine design minimizes thermal displacement and vibration effects

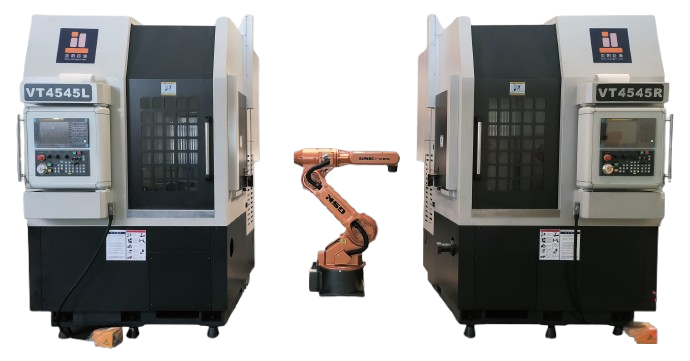

6.Ergonomic 3D assembly line design for easy workpiece handling

7.Occupies 1/2 less space than horizontal lathes

Technical Specifications

Item	Name		Unit	VLE50	VLE60	VLE80	VLE100
Capacity	3-Jaw Hydraulic Chuck		inch/mm	12/Ф 304	18/Ф 457	21/Ф 533 24/Ф 610	24/Ф 610
	Max Swing Diameter		mm	Ф 550	Ф 880	Ф 900	Ф 1100
	Max Turning Diameter		mm	Ф 510	Ф 650	Ф 850	Ф 1000
	Max Turning Height		mm	450	650	850	850/1000
	Max Workpiece Weight		kg	400	500	600	1000
Travel	X-Axis Travel (L/R)		mm	300	350	450	550
Travel	Z-Axis Travel (U/D)		mm	450	650	850	850
Spindle	Spindle Servo Motor Power		kw	18.5/22	22/26	22/26	30/37
	Spindle Speed		rpm	1600	1200	800	800
	Spindle Torque (Belt)		Nm	473	860	1289	1591
	Optional Spindle Gearbox	2-Speed		Auto 2-Speed	Auto 2-Speed	Auto 2-Speed	Auto 2-Speed
		Gear Ratio		1:4	1:4	1:4	1:4
		Max Spindle Torque	Nm	1512	2124	2750	2750
	Spindle Nose			A2-8	A2-11	A2-11	A2-11
	Spindle Bearing Diameter		mm	Ф 130	Ф 160	Ф 160/Ф 200	Ф 200/Ф 260
Feed	X-Axis Rapid Feed		m/min	20	20	20	15
Feed	Z-Axis Rapid Feed		m/min	18	18	18	15
Turret	Turret Type/Tool Count		Pcs	A: Horizontal/8-12 H: Vertical/4T,5T,6T AS: Servo Slotting M: Live Turret 12T	A: Horizontal/8-12 H: Vertical/4T,5T,6T AS: Servo Slotting M: Live Turret 12T	A: Horizontal/8-12 H: Vert/4T,5T,6T M: Live Turret 12T	A: Horizontal/8-12 H: Vertical/4T,5T,6T M: Live Turret 12T ATC Magazine 10T
Turret	Tool Size		mm	25×25 / Ф40	25×25 / Ф40	32×32 Ф50	32×32 Ф50
Control System & Motors	Control System			GSK GSK988TA
	Spindle Servo Motor		kw	18.5/22	22/26	22/26	30/37
	X-Axis Servo Motor		kw	3.8	3.8	4.6	4.7
	Z-Axis Servo Motor		kw	4.6	4.6	6.3	6
Others	Power Requirement		KVA	30	35	40	40
	Machine Dimensions (L×W×H)		m	1.4×2.8×2.5	1.6×3.5×2.6	2.0×3.6×3.2	2.6×3.8×3.26
	Machine Weight		kg	5600	7600	10000	15000
	Guarding+Chip Conveyor			Machine Guard+Chip Conveyor
	Machine Accuracy			Positioning: ±0.005 Repeatability: ±0.003

CNC Vertical Lathe

VLE50A---Horizontal Turret 12T

VLE60A---Horizontal Turret 12T

VLE80A---Horizontal Turret 12T

VTE100A--Horizontal Turret 12T

VLE50H---Vertical Turret 4T,5T,6T

VLE60H---Vertical Turret 4T,5T,6T

VLE80H---Vertical Turret 4T,5T,6T

VLE1000H-Vertical Turret 4T,5T,6T

VLE1000ATC 8T/10T

Vertical Turning Center

VLE50M--Live Turret BMT-12T

VLE60M--Live Turret BMT-12T

VLE80M--Live Turret BMT-12T

VLE100M--Live Turret BMT-12T

Turret Configuration

Horizontal Turret

Vertical Turret

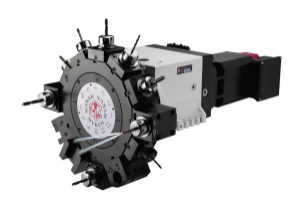

Power Turret BMT

Servo Slotting Tool

2-Speed Gearbox

No noise and heat transfer to spindle

No vibration transfer to spindle, ensuring cutting quality

Separate lubrication system for gearbox and spindle

High efficiency transmission --- over 95%

Gear shifting controlled by solenoid valve, automatic shifting

Spindle Servo Motor

The machine's main drive is powered by a wide-range spindle servo motor, featuring high torque output and excellent heavy cutting performance. Meets various cutting requirements of modern vertical lathes.

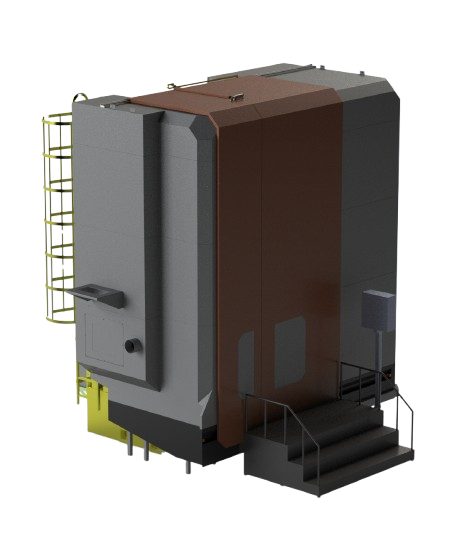

Full Guard Enclosure

Full guard enclosure (sealed top) provides comprehensive machining protection, ensuring operational safety.

Standard Configuration / Optional Configuration

Standard Configuration

• FANUC-0i-TF Plus

• IP5 Control Panel

• Spindle Servo Motor

• 3-Jaw Hydraulic Chuck

• Horizontal 12-Station Turret

• Hydraulic System

• Electrical Cabinet AC

• LED Work Light

• LED 3-Color Warning Light

• Japan THK/Taiwan Guide Rails

• Centralized Auto Lubrication

• Cutting Fluid Cooling

• Chip Conveyor + Cart

• External Guard

• Maintenance Tools

• Technical Documents

• Tool Box

Optional Configuration

• Siemens/GSK Control System

• H:4,5,6 Station Vertical Turret

• AS:Servo Slotting Tool

• ATC Tool Magazine 10T

• M:Power Turret BMT

• 2-Speed Spindle Gearbox

• Auto Door

• Oil-Water Separator

• Mist Collector

• Full Guard Enclosure

• Anti-Fog Viewing Window

• X/Z Axis Sliding Guides

• Tool Detection System

• Workpiece Measurement

• X/Z Axis Scales

• Spindle Motor Power Upgrade

• Center Tailstock

• Z-Axis Extension

• Column Height Extension

• Grinding Function

• Cooling System

• Paper Filter

Application Industries

1. Machinery: Flange, Gear Blank, Belt Pulley, Coupling, Motor Housing, Bearing Housing

2. Construction: Excavator Hub, Sprocket, Hydraulic Cylinder Bottom, Crusher Rotor, Wear Sleeve

3. Automotive & Rail: Hub, Brake Drum, Brake Disc, Flywheel, High-speed Brake Disc, Axle Flange, Railway Wheel

4. Energy (Wind/Hydro/Nuclear): Wind Flange, Impeller, Nuclear Seal Ring

5. Petrochemical: Connecting Rod, Wellhead Flange, Valve Body, Explosion-proof Motor Housing, Seal Sleeve

6. Aerospace: Hub, Turbine Disc Blank, Cabin, Carbon Fiber Flange/Sleeve

7. Mold Making: Plastic Mold Cavity, Bottle Mold, Tire Mold Ring, Die-cast Mold Core

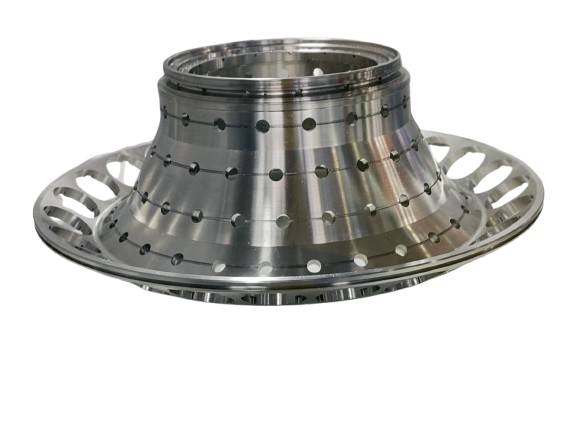

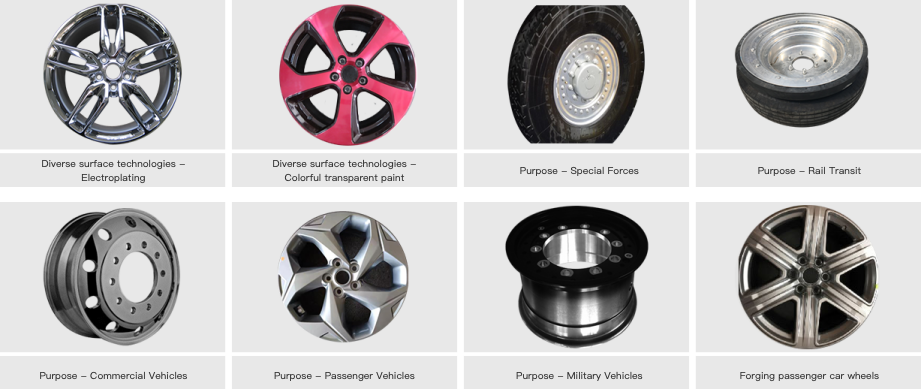

Hub

Hub

Hub

Hub

Brake Drum

Belt Pulley

Flywheel

Clutch Housing

Elevator Sheave

Sewing Part

Gear

Butterfly Valve

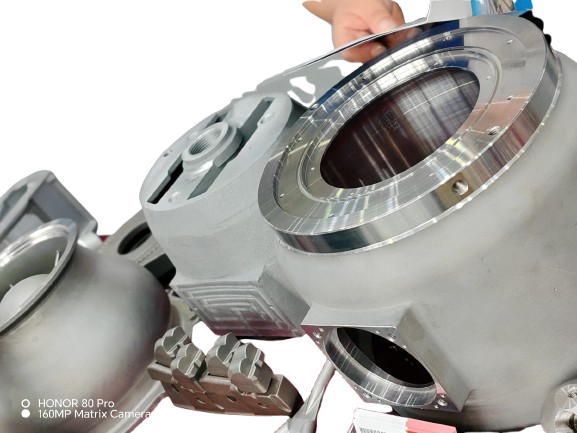

Gearbox Housing

Slewing Reducer

Drive Hub

Part

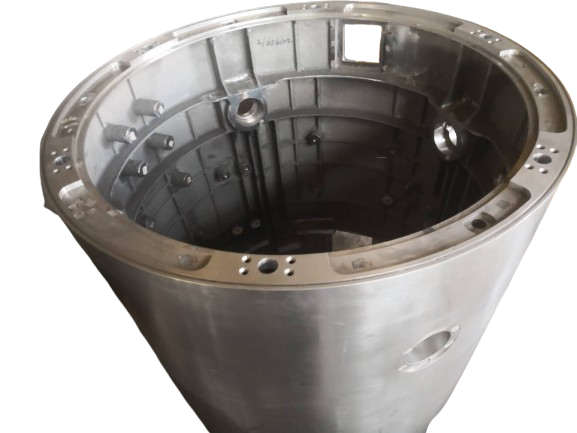

Turbine Housing

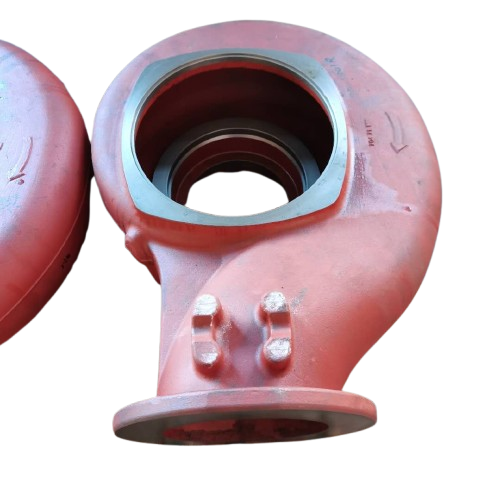

Volute

Bearing Ring

Bearing Housing

Cycloid Wheel

ZF Sun Shaft

ZF Planet Shaft

Flange Shaft

Wind Sprocket

Wind Pivot

Wind Carrier

Spline Sleeve

Titanium Part

Part

Aluminum Precision Part

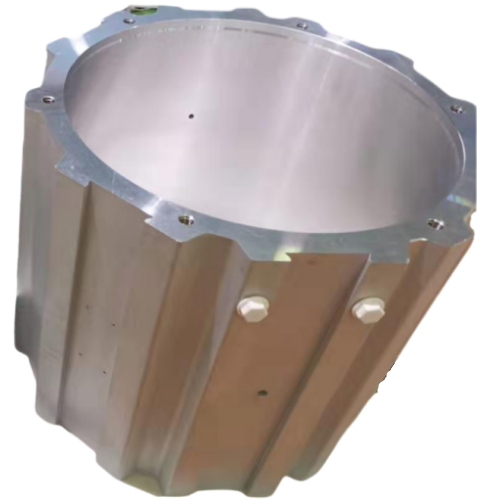

Cast Aluminum Part

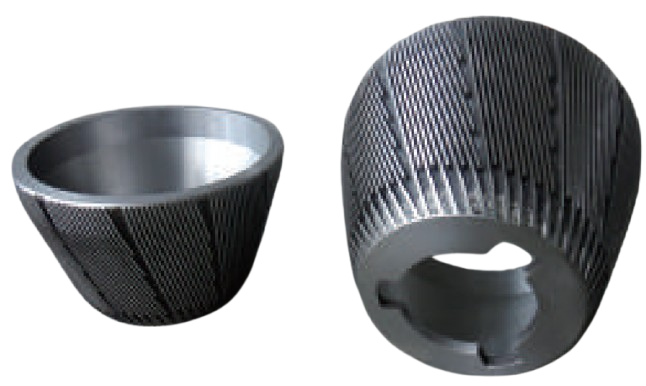

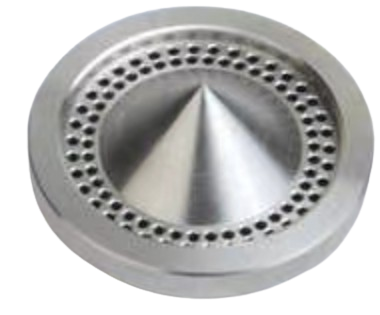

Pulp Disc

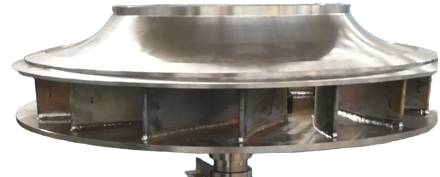

Integral Impeller
