Product Overview
Vertical 5-Axis Turning Center
5axis-VTM Series & VT+M Series, meeting the demands of complex 5-axis simultaneous machining

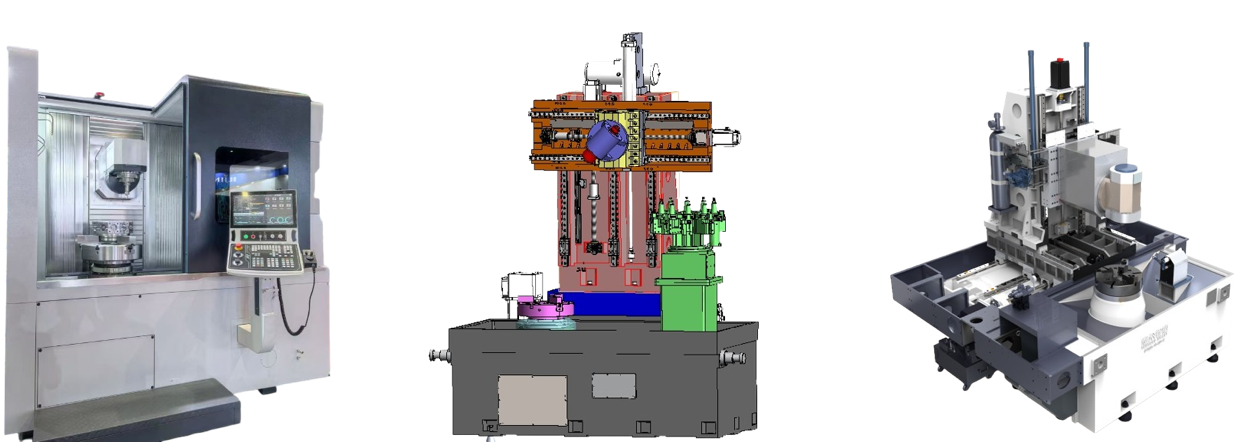

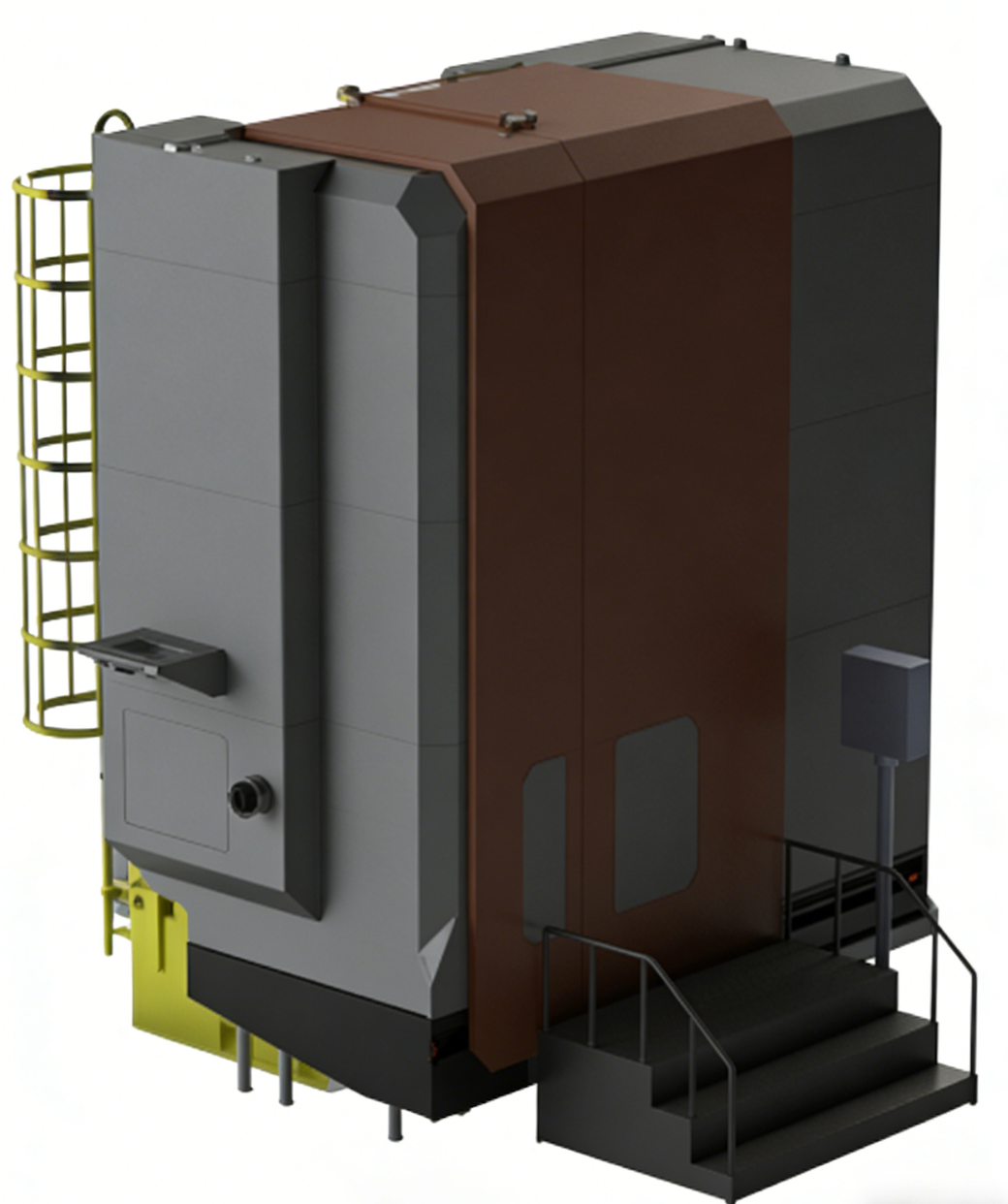

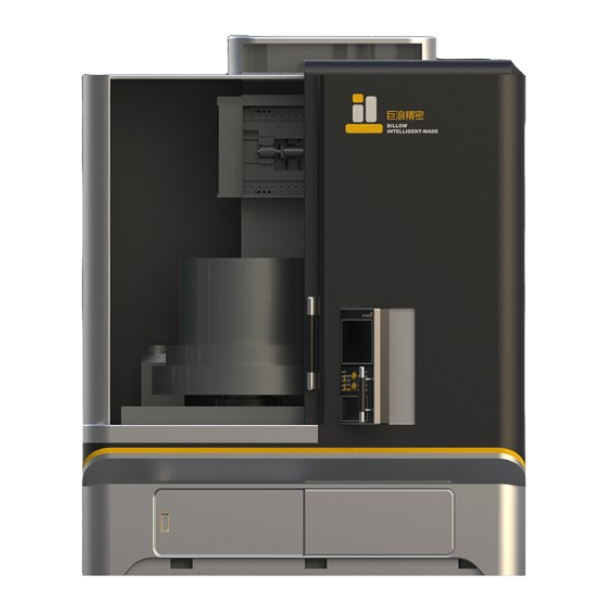

5axis-VTM
Vertical 5-Axis Turning Center
-
B-Axis Swivel Head + ATCEquipped with B-axis swivel head for 5-axis simultaneous machining, ATC automatic tool changer system improves processing efficiency
-
HSK T100 Tool InterfaceAdopts HSK T100 high-precision tool interface, ensuring rigidity and accuracy during high-speed machining
-
Built-in Motor DriveTool spindle uses built-in motor direct drive, max speed 6000rpm, rated power 33-42kW
-
C-Axis Precision IndexingWorkpiece spindle C-axis indexing accuracy 0.001°, meeting precision positioning requirements

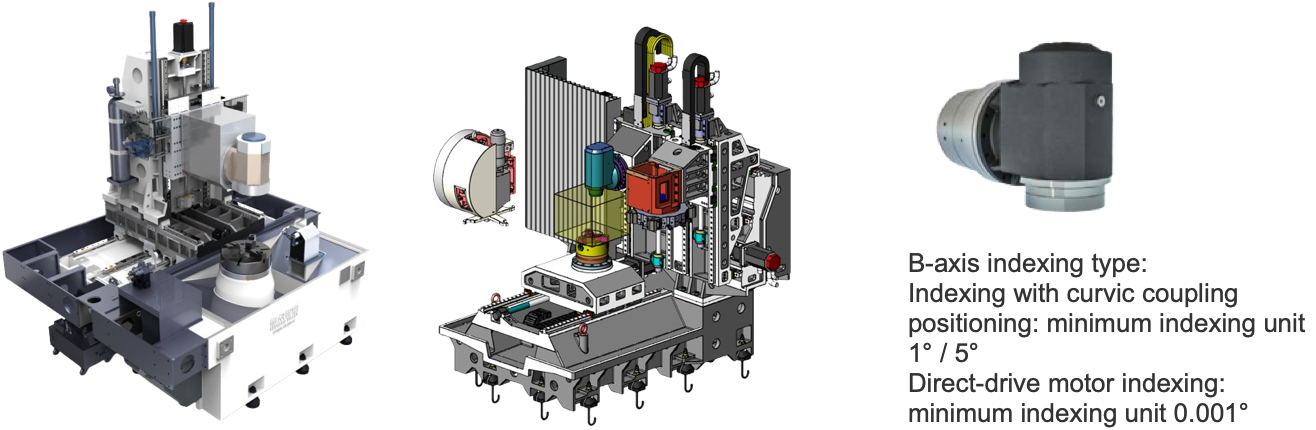

B-Axis Indexing Types
Hirth Coupling Indexing
Uses high-precision Hirth coupling positioning, minimum indexing unit 1° or 5°, suitable for heavy cutting applications with extremely high rigidity and positioning accuracy.
Built-in Torque Motor Indexing
Uses built-in torque motor direct drive, minimum indexing unit 0.001°, achieving high-precision 5-axis simultaneous machining, suitable for complex surface processing.
Specifications
Technical Specifications VTM Series
| Item | Specification | Unit | VTM80 | VTM120 |
|---|---|---|---|---|
| Machining Capacity | 3-Jaw Hydraulic Chuck | inch | 21 | 24 |
| Max Swing Diameter | mm | Φ950 | Φ1300 | |
| Max Cutting Diameter | mm | Φ850 | Φ1200 | |
| Max Cutting Height | mm | 700 | 850 | |
| Work Spindle | Spindle Servo Motor Power | kW | 28/42 | 39/48 |
| Spindle Speed | rpm | 1500 | 1000 | |
| Spindle Nose | - | A2-11 | A2-15 | |
| C-Axis Indexing | ° | 0.001° | 0.001° | |
| Tool Spindle | Tool Spindle Interface | - | HSK T100 | |
| Tool Spindle Drive | - | Built-in Motor | ||
| Max Speed | r/min | 6000 | 6000 | |
| Rated Power/Torque | kW/Nm | 33/284 | 42/330 | |
| B-Axis | Indexing Angle Range | deg | +120°~-120° | |
| Min Rotation Angle | deg | 1°/0.001° | ||
| Travel | X-Axis Travel (Left/Right) | mm | -200+800 | -300+1000 |
| Y-Axis Travel (Front/Back) | mm | -250+250 | -350+350 | |
| Z-Axis Travel (Up/Down) | mm | -220+880 | -220+1050 | |
| XYZ Rapid Feed | m/min | 24 | 24 | |
| Magazine | Tool Magazine Capacity | Pcs | 24/30 | |
| Tool Interface | - | capto c8/HSK 100 | ||
| Control System | CNC System | - | Siemens 828D | |
| Others | Power Requirement | KVA | 50 | 50 |
| Machine Dimensions (L×W×H) | m | 4.5×5.5×4.6 | 4.6×6.0×4.8 | |
| Machine Weight | Kg | 21000 | 26000 | |
VT+M Series
Vertical 5-Axis Turn-Mill VT+M Series
Adds milling function to the turning center, achieving turn-mill composite machining
| Item | Specification | Unit | VT+M80 | VT+M120 |
|---|---|---|---|---|
| Machining Capacity | 3-Jaw Hydraulic Chuck | inch | 21 | 24 |
| Max Swing Diameter | mm | Φ950 | Φ1300 | |
| Max Cutting Diameter | mm | Φ850 | Φ1200 | |
| Max Cutting Height | mm | 700 | 850 | |
| Work Spindle | Spindle Servo Motor Power | kW | 28/42 | 39/48 |
| Spindle Speed | rpm | 1500 | 1000 | |
| Spindle Nose | - | A2-11 | A2-15 | |
| C-Axis Indexing | ° | 0.001° | 0.001° | |
| Tool Spindle | Tool Spindle Interface | - | HSK T100 | |
| Tool Spindle Drive | - | Built-in Motor | ||
| Max Speed | r/min | 6000 | 6000 | |
| Rated Power/Torque | kW/Nm | 33/284 | 42/330 | |
| B-Axis | Indexing Angle Range | deg | +120°~-120° | |
| Min Rotation Angle | deg | 1°/0.001° | ||
| Travel | X-Axis Travel (Left/Right) | mm | -200+800 | -300+1000 |
| Y-Axis Travel (Front/Back) | mm | -250+250 | -350+350 | |
| Z-Axis Travel (Up/Down) | mm | -220+880 | -220+1050 | |
| XYZ Rapid Feed | m/min | 24 | 24 | |
| Magazine | Tool Magazine Capacity | Pcs | 24/30 | |
| Tool Interface | - | capto c8/HSK 100 | ||
| Control System | CNC System | - | Siemens 828D | |
| Others | Power Requirement | KVA | 50 | 50 |
| Machine Dimensions (L×W×H) | m | 4.5×5.5×4.6 | 4.6×6.0×4.8 | |
| Machine Weight | Kg | 16000 | 21000 | |
Configuration
Configuration List
Standard Configuration
- 1SINUMERIK 828D CNC System
- 2Multi-function Operating Panel
- 3External Handwheel
- 4Precision Work Spindle Unit A2-11 1500rpm
- 5Tool Spindle 6000rpm
- 624/30 Tool Magazine
- 7HSK T100 Tool Interface
- 8Hydraulic Control System
- 9Auto Lubrication for Guideways/Ball Screws
- 10Electrical Cabinet Air Conditioner
- 11Workpiece Coolant System (0.6MPA)
- 12Oil-Water Separator
- 13Chip Conveyor + Chip Cart
- 14Full Enclosure Guard
- 15LED Machine Light
- 16Three-Color Warning Light
- 17Safety Door Lock
- 18Tool Spindle Oil-Air Lubrication
- 19Internal Machine Flushing
- 20Internal Stainless Steel Secondary Guard
- 21Chuck Clamp/Foot Pedal Switch
- 22Tool Box
- 23Technical Documentation
- 24B-Axis Hirth Coupling Indexing, 1° unit
- 25Automatic Coordinate Conversion
Optional Configuration
- 1Hydraulic Chuck 10-21 inch
- 2Hydraulic Chuck Hard/Soft Jaws
- 3Hydraulic Chuck High/Low Pressure Switch
- 4Spindle Motor Power Upgrade
- 5Hydraulic Distributor
- 6X/Y/Z Axis Linear Scales
- 7Oil Mist Collector
- 8Spindle 2-Speed Gearbox
- 9Spindle Through Coolant 70KG
- 1040, 60 Tool Chain Magazine
- 11Scraper Chip Conveyor
- 12Tool Detection
- 13Workpiece Measurement
- 14Air Tightness Detection
- 15B-Axis Torque Motor Indexing, 0.001°
- 16Angle Head
- 17Gear Skiving Function
- 18Capto C8 Tool Interface

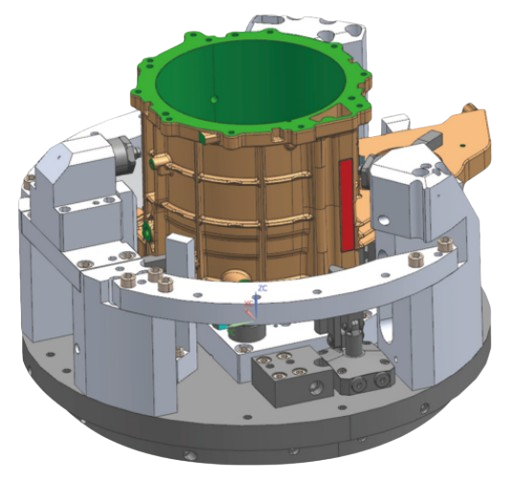

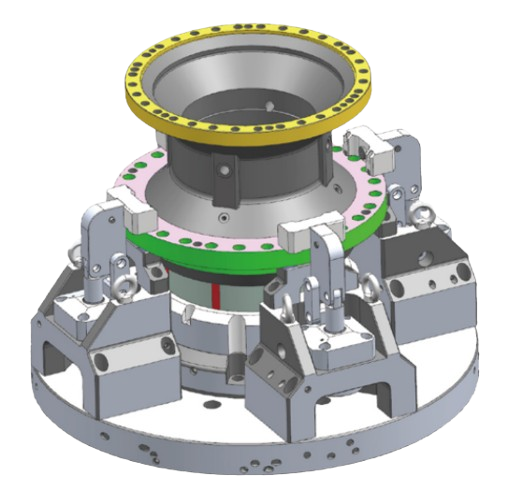

- 19Custom Fixture Design
Applications
Typical Application Industries
General Machinery: Flanges, Motor Housings, Bearing Blocks

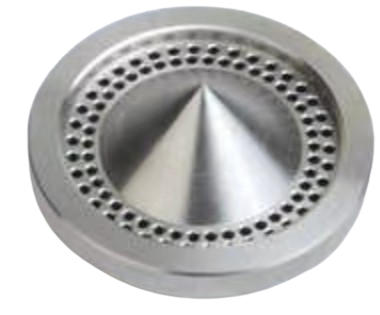

Titanium Alloy Part

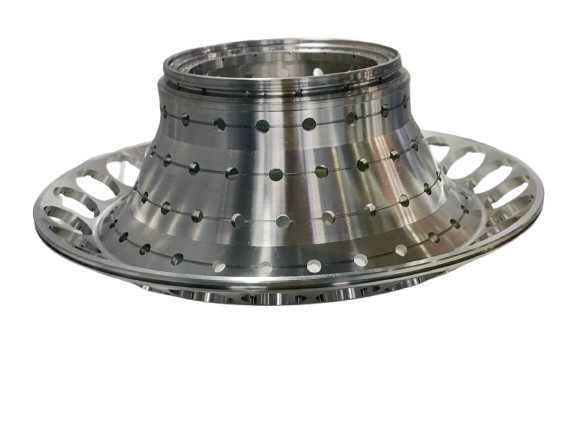

Titanium Ring
EV Motor Housing
Titanium Part

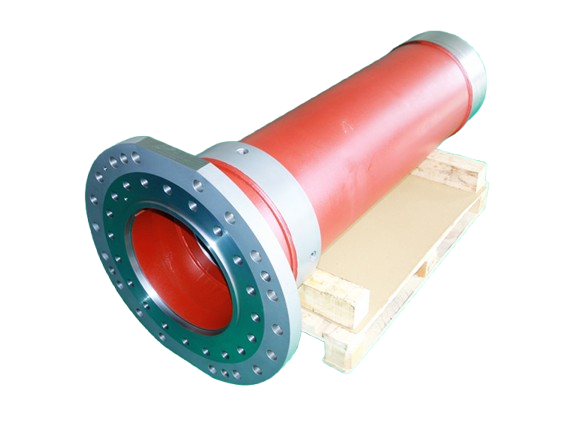

Flange

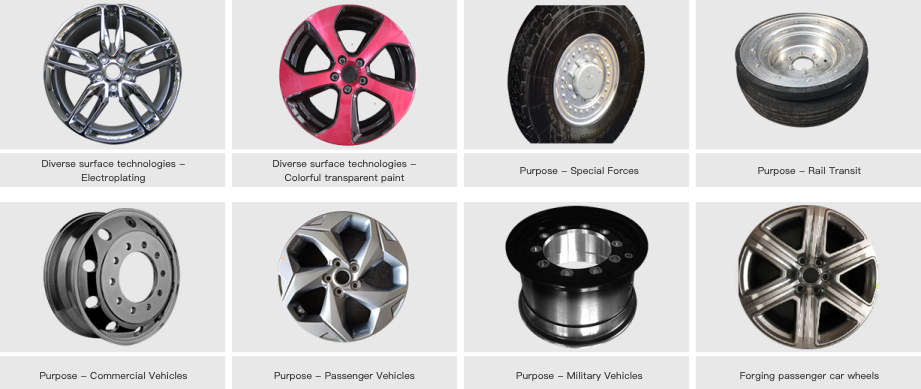

Automotive & Rail: Wheel Hubs, Aluminum Wheels, Brake Drums

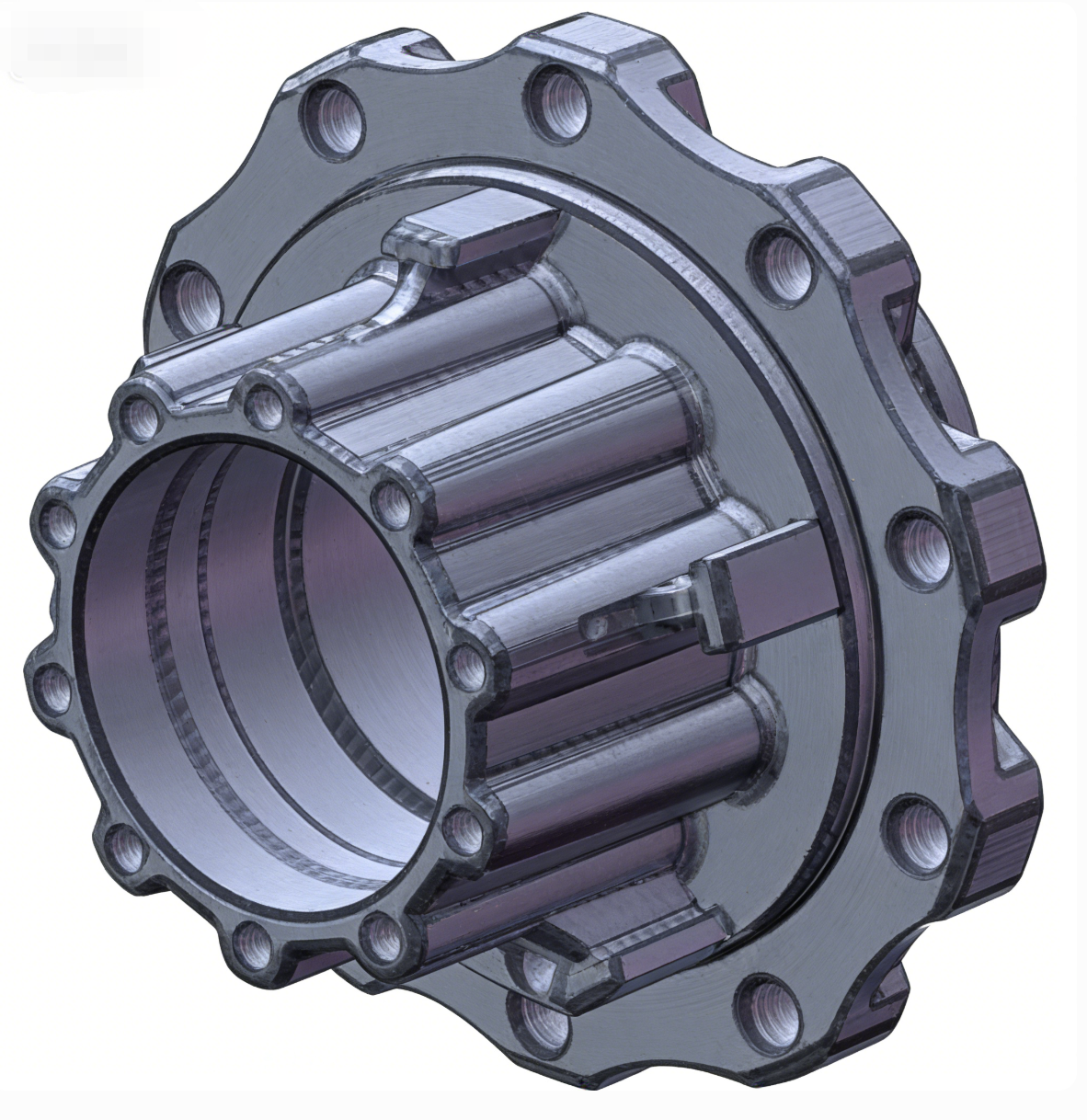

Hub
Brake Drum
Pump Body

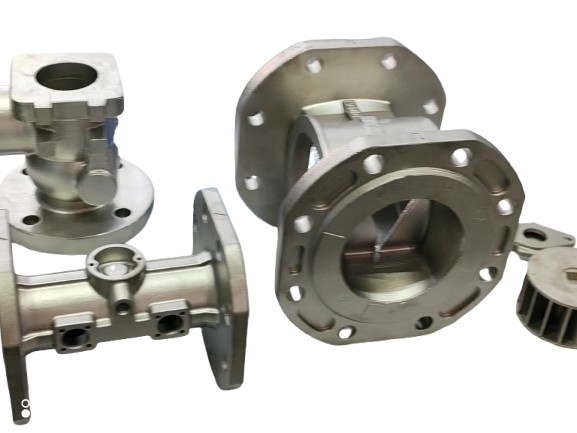

Stainless Valve

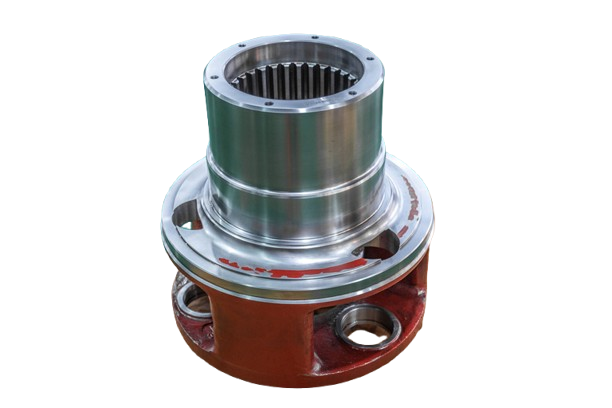

Wind Carrier
