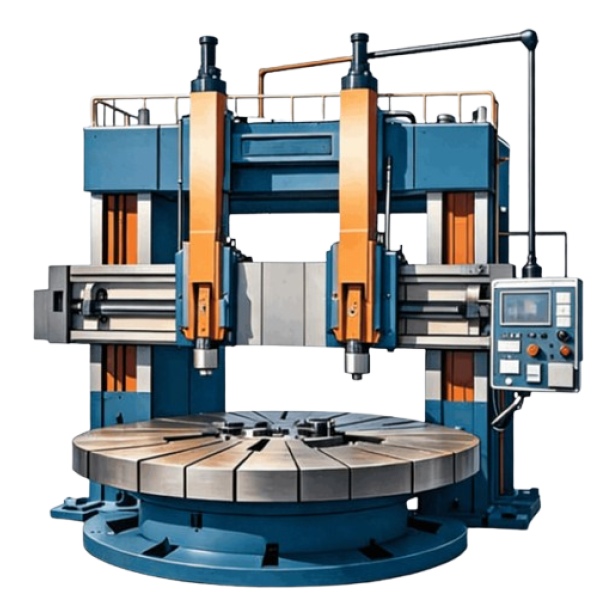

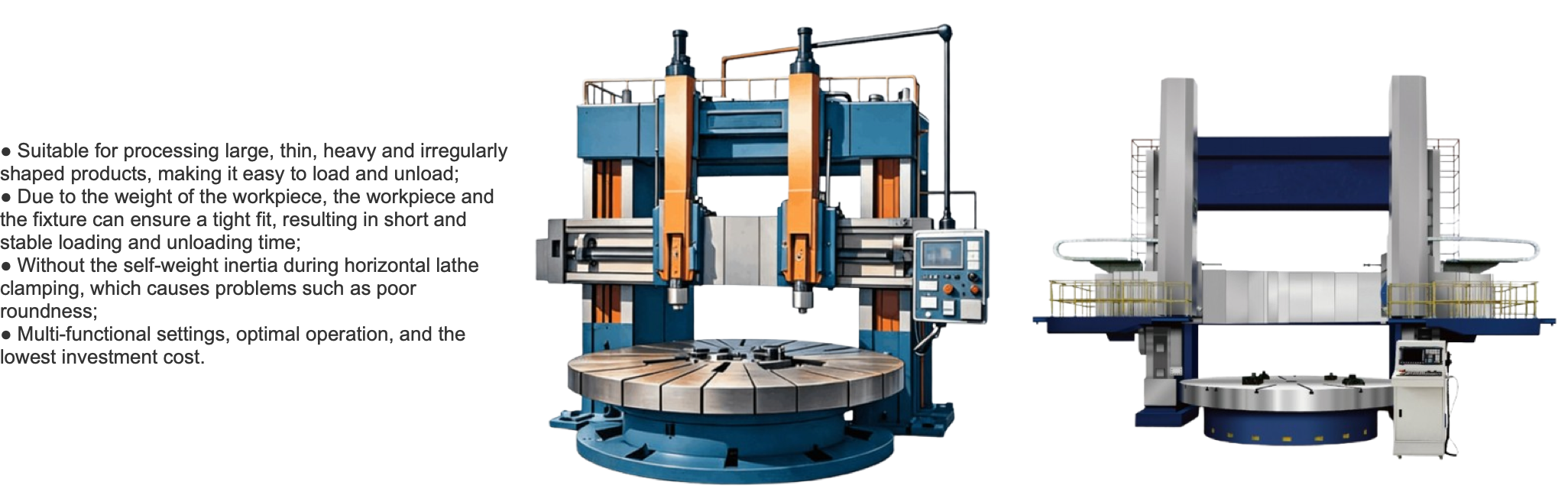

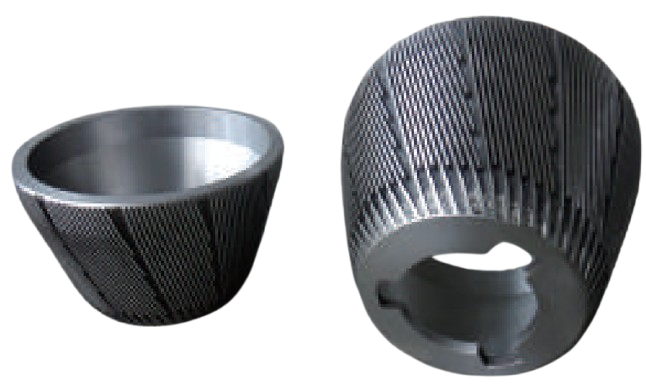

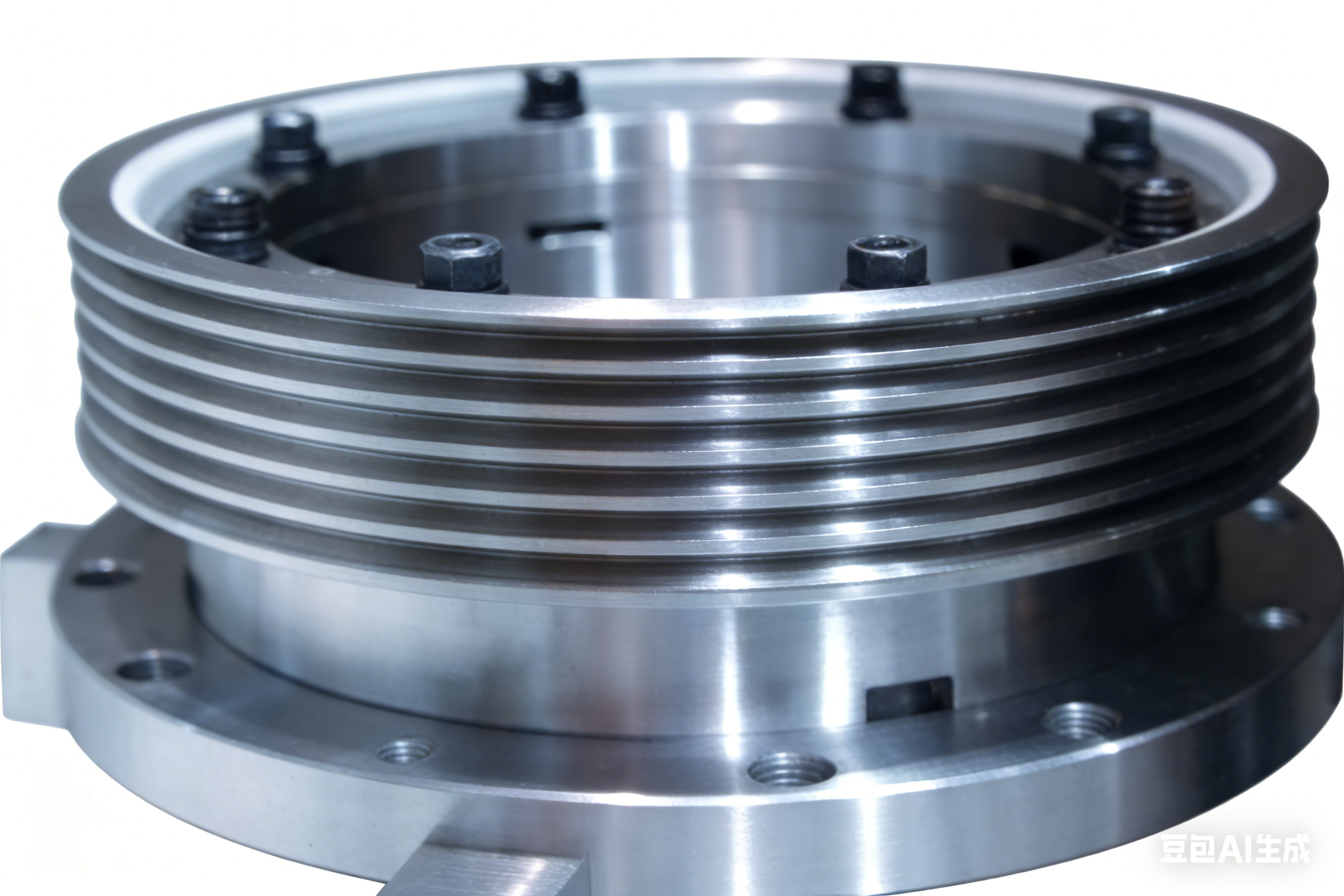

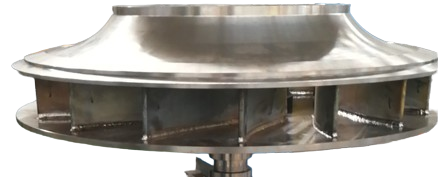

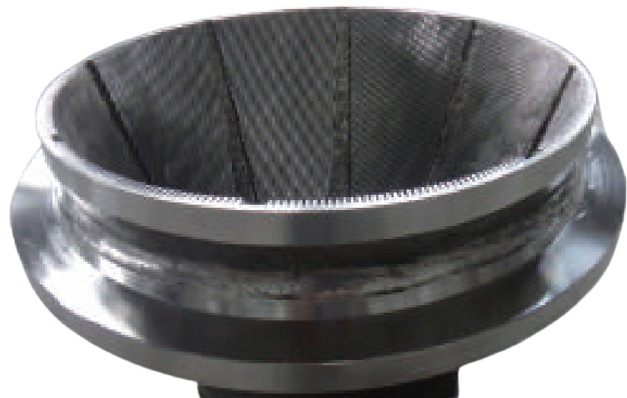

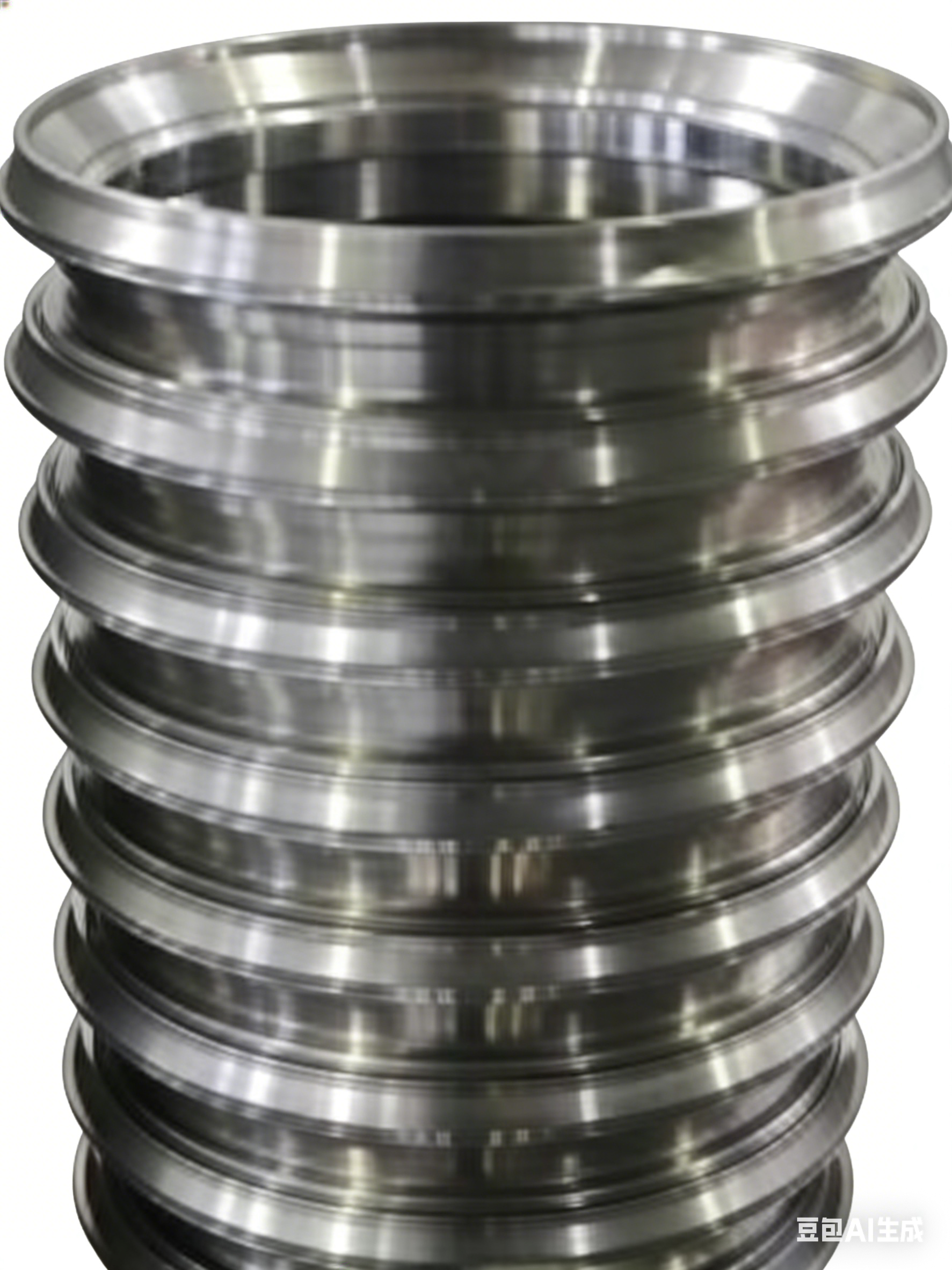

Gantry nc vertical lathe GTL2500 / GTL3000 / GTL4000/5000 / GTL6300 / GTL7000 / GTL GTL8000 / GTL 10000
{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
In Stock
Out Stock
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram
{{ variable.name }}
: {{ variable.values[selectedVariantsIndex[variable_index]].name }}
![]()
{{ value.name }}
Mechanical Specifications
| Machining Capacity |
Table diameter |
mm |
2250 |
2830 |
3200/3600 |
4000/5000 |
4500/5700 |
7200 |
8000 |
8500 |
| Max. turning diameter |
mm |
2500 |
3150 |
4000 |
5000 |
6300 |
8000 |
9000 |
10000 |
| Max. workpiece height |
mm |
1600/2000/2500 |
1600/2000/2500 |
1600/2000/3150 |
2000/3150 |
3200 |
3150/4000 |
3150/4000 |
4000 |
| Max. workpiece weight |
T |
10/20 |
10/20 |
20/32 |
65 |
65/80 |
80/120 |
100/120 |
200 |
| Travel |
X-axis travel (left/right) |
mm |
-20 +1400 |
-20 +1840 |
-20 +2150 |
-20 +2760 |
-20 +3415 |
-20 +4400 |
-20 +4700 |
-50 +5200 |
| Z-axis travel (up/down) |
mm |
1000/1250 |
1000/1250 |
1000/1250 |
1250/1600 |
1600/2000 |
1600/2000 |
1600/2000 |
2100 |
| Crossrail vertical travel |
mm |
800 |
800 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
| X, Z axis feed speed |
m/min |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| Table Spindle |
Spindle motor power |
kw |
55/75 |
55/75 |
75/110 |
90/132 |
90/132 |
110/160 |
110/160 |
160/210 |
| Spindle speed (4-step stepless) |
rpm |
2-63 |
2-63 |
2-63 |
0.4-40 |
0.4-32 |
0.4-20 |
0.4-20 |
1-20 |
| Max. spindle torque |
KNm |
63 |
63 |
80 |
100 |
100 |
500 |
500 |
600 |
| Tool Post |
Left/Right tool post cutting force |
KN |
L32/R32 |
L35/R35 |
L40/R40 |
L50/R50 |
L50/R70 |
L80/R100 |
L80/R100 |
L80/R120 |
| Ram cross-section |
mm |
240 x 240 |
240 x 240 |
240 x 240
260 x 260 |
240 x 240
260 x 260 |
280 x 280
300 x 300 |
280 x 280
300 x 300 |
280 x 280
300 x 300 |
320 x 320 |
| Tool shank section size |
mm |
40 x 50 |
40 x 50 |
40 x 50 |
50 x 50 |
50 x 50 |
60 x 60 |
60 x 60 |
60 x 60 |
| Others |
Power specification |
- |
380V±10% 50Hz±1% Three-phase AC |
380V±10% 50Hz±1% Three-phase AC |
| Power demand |
KVA |
100 |
100 |
140 |
160 |
160 |
180 |
180 |
230 |
| Machine dimensions (L x W) |
m |
5.4×4.7 |
6.0×4.5 |
6.9×5.1 |
10×7.0 |
12.5×7.5 |
14×13 |
16×13 |
16×13 |
| Machine weight (approx.) |
Kg |
32/34/38 |
36/40 |
48/50/52 |
81/84 |
120 |
180 |
200 |
400 |
Machine Configuration List
1. Standard Configuration
| 1 |
FANUC 0i-TF Plus |
6 |
Electrical cabinet air conditioner |
| 2 |
4 independent manual jaws (4 sets) |
7 |
Centralized automatic lubrication system |
| 3 |
Spindle 4-speed gearbox |
8 |
3-color warning light |
| 4 |
Double square ram tool post |
9 |
Technical documentation |
| 5 |
X, Z axis hardened slide guides |
10 |
Toolbox |
2. Optional Configuration
| 1 |
SIEMENS 828D Control System |
8 |
Grinding function |
| 2 |
GSK GSK988TA Control System |
9 |
Coolant cooling system |
| 3 |
4, 5, 6 station hydraulic servo turret |
10 |
Paper belt filter (for through-spindle coolant or grinding function) |
| 4 |
Spindle servo motor power upgrade |
11 |
Coolant workpiece cooling system |
| 5 |
Z-axis travel extension |
12 |
External guarding sheet metal |
| 6 |
Column riser block |
13 |
Chip conveyor + Chip cart |
| 7 |
Z-axis travel extension |
- |
- |
