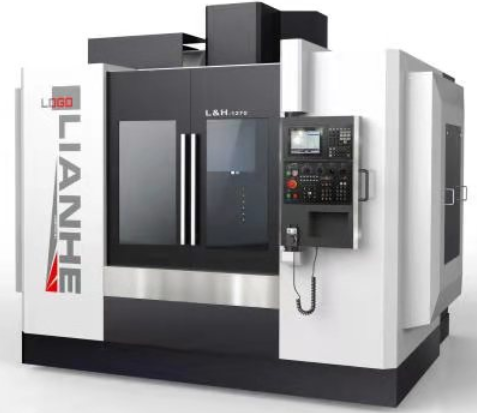

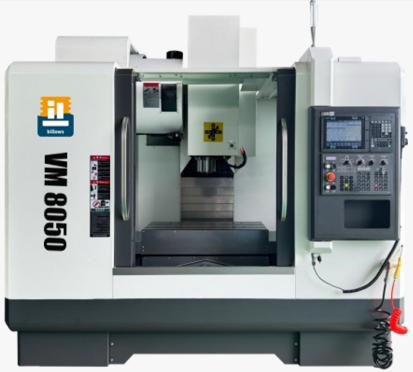

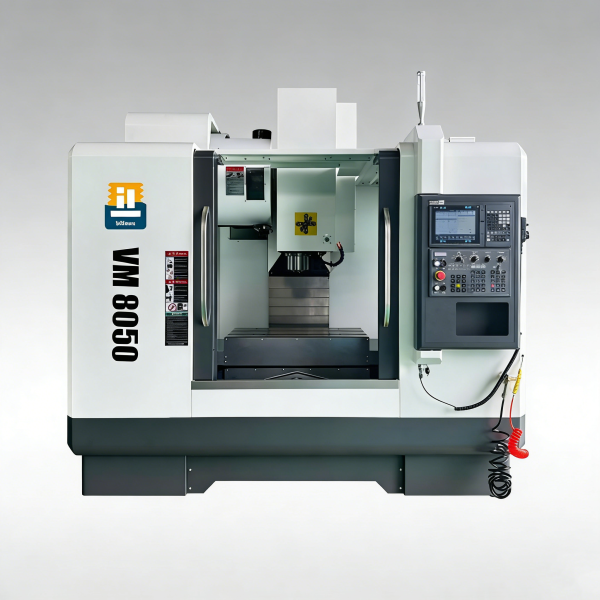

Features of High-Speed Vertical Machining Center
1. The machine structure is designed by Japanese professionals. The bed, column, saddle, worktable and spindle head adopt double rib plate structure, which improves the shock resistance of the machine, effectively enhances the overall rigidity, and ensures stable and vibration-free operation during high-speed machining, thus guaranteeing high rigidity and precision.
2. All castings are made of high-strength HT300A+ cast iron, treated with stress relief annealing to ensure stability and no deformation during long-term use. The castings are processed by Taiwanese and Japanese equipment, with separate rough and finish machining. The guideway surfaces are finely ground for stable precision.
3. The three axes adopt Taiwan C3-class precision ball screws. Each axis is supported by (3+2) TAC bearings with pre-tension design at the tail end, ensuring excellent transmission and positioning accuracy.
4. The three-axis linear guides adopt Taiwan roller linear guides with extended and widened sliders. X/Z axes are fixed with six sliders, increasing the stress area between guides and castings, enhancing rigidity and load capacity, ensuring high precision and heavy cutting performance.
5. Oil-water separation design is adopted during machining. Cutting fluid and lubricating oil are circulated separately to avoid chemical reactions on linear guides and screws caused by mixing, which affects precision and produces odors that pollute the workshop environment.
| Herringbone Column |

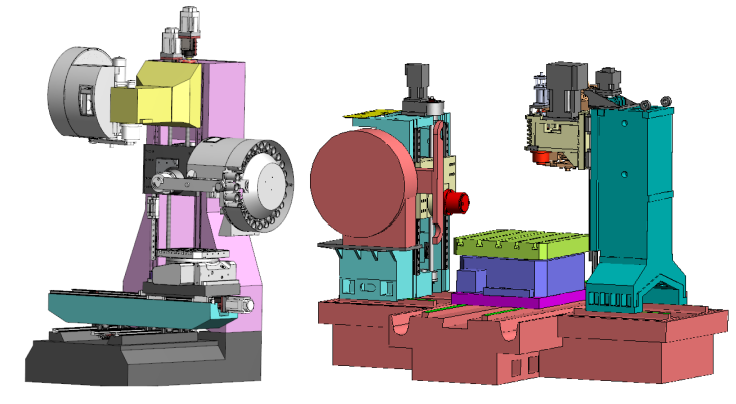

Bed, column, saddle, worktable and spindle head with double rib plate structure |

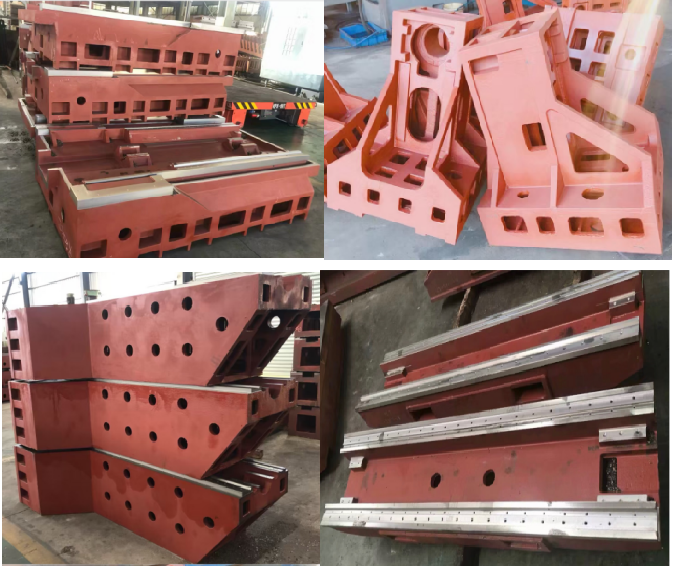

5 Major Castings: HT300A+ |
 |
 |
 |
