Shenyang Julang CNC Machine Tool Co., Ltd.

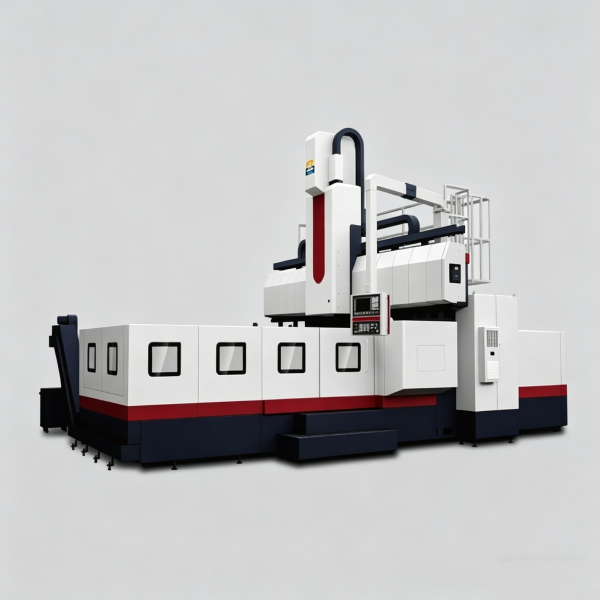

Gantry Machining Center

High Rigidity, High Speed, High Efficiency, High Torque, Anti-collision

The machine structure is professionally designed. The bed, column, beam, and worktable all adopt double-layer rib plate structure, which improves the anti-vibration performance of the machine and effectively enhances the overall rigidity and strength of the machine.

✓

High Rigidity

✓

High Precision

✓

High Efficiency

✓

High Torque

Core Product

Core Products

Gantry Machining Center

High rigidity, high speed, high efficiency, high torque, anti-collision.
1. High rigidity, high load capacity, symmetrical four-guide rail bed structure;
2. Square ram supports spindle up to 6000rpm;
3. Z-axis dual servo drive, capable of 5-face 5-axis machining with rich expansion functions;
4. Brand new machine anti-collision function.

Application industries: Widely used in complex parts processing in machine tools, construction machinery, marine diesel engines and steam turbines, locomotives, power machinery, mold manufacturing, mining and metallurgical machinery.

Features

Structural Features

NO.1

High Rigidity Gantry Frame

The beam adopts large well-shaped ribs and front wall rice-shaped ribs structure, large cross-section, column increases X-direction dimension, good rigidity.

NO.2

High Rigidity Bed

The bed adopts four-guide rail structure, small worktable overhang, good rigidity, more sliders, high load capacity. The worktable adopts screw drive, the screw is located at the center of gravity of the worktable, ensuring rigidity and symmetry.

NO.3

Z-axis Dual Servo Drive

Z-axis adopts dual servo motor and dual screw drive, achieving high dynamics of Z-axis transmission, high dynamic response during acceleration and deceleration, thus obtaining stable machining accuracy.

NO.4

High Rigidity Ram

The ram adopts 400×400mm square ram structure, four-sided constrained cast iron-plastic sliding guide rail pair, large contact area, can ensure rigidity during powerful cutting.

NO.5

High Speed

Maximum spindle speed up to 4500rpm, rapid traverse of each axis up to 15/15/10m/min, shorter auxiliary time, achieving high-speed and efficient machining.

NO.6

Comprehensive Thermal Optimization

Adopting imported high-rigidity spindle, power system thermal balance structure optimization design, equipped with constant temperature cooling system, multiple constant temperature protection, can inhibit high heat generation during long-term use; heat insulation device between ram and gearbox, reducing the influence of power system heat source on spindle and ram, improving machining accuracy. The whole machine adopts thermally symmetrical structure, minimizing the influence of thermal displacement on machine accuracy.

NO.7

Reliable Purchased Parts

Screws, reducers, linear guides, gears, spindles and other precision components all adopt well-known industry brands.

Specifications

Technical Parameters

VGM Series Parameters (I)

Item	内容	Unit	VGM1620	VGM630	VGM2020	VGM2030	VGM2530	VGM2550	VGM3040	VGM3050
Travel	X-axis Travel	mm	2000	3000	2000	3000	4000	5000	4000	5000
	Y-axis Travel	mm	1600	1600	2000	2000	2500	2500	3000	3000
	Z-axis Travel	mm	600	600	1000	1000	1000	1000	1000	1000
	Spindle Nose to Table Distance	mm	250～850	250～850	200-1200	200-1200	200-1200	200-1200	200-1200	200-1200
	Portal Width	mm	1600	1600	2000	2000	2580	2580	3080	3000
Table	Table Area	mm	1300×1600	1300×3000	2000×1600	3000×1600	4000×2000	5000×2000	4000×2500	5000×2500
	T-slot (Size×Qty)	mm	22×7	22×7	22×10	28×14	28×19	28×25	28×19	28×25
	Max Table Load	t	4	6	10	12	16	16	16	16
Spindle	Spindle Taper		BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
	Max Spindle Speed	rpm	6000	6000	6000	6000	6000	6000	6000	6000
	Motor Power (30min)	kw	18.5/22	18.5/22	18.5/22	18.5/22	18.5/22	22/26	22/26	22/26
Speed	Rapid Feed	m/min	12	12	10/12/10	10/12/10	10/10/8	10/10/8	10/10/8	10/10/8
	Cutting Speed	m/min	10	8	6	6	6	6	6	6
Guide Type	X, Y-axis		Roller Guide	Roller	Roller Guide	Roller Guide	Roller Guide	Roller Guide	Roller Guide	Roller Guide
	Z-axis		Hard Rail	Hard Rail	Hard Rail	Hard Rail	Hard Rail	Hard Rail	Hard Rail	Hard Rail
Tool Magazine	Auto Tool Changer, Qty	pcs	12-24	12-24	24-60	24-60	24-60	24-60	24-60	24-60
Accuracy	Positioning Accuracy	mm	0.02	0.02	0.02	0.02	0.02	0.02	0.02	0.02
	Repeatability Accuracy	mm	0.012	0.012	0.012	0.012	0.012	0.012	0.015	0.015
Machine Spec	Weight	T	19	28	26	31	33	38	40	45
	Dimensions	m	3.4×5.2×3.8	3.4×7.2×3.8	6.4×3.8×4.3	8.4×3.8×4.3	10×4.6×4.3	12.3×4.6×4.3	10×4.8×4.3	12.3×5.1×4.3

VGM Series Parameters (II)

Item	内容	Unit	VGM3650	VGM3660	VGM4060	VGM4085	VGM40100
Travel	X-axis Travel	mm	5000	6000	6000	8500	10000
	Y-axis Travel	mm	3000	3600	4000	4000	4000
	Z-axis Travel	mm	1000	1000	1250	1250	1250
	Spindle Nose to Table Distance	mm	200-1200	200-1200	400-1650	400-1650	400-1650
	Portal Width	mm	3600	3600	4000	4000	4000
Table	Table Area	mm	5000×2500	6000×2500	6000×3000	8500×3000	10000×3000
	T-slot (Size×Qty)	mm	28×12	28×12	28×24	28×30	28×40
	Max Table Load	t	16	20	25	30	35
Spindle	Spindle Taper		BT50	BT50	BT50	BT50	BT50
	Max Spindle Speed	rpm	6000	6000	6000	6000	6000
	Motor Power (30min)	kw	22/26	22/26	22/26	22/26	22/26
	Rapid Feed	m/min	8/12/10	8/12/10	8/12/10	8/8/10	8/8/10
Ball Screw Guide	Ball Screw Dia/Pitch	mm	8016×6312×5010		8016×8016×6312	10016×8016×6312
	X Guide Width×Rails×Sliders		55×3×26	55×3×30	65×4×28	65×4×36	65×4×48
	Y Guide Width×Rails×Sliders		55×2×4	55×2×4	65×2×4 55×1×2	65×2×4 55×1×2	65×2×4 55×1×2
	Z-axis		Hard Rail	Hard Rail	Hard Rail	Hard Rail	Hard Rail
Tool Magazine	Tool Qty	pcs	24-60	24-60	24-60	24-60	24-60
Accuracy	Positioning Accuracy	mm	0.02	0.02	0.02	0.02	0.02
	Repeatability Accuracy	mm	0.015	0.015	0.015	0.015	0.015
Machine Spec	Weight	T	50	60	85	95	105
	Dimensions	mm	12360×5100×4350	13500×5100×4350	15200×6650×4850	20200×6650×4850	24200×6650×4850

Options

High Performance Options

Tool Magazine

CNC Rotary Table

Head Magazine

Tool Measurement

Workpiece Measurement

Anti-collision

Control System

Oil Chiller

Attachments

Attachment Head Options

90° Manual Right-angle Head

Max Power 38kW
Max Torque 1000Nm
Max Speed 2000rpm

90° Auto Right-angle Head

Max Torque 1000Nm
Max Speed 3000rpm
Indexing Angle 2.5°

Extension Head

Max Power 38kW
Max Torque 1000Nm
Max Speed 2000rpm
Extension Length 500mm

90° Universal Head

Max Power 38kW
Max Torque 1000Nm
Max Speed 2000rpm
A/C Axis 2.5°

Electrical Configuration

System Components

MES

CAM Mold Machining

DNC Online Machining

Siemens Servo Drive System

USB Drive

Full-size CNC Keyboard

FD Drive

CF Card

I/O Module

Ethernet

Applications

Application Fields

Automotive Large Panels

Aerospace

Construction Machinery

Automation Equipment

New Energy Marine Wind Power

Precision Mold Rail Transit

Applicable workpieces: Large molds, machine tool beds, beams, large cover plates, etc.

Large Pump Body

Motor Housing

Construction Machinery

Aerospace Optical Platform

Aerospace Structural Parts

Train Side Frame

Train Bolster

Machine Tool Bed

Flow Measurement Pump Body

Automotive Titanium Alloy Lower Arm

Box Body

New Energy Vehicle Motor Housing

Rotary Valve Aluminum Alloy Body

Spindle Head Magazine
