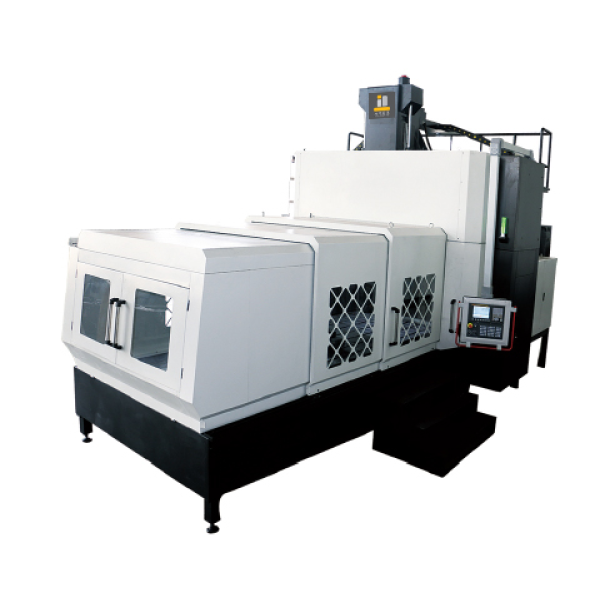

Product Showcase
Features
Gantry frame design with high rigidity and torque for ultra-large workpieces
Gantry Frame Design
Adopts gantry frame design, worktable positioned below the gantry, long X-axis stroke, strong load capacity
High Rigidity & Torque
High rigidity and torque for ultra-large workpieces, outstanding stability and torsional rigidity, suitable for heavy-duty machining
5-Axis Simultaneous Double Pivot Head
B-axis swing ±125°, C-axis swing ±360°, C/B axis indexing accuracy 0.001°, enabling large-area curved surface machining
Built-in Motorized Spindle
High-speed motorized spindle up to 18000rpm, spindle constant temperature system ensures stable machining accuracy
Large Stroke Coverage
X-axis up to 6000mm, Y-axis up to 3000mm, Z-axis up to 1500mm, meeting large workpiece machining requirements
Multiple CNC Systems
Supports Siemens, Syntec, Fagor, FANUC, GSK, HNC, Heidenhain and more
32-Tool ATC
32-tool manipulator tool magazine, HSK63A/BBT40 tool specifications, fast tool change and high efficiency
Full Closed-Loop Control
Standard 3-axis linear scales + A/C axis linear scales, high positioning and repeatability accuracy
机械规格表
| Category | Specification | Unit | VGU2022 | VGU2040 | VGU3060 |
|---|---|---|---|---|---|
| Stroke | X-axis Stroke | mm | 2200 | 4200 | 6000 |
| Y-axis Stroke | mm | 2000 | 2000 | 3000 | |
| Z-axis Stroke | mm | 1200 | 1200/1500 | 1200/1500 | |
| Spindle Center to Table Surface Distance | mm | 200～1400 | 200～1400 | 200～1400 | |
| Max Spindle Face to Table Surface Distance | mm | -60～+1140 | -60～+1140 | -100～+1100 | |
| B-axis Swing Angle | - | ±125° | ±125° | ±125° | |
| C-axis Swing Angle | ° | ±360° | ±360° | ±360° | |
| C/B Axis Indexing | - | 0.001° | 0.001° | 0.001° | |
| Spindle | Spindle Drive Type | - | Built-in Motorized Spindle | Built-in Motorized Spindle | Direct-drive Mechanical Spindle |
| Spindle Power | kW | 20/25 | 16/18.5 | 18.5/26 | |
| Spindle Speed | rpm | 18000 | 16000 | 12000 | |
| Output Torque | Nm | 30/38(30min) | 30/38(30min) | 54/72(30min) | |
| Spindle Taper | - | HSK63A | BBT40 | BBT40 | |
| Worktable | Worktable Size | mm | 2200×1500 | Φ650 | Φ800 |
| T-slot Size | - | 22T×5 | 22T×5 | 22T×5 | |
| Max Table Load | kg | 4000 | 4000 | 4000 | |
| Feed Rate | XYZ Rapid Feed | m/min | 30 | 30 | 30 |
| A/C Axis Rapid Speed | rpm | 16.6/25 | 16.6/25 | 16.6/25 | |
| Tool Magazine | Tool Specification | - | HSK63A | BBT-40 | BBT-40 |
| Tool Magazine Type | - | Manipulator Tool Magazine | Manipulator Tool Magazine | Manipulator Tool Magazine | |
| Tool Quantity | pcs | 32 | 32 | 32 | |
| Other | Machine Weight | kg | 26000 | 32000 | 48000 |
| Gantry Width | mm | 2000 | 2000 | 3000 |
CNC System Configuration
Machine Configuration List
| 01 | 3-axis Linear Scale | 10 | Spindle Cooler |
| 02 | A-axis Linear Scale | 11 | Spindle External Coolant Programmable Air Blow System |
| 03 | C-axis Linear Scale | 12 | Dual Auger + Hinge Belt Chip Conveyor + Chip Cart |
| 04 | LED Work Light | 13 | Machine Wash Water Gun |
| 05 | LED Warning Light | 14 | Machine Clean Air Gun |
| 06 | M30 Auto Power-off System | 15 | Half Enclosure Guard |
| 07 | Electrical Cabinet Air Conditioner | 16 | 32-tool ATC (HSK/BBT) |
| 08 | FANUC 0i-MF (4+1 Simultaneous) | 17 | XYZ Centralized Auto Lubrication System |
| 09 | Syntec 220MA-5 (5-axis Simultaneous) | 18 | Disc-type Oil-Water Separator |
| 01 | GSK 25iMc (5-axis Simultaneous) | 10 | Coolant Cooling System |
| 02 | HNC-848Di (5-axis Simultaneous) | 11 | Full Enclosure Guard |
| 03 | Siemens 840D (5-axis Simultaneous) | 12 | 24/40/60-tool Servo Chain Tool Magazine |
| 04 | Heidenhain TNC-640 (5-axis Simultaneous) | 13 | Workpiece Oil Mist Cooling System |
| 05 | Laser Tool Length Measurement System | 14 | Spindle Center Coolant System |
| 06 | Wireless Workpiece Measurement System | 15 | Built-in Motorized Spindle12000rpm |
| 07 | Door Safety Switch | 16 | XYZ Centralized Auto Grease Lubrication System |
| 08 | Auto Door | 17 | Oil Mist Collector |
| 09 | Rotating Window | 18 | Center Alignment Function |
Typical Application Industries
Aerospace / Military Industry
High-precision machining of spacecraft components, aircraft structural parts, engine blades, blisks, missile components, etc.
Precision Mold / Automotive Parts
Large wind turbine blade molds, automotive body panel molds, steering knuckles, sub-brackets, intake housings, etc.
Semiconductor / Medical / Marine
Semiconductor equipment components, medical material precision machining, marine structural components, rail transit equipment, etc.
