Product Details

Shenyang Billows Precision Machinery

CNC Boring & Milling

High Precision Machining Center

High torque, high efficiency, high rigidity, advanced CNC machine series

0.01mm

Positioning Accuracy

110kW

Spindle Power

Product Series

SIEMENS

CNC System

Product Series

Four Major Series

🔄

TK61 Series

CNC Horizontal Boring Mill

📐

TK65/68 Series

CNC Planer Type Boring Mill

🏭

TK69 Series

CNC Floor Type Boring Mill

⚙️

TKD65 Series

CNC Facing Boring Mill

Specifications

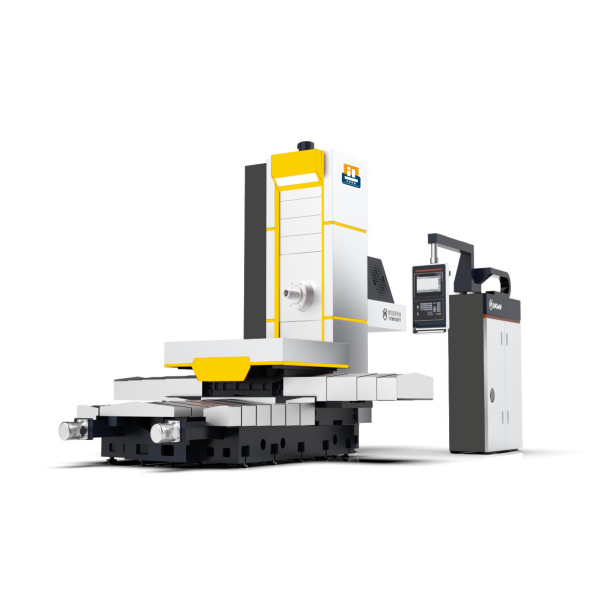

TK61 Series - CNC Horizontal Boring Mill

TK61 Series

TK61 CNC horizontal boring and milling machine is a high-torque, high-efficiency, high-rigidity, advanced-function machine tool. The main machine features a rotary worktable with cross-slide structure, consisting of several major components including the bed, worktable, upper and lower sliding saddles, column, side-mounted horizontal spindle box, and rear tailstock. According to user requirements, with different systems, different precision levels, and different rotary table sizes, different grades and specifications of machine tools can be formed. It is a universal machine tool with the widest range of applications, belonging to one of the most widely used machine tools. Its working performance is mainly boring and milling, and it can also perform drilling, reaming, plane milling, and other processes. It is particularly suitable for processing box-shaped parts with multi-hole systems and precise hole spacing requirements, frame-type parts, and mold parts. After the workpiece is clamped once, it automatically completes milling, boring, drilling, reaming, milling, and tapping processes. It can achieve six-axis control and four-axis linkage for circular interpolation and three-dimensional surface processing.

Parameter	TK6111	TK6113
Table Size (L×W) Table Size	1250×1400mm	1400×1600mm
Boring Spindle Dia Spindle Dia	Ф110mm	Ф130mm
X Axis TravelX Travel	1800-2000mm	1800-2000mm
Y Axis TravelY Travel	1200-1600mm	1600-2000mm
Z Axis TravelZ Travel	1200-1600mm	1200-2000mm
W Axis TravelW Travel	600mm	800mm
B Axis RotationB Travel	CNC RotaryCNC Control	CNC RotaryCNC Control
T-slot SizeT-slot	22mm Width × 125mm Pitch	22mm Width × 125mm Pitch
Max Table Load Table Load	5T	8T
CNC System CNC Controller	SIEMENS 828DorFANUC OI MF
Number of Axes Axes Quantity	XY/ZW(U) 4-Axis (5-Axis)	X/Y/Z/W(U) 4-Axis (5-Axis)
Spindle Taper Spindle taper	BT50(P50T-1)
Spindle Speed Range Spindle Speed	2-2000rpm	2-2000rpm
Spindle Power & Torque Main motor power δtarque	18kw(1300Nm)	30kw(2200Nm)
Max Boring/Drilling Dia Max.boring/drilling dia	Φ240mm/50mm	Ф300mm/80mm
Max Axial Feeding Force Max.axial feeding force on spindle	13000Nm	23000Nm
XY/Z Axis Rapid Traverse Rapd trverse	12000mm/min	12000mm/min
XY/Z Axis Feed Rate Range Feeding Speed	5-5000mm/min	5-5000mm/min
W Axis Feed Rate Range Feeding speed	0.5-5000mm/min	5-5000mm/min
W Axis Rapid Traverse Rapid traverse	5000mm/min	5000mm/min
Facing Head Radial Stroke Radial stroke of facing head tool holder	160mm	200mm
Facing Head Speed Facinghead speed	4-125rpm	2-125rpm
Max Machining Dia of Facing Head Tool Holder Max.machiningdia.of facing head tool holder	Ф630mm (Optional)	Ф800mm (Optional)
Max Facing Head Torque Max.permitted larque of facing head	1300Nm (Optional)	2600Nm (Optional)
Facing HeadFeed Rate Range Feeding speed of facing head	0.2-500mm/min (Optional)	0.2-500mm/min (Optional)
Radial Tool Holder of Facing HeadRapid Traverse Rapid traverse of facing head tool holder	1000mm/min (Optional)	1000mm/min (Optional)
XY/Z Axis Positioning Accuracy (Full Stroke) （GB/T17421.2-2000)Positianing accuravy	0.02/0.02/0.02mm	0.02/0.02/0.02mm
W Axis Positioning Accuracy (Full Stroke) (GB/T17421.2-2000) Positianing accuravy	--	0.025mm
B Axis Positioning AccuracyPositianing accuravy	8"
XY/ZW Axis Repeatability (Full Stroke)(GB/T17421.2-2000)Repeated accuracy	0.015/0.015/0.015/mm	0.015/0.015/0.015/0.015mm
B Axis RepeatabilityRepeated accuracy	6"
Machine Dimensions(L×W×H)Machine dimensian	6.3×3.9×3.7m	6.5×4.2×3.9m
Machine WeightMachine dimension	25T	32T

Specifications

TK65/68 Series - CNC Planer Type Boring Mill

TK65/68 Series

TK6511/13/16 CNC planer-type horizontal boring and milling machine is based on the TK6111/13 CNC horizontal boring and milling machine, with increased horizontal travel, increased worktable load capacity, increased spindle box vertical travel, increased worktable rotary diameter, increased worktable rotary load capacity, increased spindle motor power and torque, increased overall machine rigidity, and increased overall machine weight. With the addition of a rotary worktable, it becomes the TK6511/13/16 CNC planer-type horizontal boring and milling machine. Its working performance is mainly boring and milling, and it can also perform drilling, reaming, plane milling, and other processes. It is particularly suitable for processing box-shaped parts with multi-hole systems and precise hole spacing requirements, frame-type parts, and mold parts. After the workpiece is clamped once, it automatically completes milling, boring, drilling, reaming, milling, and tapping processes. It can achieve six-axis control and four-axis linkage for circular interpolation and three-dimensional surface processing.

Item			Unit	TK6511	TK6513	TK6516	TK6813	TK6816
Spindle Box	Spindle Dia		mm	Ф110	Ф130	Ф160	Ф130	Ф160
	Spindle Taper		ISO	50	50	50	50	50
	Spindle Speed Range		rpm	2-2000	2-2000	2-1500	2-1500	2-1000
	Milling Spindle End Size		mm	Ф221.44	Ф221.44	Ф250	Ф221.44	Ф250
	Ram Section Size		mm	-	-	-	380*420	450*450
	Table Size		mm	1200×1400 1400×1600	1400×1600 1600×1800 1800×2000	1400×1600 1600×1800 180×2000 2000×2500	1400×1600 1600×1800 1800×2000 2000×2500	1400×1600 、1600×1800 1800×2000 、2000×2500 2500×3000
	Max Table Load-OptionalAdjustable		kg	6000～20000	10000～30000	20000～50000	10000～40000	20000～60000
	Spindle Center to Table		mm	26	25	25	25	25
	Min Distance from Spindle End to Table Center		mm	0	0	0	0	0
	Min Distance from Spindle End to Table Center		mm	0	0	0	0	0
	Main Motor Power		kw	17/22	22/30	30/41	30/41	37/51
Working Range	Table Travel(X Axis》-OptionalAdjustable		mm	2000	2000	2500	3000	4000
	Y Axis Travel(Y Axis)-OptionalAdjustable		mm	1500	2000	2000	2000	2000
	Z Axis Travel(Z Axis)		mm	600	800	1000	700	1000
	W Axis Travel(W Axis)		mm	/	/	/	800	1000
	X Axis Travel(V Axis)		mm	1200	1500	1600	1600	2000
	B Axis RotationAngle		。	360	360	360	360	360
Feed Speed	Table Moving Speed(X)		mm/min	0.5-5000	0.5-6000	0.5~6000	0.5~6000	0.5-6000
	Spindle Box Vertical Moving Speed(Y)		mm/min	0.5~5000	0.5~6000	0.5~6000	0.5~6000	0.5~6000
	Spindle Moving Speed(Z)		mm/min	0.5~3000	0.5～4500	0.5～4500	0.5～4500	0.5～4500
	Ram Moving Speed(W)		mm/min	/	0.5～4500	0.5～4500	0.5～4500	0.5～4500
Tool Magazine （Optional）	Tool Magazine Capacity		pcs	40/60	40/60	40/60	40/60	40/60
	Max Tool Weight		Kg	25	25	25	40	40
	Max Tool Diameter	Full Tool Status	mm	Ф 125	Ф 125	Ф 125	Ф 125	Ф 125
	Max Tool Diameter	Adjacent Empty Tool Status	mm	Ф250	Ф250	Ф250	Ф250	Ф250
	Max Tool Length		mm	300	300	300	300	300
	Tool Change Time		Sec	15	15	15	15	15
CNC System	Siemens/FANUC/GSK

Specifications

TK69 Series - CNC Floor Type Boring Mill

TK69 Series

TK69 series CNC floor-type boring and milling machine is a high-torque, high-efficiency, high-rigidity, advanced-function machine tool developed independently based on the introduction of contemporary advanced floor-type boring and milling machine manufacturing technology. The Y and Z axes of this series of machine tools adopt plastic-coated hardened steel guide rail pairs, the X axis adopts rolling guide rail pairs, the spindle box adopts nitrided steel-hardened steel guide rail pairs, the spindle box internally adopts ram movement, the ram internally adopts boring spindle movement, the spindle box internal gears adopt hardened tooth surface grinding gears, the spindle adopts 2-stage or 3-stage gear transmission, the spindle motor adopts AC servo motor, the spindle box adopts hydraulic balance, and the spindle box adopts double-column guide rails.

Main Parameters

Machine Model	Boring Bar		Square Ram		Extended Stacked
	Diameter	Z Axis Extended	Size	W Axis Extended
TK6913	130	800	380×420	700	1500
TK6916E	160	1000	450×450	1000	2000
TK6916	160	1200	480×520	1200	2400
TK6920	200	1200	480×520	1200	2400
TK6926	260	1700	680×720	1700	3400

Detailed Specifications

Item			Unit	TK6913	TK6916	TK6916EUR	TK6920	TK6926	TK6920A
Spindle Box	Spindle Dia		mm	Ф130	Ф160	Ф160	Ф200	Ф260	Ф200
	Spindle Taper		ISO	50	50	50	60	60	60
	Spindle Speed Range		rpm	2～1500	2～1500/2000	2～1500	2～1200/2000	21～200	2～1200/2000
	Milling Spindle End Size		mm	Ф221.44	Ф250	Ф250	Ф320	Ф420	Ф320
	Ram Section Size		mm	380*420	480*520	450*450	480*520	680*720	480*520
	Main Motor Power		kw	37	55	55	81	110	81
Working Range	X Axis Travel(X Axis)		mm	4000+n×1000	6000+n×1000	6000+n×1000	6000+n×1000	5000+n×1000	6000+n×1000
	Y Axis Travel(Y Axis)		mm	2000-3500	3000-6000	3000-5000	3000-8000	4000-10000	3000-8000
	Z Axis Travel(Z Axis)		mm	800	1200	1000	1200	1700	1200
	W Axis Travel(W Axis)		mm	700	1200	1000	1200	1700	1200
	Spindle & Ram Stacked Travel		mm	1500	2400	2000	2400	3400	2400
Feed Speed	Column Moving Speed(×)		mm/min	1～6000	1～6000	1～6000	1～8000	1～6000	1～10000
	Spindle Box Vertical Moving Speed(Y)		mm/min	1～6000	1～6000	1～6000	1～8000	1～6000	1～10000
	Spindle Moving Speed(W)		mm/min	1～4000	1～4500	1～4500	1～6000	1～4500	1～7500
	Ram Moving Speed(Z)		mm/min	1～4000	1～4500	1～4500	1～6000	1～4500	1～7500
Tool Magazine （Optional）	Tool Magazine Capacity		pcs	40/60	40/60/80	40/60/80	40/60/80	40/60/80	40/60/80
	Max Tool Weight		Kg	25	25	25	25	25	25
	Max Tool Diameter	Full Tool Status	mm	Ф125	Ф125	Ф125	Ф125	Ф125	Ф125
	Max Tool Diameter	Adjacent Empty Tool Status	mm	Ф250	Ф250	Ф250	Ф250	Ф250	Ф250
	Max Tool Length		mm	600	600	600	600	600	600
	Tool Change Time		Sec	15	15	15	15	15	15
CNC System	Siemens/FANUC/GSK

Specifications

TKD65 Series - CNC Facing Boring Mill

TKD65 Series

TKD6513 CNC facing boring machine is based on the TK6513 CNC planer-type horizontal boring and milling machine, with an additional side-mounted spindle box to form a facing boring structure, which can simultaneously process two opposite faces of the workpiece, especially suitable for processing two symmetrical faces of box-type parts, greatly improving processing efficiency.

Name & Technical Requirements	Unit	CNC Facing Boring Mill TKD6513
Boring Spindle Dia	mm	φ130
Milling Spindle End Diameter	mm	φ221.44
Boring Spindle Taper		ISO 50(JT507:24)
Pull Stud Model		D50 DIN69872
Main Motor Power	Kw	30
Boring Spindle Speed	rpm	2-2000(Stepless)
Table Surface Size	mm	3000*4000
Table Standard Load	Kg	20000
Table HorizontalX Axis	mm	4200
Spindle Box VerticalY1, Y2 Axis	mn	2000
Boring Spindle AxialZ1, Z2 Axis	mm	800
Column Longitudinal TravelW1, W2 Axis	mm	1500
Distance Between Two Boring Spindles(Spindle Fully Extended)	mm	1400-4400
Distance Between Two Boring Spindles(Spindle Not Extended)	mm	3000-6000
Table T-slot Width	mm	28
Dual Axis Coaxiality	mm	0.05
Machining Ovality	mm	Less than0.01
Min Distance from Spindle Face to Table Center	mm	100(Spindle Extended)
Spindle Center to Table Surface	mm	100-2100(Adjustable)
Max Working Feed Speed
X Axis	mm/min	SteplesscanAdjustable，1-5000mm/min
Y Axis	mm/min	SteplesscanAdjustable，1-5000mm/min
Z Axis	mm/min	SteplesscanAdjustable，1-5000mm/min
W Axis	mm/min	SteplesscanAdjustable，1-4000mm/min
Max Rapid Moving Speed
X, Y1, Y2, Z1, Z2 Axis	mm/min	6000
W1, W2 Axis	mm/min	5000
Equipment Dimensions(L×W×H)	mm	12800×11800×4700
Total Electrical Capacity	KVA	70

Applications

Typical Applications

Energy Power Generation
(Thermal, Hydro, Wind, Nuclear)

Aerospace & Aviation
Shipbuilding

Construction Machinery
Machine Tool Beds

Metallurgy
Mining Machinery

Precision Molds
Rail Transit

Applicable Workpieces：Housings, cylinder blocks, valve bodies, pump bodies, reducer housings, etc.
