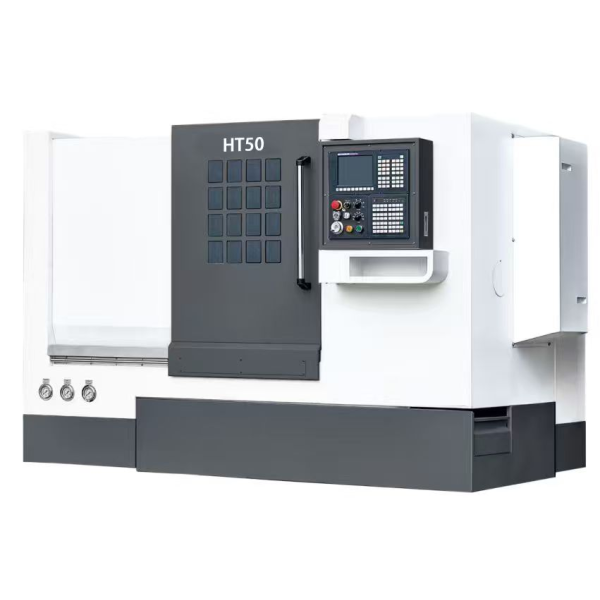

CNC horizontal lathe (inclined guide rail

Product Showcase

CNC Horizontal Lathe Product Series

Machine Types

Two Major Machine Series

I. CNC Horizontal Lathe (45° Slant Bed)

Standard slant bed CNC horizontal lathe featuring 45° integral side chip removal bed structure with high rigidity and precision. Suitable for efficient precision machining of disc and shaft parts. Main models include HT40, HTMY40, HT50, HTMY50 with maximum swing diameter Φ500-Φ600mm and maximum turning length 450-500mm.

II. CNC Horizontal Lathe (Heavy Duty 45° Slant Bed)

Heavy-duty slant bed CNC horizontal lathe designed for large disc and shaft parts machining. Features 45° integral side chip removal bed structure with high-power spindle motor and heavy-duty turret. Main models include HT60, HTMY60, HT65, HTMY65, HT80, HTMY80 with maximum swing diameter Φ600-Φ800mm and maximum turning length up to 3000mm.

Specifications

Standard Slant Bed Specifications (HT40/HT50 Series)

Item	Content	Unit	HT40	HTMY40	HT50	HTMY50
Machining Range	Max. Swing Diameter	mm	Φ500	Φ520	Φ570	Φ600
	Max. Turning Diameter (Disc/Shaft)	mm	Φ320/250	Φ250/200	Φ320/360	Φ400/380
	Max. Turning Length	mm	450	400	500	450
	Max. Bar Diameter	mm	Φ50	Φ45	Φ75	Φ52
Spindle Unit	Max. Spindle Speed	r/min	4000	5000	2000	4000
	Spindle Nose Type	type	A2-6	A2-5	A2-8	A2-6
	Spindle Through Hole	mm	Φ62	Φ56	Φ86	Φ62
	Main Motor Power	kw	7.5	7.5	11	11
Travel	Bed Structure	type	45° Integral Side Chip Removal		45° Integral Side Chip Removal
	X-axis Travel	mm	200	-	250	-
	Z-axis Travel	mm	500	-	550	-
	Y-axis Travel	mm	-	±35	-	±50
Turret	Turret Center Height/Tool Stations	mm	80-8T	BMT40Y-12T	100-8T	BMT45Y-12T
Tailstock	Tailstock Sleeve Diameter/Stroke	mm	Φ52/L60		Φ75/L80
Tailstock	Sleeve Taper	MT	No.4 Rotating Center		No.5 Rotating Center
Others	Total Power Capacity	KVA	20		25
Others	Total Weight	T	3		3.5

Specifications

Heavy Duty Slant Bed Specifications (HT60/HT65/HT80 Series)

Item	Content	Unit	HT60	HTMY60	HT65	HTMY65	HT80	HTMY80
Machining Range	Max. Swing Diameter	mm	Φ600	Φ640	Φ650	Φ800	Φ800	Φ800
	Max. Turning Diameter (Disc/Shaft)	mm	Φ450/360	Φ450/360	Φ600/480	Φ720/640	Φ700/640	Φ680/640
	Max. Turning Length	mm	650-3000		1000-3000		1000-3000
	Max. Bar Diameter	mm	Φ75	Φ52	Φ90	Φ75	Φ110	Φ90
Spindle Unit	Max. Spindle Speed	r/min	2500	4000	1200	2000	800	1200
	Spindle Nose Type	type	A2-8	A2-6	A2-11	A2-8	A2-15	A2-11
	Spindle Through Hole	mm	Φ86	Φ62	Φ112	Φ86	Φ132	Φ112
	Main Motor Power	kw	11	11	18.5	18.5	22	22
Travel	X-axis Travel	mm	260	260	400	-	400	400
	Z-axis Travel	mm	650-3050		1050-3050		1050-3050
	Y-axis Travel	mm	-	±50	-	±50	-	±60
Turret	Turret Center Height/Tool Stations	mm	100-8T	BMT45Y-12T	125-12T	BMT55Y-12T	160-8T	BMT65Y-12T
Others	Total Power Capacity	KVA	30		45		50
Others	Total Weight	T	4-10		8-15		9-16
