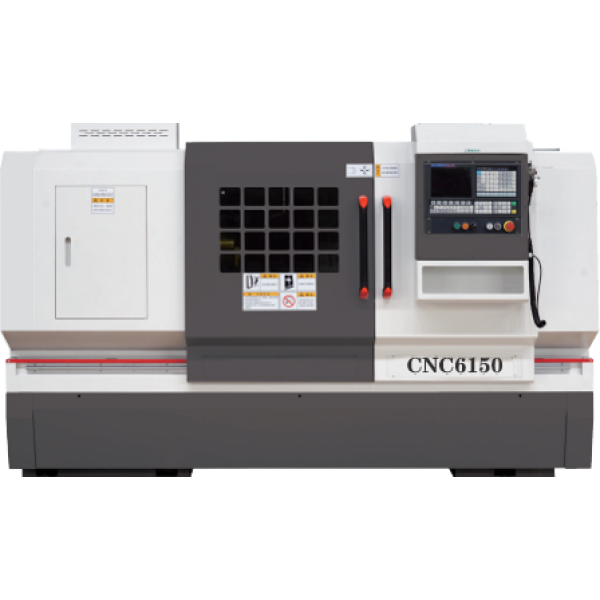

CNC horizontal lathe (flat guide rail)

Product Showcase

CNC Horizontal Lathe (Flat Guideway)

CNC6150 Structure Features

CNC6180 Structure Features

Specifications

Technical Specifications (I)

Model	UNIT	★ CNC6140	★ CNC6150	★ HCNC6163	CNC6180
Machining Range
Max Swing Over Bed	mm	Φ400	Φ500	Φ630	Φ820
Max Swing Over Carriage	mm	Φ200	Φ280	Φ340	Φ500
Turning Diameter (Shaft)	mm	Φ180	Φ260	Φ320	Φ500
Max Turning Diameter (Disc)	mm	Φ380	Φ480	Φ600	Φ800
Max Machining Length	mm	600/850/1350	850/1350/1850/2850	850/1350/1850/2850	850/1350/1850/2850
Distance Between Centers	mm	750/1000/1500	1000/1500/2000/3000	1000/1500/2000/3000	1000/1500/2000/3000
Spindle Unit
Max Spindle Speed	r/min	1-Stage VFD: 50-2000	3-Stage VFD: 65-210/195-620/510-1600	3-Stage VFD: 40-125/110-350/290-950	4-Stage VFD: 20-80/40-180/90-360/200-800
Spindle Nose Type	type	A2-6	A2-8	A2-11	A2-11
Spindle Bore Diameter	mm	Φ52	Φ82	Φ105	Φ112
3-Jaw Chuck Diameter	mm	Φ200 (8")	Φ250 (10")	Φ300 (12")	Φ400 (15")
Main Motor Power	kw	5.5 (Servo)	7.5 (Servo)	11 (Servo)	15 (Servo)
Travel
Bed Structure	type	One-Piece Bed	One-Piece Bed	One-Piece Bed	One-Piece Bed
X-Axis Travel	mm	240	260	350	500
Z-Axis Travel	mm	750/1000/1500	1000/1500/2000/3000	1000/1500/2000/3000	1000/1500/2000/3000
Tool Post
Tool Post Type	type	Vertical 4-Station Electric	Vertical 4-Station Electric	Vertical 4-Station Electric	Vertical 4-Station Electric
Tool Size	mm	□ 20×20	□ 25×25	□ 25×25	□ 32×32
Tailstock
Tailstock Sleeve Dia./Travel	mm	Φ65/130	Φ75/150	Φ75/L100	Φ120/250
Sleeve Bore Taper	MT NO	MT4	MT5	5	MT6
Others
Machining Accuracy	level	IT6	IT7	IT7	IT7
Repeat Positioning Accuracy X-Axis	mm	0.008	0.009	0.009	0.009
Repeat Positioning Accuracy Z-Axis		0.01/0.0012/0.18	0.011/0.018/0.018/0.023	0.011/0.018/0.018/0.023	0.011/0.018/0.018/0.023
Surface Roughness	um	Ra ≤ 1.6	Ra ≤ 1.6	Ra ≤ 1.6	Ra ≤ 1.6
Total Power Capacity	KVA	20	25	30	35
Dimensions (L×W×H)	m	2.5/2.75/3.32×1.5×1.65	2.8/3.1/3.7/5.0×1.6×1.7	3.2/3.7/4.2/5.2×1.85×1.8	3.3/3.8/4.3/5.3×2.0×2.0
Total Weight	Kg	1800/2100/2600	2500/2800/3300/5000	3800/4300/4800/5500	4500/5100/5700/6500

Specifications

Technical Specifications (II)

Model	UNIT	CNC61100	CNC61125	HCNC61140	CNC61150
Machining Range
Max Swing Over Bed	mm	Φ1000	Φ1250	Φ1400	Φ1500
Max Swing Over Carriage	mm	Φ630	Φ850	Φ1000	Φ1100
Turning Diameter (Shaft)	mm	Φ600	Φ800	Φ1000	Φ1100
Max Turning Diameter (Disc)	mm	Φ1000	Φ1250	Φ1400	Φ1500
Max Machining Length	mm	1350/1850/2850	1350/1850/2850	1350/1850/2850	1350/1850/2850
Distance Between Centers	mm	1500/2000/3000	1500/2000/3000	1500/2000/3000	1500/2000/3000/5000
Spindle Unit
Max Spindle Speed	r/min	4-Stage VFD: 30-84/53-150/125-350/300-835	4-Stage VFD: 30-84/53-150/125-350/300-835	8-Stage VFD: 30-84/53-150/125-350/300-835	8-Stage VFD: 30-84/53-150/125-350/300-835
Spindle Nose Type	type	A2-11	A2-11	A2-11	A2-11
Spindle Bore Diameter	mm	Φ105	Φ130	Φ130	Φ130
Manual Chuck Diameter	mm	3-Jaw Chuck Φ500	Single-Acting 8-Jaw Chuck	Single-Acting 8-Jaw Chuck	Single-Acting 8-Jaw Chuck
Servo Motor Power	kw	18.5	22	22	22
Travel
X-Axis Travel	mm	600	710	750	800
Z-Axis Travel	mm	1500/2000/3000	1500/2000/3000	1500/2000/3000	1500/2000/3000
Tool Post
Tool Post Type	type	Vertical 4-Station Electric	Vertical 4-Station Electric	Vertical 4-Station Electric	Vertical 4-Station Electric
Tool Size	mm	□ 32×32	□ 40×40	□ 40×40	□ 40×40
Tailstock
Tailstock Sleeve Dia./Travel	mm	Φ140/230	Φ140/250	Φ155/250	Φ155/250
Sleeve Bore Taper	MT NO	MT6	MT6	MT6	MT6
Others
Machining Accuracy	level	IT7	IT7	IT7	IT7
Repeat Positioning Accuracy X-Axis	mm	0.001	0.001	0.001	0.001
Repeat Positioning Accuracy Z-Axis		0.011/0.018/0.018/0.023	0.011/0.018/0.018/0.023	0.011/0.018/0.018/0.023	0.011/0.018/0.018/0.023
Surface Roughness	um	Ra ≤ 1.6	Ra ≤ 1.6	Ra ≤ 1.6	Ra ≤ 1.6
Total Power Capacity	KVA	40	50	50	50
Dimensions (L×W×H)	m	4.1/4.6/5.6×2.0×2.0	4.2/4.7/5.7×2.1×2.2	4.3/4.8/5.8×2.3×2.5	4.6/5.1/6.1×2.2×2.6
Total Weight	Kg	5500/6000/6900	7500/8000/9000	8000/9000/10500	8300/9500/1100

Configuration

Machine Configuration

Standard Configuration

GSK980TC3 CNC System
External Handwheel Unit
Spindle Servo Motor
Manual 3-Jaw Chuck
Vertical 4-Station Electric Tool Post
3-Speed Variable Frequency Drive
LED Work Light
LED Tri-Color Warning Light
Centralized Auto-Lubrication System
Cutting Fluid Cooling System
Manual Tailstock
Semi-Protective Guard
Maintenance Tools
Technical Documents
Tool Box

Optional Configuration

FANUC-i-TF plus CNC System
SIEMENS 828D Control System
Horizontal 6-Station Servo Hydraulic Turret
Hydraulic 3-Jaw Chuck
Hydraulic Tailstock
Oil-Water Separator
Chip Conveyor + Chip Cart
Steady Rest / Center Rest

Application Fields

Automotive Chassis

Automotive Parts Manufacturing

Engineering Machinery

Heavy Equipment Components

Aerospace

Aviation Industry

Petrochemical

Chemical Industry Equipment

Wind Power

Renewable Energy

★ Flow-Type Products — Widely used in marine shipping, medical equipment and other high-end manufacturing fields

Typical Applications

Typical Application Industries

Typical Application Industries:
1. General Machinery: Flanges, Gear Blanks, Belt Pulleys, Couplings, Motor End Caps, Bearing Rings
2. Automotive: Wheel Hubs, Aluminum Rims, Flywheels, Half Shafts
3. Energy Equipment (Wind/Hydro/Nuclear Power): Wind Flanges, Spindles, Gearbox Shafts, Nuclear Reactor Heads, Sealing Rings
4. Petrochemical & Explosion-Proof Equipment: Rod Joints, Wellhead Flanges, Valve Bodies, Explosion-Proof Motor End Caps, Sealing Shaft Sleeves
5. Aerospace & Lightweight Equipment: Engine Turbine Disc Forgings, Carbon Fiber Flanges/Shaft Sleeves
