Core Product Features
Easy Operation
Clear and intuitive interface, apprentices can operate like master technicians. Features core 5-axis CNC system, fully self-developed
High Efficiency
Nanosecond anti-electrolysis high-peak pulse power supply, actual processing can reach 200mm²/min
Smart Database
Developed "Intelligent Database" through tens of thousands of actual machining operations. Just input processing requirements
High Precision Option
Equipped with flat large-thrust linear motor and high-precision imported optical scales. Precision indicators remain stable long-term

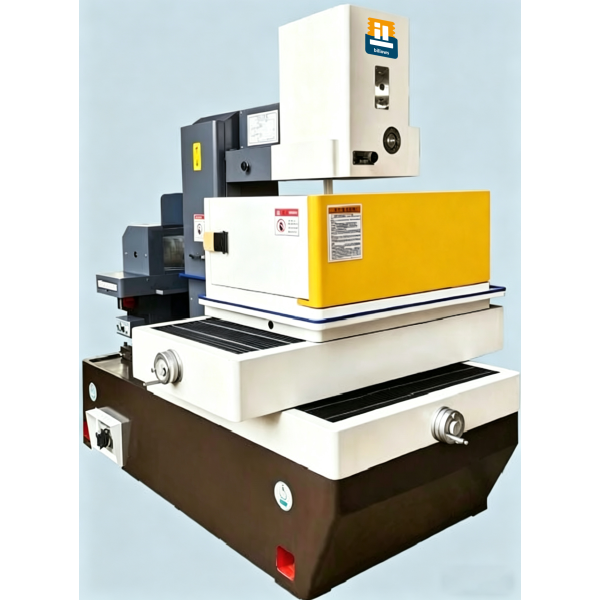

I. EDM - Medium-Speed Wire Cut Machines
Machine Complete
CNC System
Function
Features core technology 5-axis CNC system, fully self-developed
Intelligence
Optional intelligent database, developed through thousands of actual processing operations
Simple
Clear at a glance, apprentices can work like master craftsmen
Efficiency
Nanosecond anti-electrolysis large peak pulse power supply, actual processing can reach 200mm²/min
Auto Wire
Optional automatic wire threading function, greatly improves work efficiency
Specifications
| Model | DK2025 | DK2532 | DK3545 | DK4555 | DK5063 | DK6380 | DK80100 | DK1216 | DK1625 |
|---|---|---|---|---|---|---|---|---|---|
| Table Size | 350×500 | 400×500 | 500×600 | 600×800 | 800×1000 | 800×1200 | 1000×1300 | 1200×2200 | 1500×3100 |
| X-Axis Travel(mm) | 200 | 250 | 350 | 450 | 500 | 630 | 800 | 1200 | 1600 |
| Y-Axis Travel(mm) | 250 | 320 | 450 | 550 | 630 | 800 | 1000 | 1600 | 2500 |
| UV Axis Travel(mm) | / | 35×35 | 35×35 | 35×35 | 35×35 | 35×35 | 35×35 | 35×35 | 35×35 |
| Max Cutting Thickness(mm) | 200 | 300 | 500 | 500 | 600 | 600 | 800 | 500/800/1000 | 500/800/1000 |
| Standard Taper | ±3°/100 (Optional ±6°) | ±3°/100 (Optional ±6°) | |||||||
| Molybdenum Wire Diameter(mm) | 0.1-0.2 | ||||||||
| Multi-Cut Accuracy(mm) | ≤±0.003 (15×15 Hexagon,Cr12,S=40) | ≤±0.005 | |||||||
| Repeat Positioning Accuracy(mm) | ≤±0.002 | ≤±0.003 | |||||||
| Best Surface Roughness(μm) | Ra≤0.8 (Optional 0.4) | Ra≤0.8 (Optional 0.4) | |||||||
| Cutting Efficiency(mm²/min) | 200～350 | 200～350 | |||||||
| Max Load Capacity(kg) | 100 | 120 | 400 | 600 | 900 | 1200 | 2600 | 3000 | 4000 |
| Machine Weight(kg) | 800 | 1000 | 1200 | 1800 | 2300 | 2800 | 5000 | 8000 | 12000 |
II. EDM - Slow-Speed Wire Cut Machines
Easy Operation
Clear and intuitive interface, apprentices can operate like master technicians. Features core 5-axis CNC system, fully self-developed
High Efficiency
Nanosecond anti-electrolysis high-peak pulse power supply, actual processing can reach 200mm²/min
Smart Database
Developed "Intelligent Database" through tens of thousands of actual machining operations. Just input processing requirements
Options
Equipped with flat large-thrust linear motor and high-precision imported optical scales. Precision indicators remain stable long-term, no need for expensive replacement of machine screws and bearings
Specifications
| Parameter | MG400 | MG600 |
|---|---|---|
| Max Workpiece Size(mm) | 750×600×250 | 1080×740×250 |
| Max Workpiece Weight(kg) | 400 | 800 |
| XY Table Travel(mm) | 400×300 | 600×400 |
| Z Axis Travel(mm) | 260 | 300 |
| Auxiliary Axis Travel(U×V)(mm) | 100×100 | 100×100 |
| Max Taper(degree/mm) | ±20°/80 | ±20°/80 |
| Electrode Wire Diameter(mm) | 0.1～0.3 | 0.1～0.3 |
| Max Electrode Wire Weight(kg) | 15 | 15 |
| Machine Weight(kg) | 3100 | 4060 |
| Control System | Slow-Speed CNC System V1.3 | Slow-Speed CNC System V1.3 |
| Max Cutting Speed | Above 300mm²/min, 0.3mm brass wire, SKD11/60mm thick | Above 300mm²/min, 0.3mm brass wire, SKD11/60mm thick |
| Best Cutting Accuracy | ±2μm SKD11/20mm thick | ±2μm SKD11/20mm thick |
| Best Surface Roughness | 0.2μmRa Tungsten steel 20mm thick (with finishing power) | 0.2μmRa Tungsten steel 20mm thick (with finishing power) |
