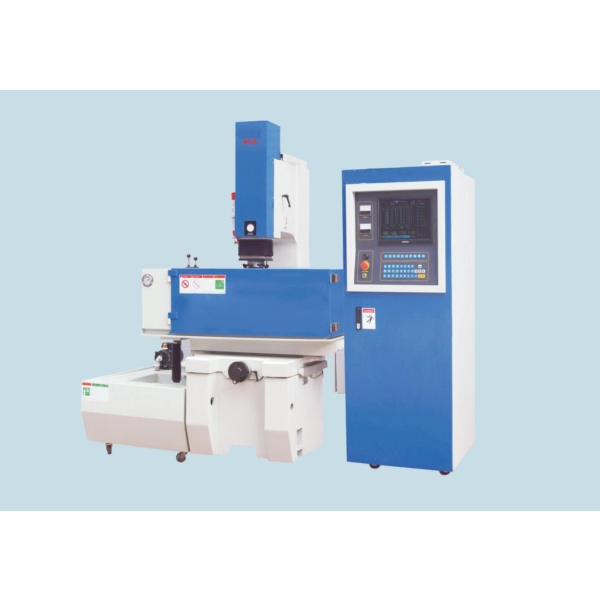

Product Characteristics
Product Features
Computer Programming Control System
Upper and lower special-shaped taper processing, dual-CPU structure, integrated programming and control, time-sharing programming during processing
Discharge status waveform display with automatic tracking
Real-time processing trajectory tracking display, 3D contour modeling of workpiece
Programming and control are all implemented through screen control using mouse only
International standard ISO code control
Specifications
Technical Parameters
| Item | ZNC320 | ZNC350 | ZNC430 | ZNC450 | ZNC540 | ZNC650 | ZNC760 |
|---|---|---|---|---|---|---|---|
| Mechanical Specifications | |||||||
| Worktable Size(mm) | 500x300 | 600x300 | 650×350 | 700×400 | 800×400 | 900×300 | 1000x600 |
| Left-Right Stroke(mm) | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
| Front-Rear Stroke(mm) | 200 | 250 | 300 | 350 | 400 | 500 | 600 |
| Spindle Stroke(mm) | 200 | 200 | 200 | 220 | 250 | 250 | 300 |
| Head Stroke(mm) | - | 180 | 200 | 250 | 260 | 250 | 300 |
| Max Distance Spindle to Worktable(mm) | 580 | 580 | 620 | 690 | 700 | 800 | 960 |
| Max Electrode Capacity(kg) | 50 | 60 | 80 | 80 | 100 | 120 | 200 |
| Machine Weight(kg) | 1200 | 1300 | 1500 | 1750 | 1850 | 2200 | 3650 |
| Filter Tank Capacity | 200L | 300L | 400L | 450L | 500L | 820L | 940L |
| Electrical Control Specifications | |||||||
| Control Method, Axes | Numerical Control Closed Loop, Single Axis (Z-axis) | ||||||
| XYZ Min Setting Size | 0.005mm(0.001mm) | ||||||
| XYZ Max Setting Size | 9999.995mm(9999.9999mm) | ||||||
| Coordinate System | Incremental(INC), Absolute(ABS) | ||||||
| Screen Display | 15"CRT, Color | ||||||
