Equipment Capability
Magnetic Levitation μ-Level Machining Center, Jig Grinder, Jig Borer
Granite Bed+XYZLinear Motor---Optimal performance combination
1、Linear Motor Drive
1）Linear motor structure design，with absolute optical scale，for optimal accuracy and long service life，backlash-free transmission、Wear-free。
2）零BacklashAbsolute high precision；Zero wear permanent accuracy life；
3）eliminatingScrew/Nut、Gear/Rack、BearingWear Parts，Will not produceRigidity Loss和Gear Backlash，High-speed Motion时，Can more precisely controlPosition Contour Accuracy。
2、Natural Granite Bed
1）Damping Performance比Cast Iron高10倍，High damping can improve accuracyImprove、Operating SpeedMaximized，therebyDemonstrateExtremely highDynamic Stability；
2）Shock Absorption比Cast Iron高10倍，Reducegenerated during high-speed acceleration/deceleration of the machine toolResonance，ImproveService life，Reduce了Manufacturing Cost；
3）Thermal Stability，Thermal Conductivitylower thanMetal Material，Minimal temperature influence，MeaningOverall StructureGeometric ErrorMinimized；
4）Unaffected by magnetic forces，Anti-interference Capability强；
| Machine Performance | Parameters |
|---|---|
| Positioning Accuracy | 0.002mm |
| Repeatability | 0.001mm |
| Machining Accuracy | ≤±0.003mm |
| Surface Roughness | Ra0.025um |
| Rapid Traverse Speed | 100m/min |
| Acceleration | ≥1.5G |
| Ultra-long Life | Non-contact Drive，Machine accuracy stability is extremely high |
| Super Precision | Backlash-free Drive |
Application Fields

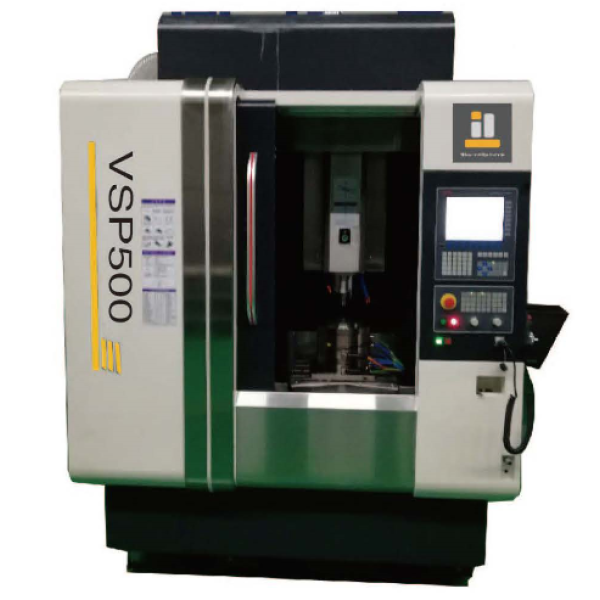

VSP500
Scroll Profile Precision Machining
5axis-VMU500
μ-Level 5-Axis Machining Center
VSG500
CNC Jig Grinder、Jig Borer
VSG3000
Moving Column High-Speed Machining Center
VSP500 / 5axis-VMU500 Application Fields
1、Aerospace Precision Machining
2、Scroll Profile Precision Machining
3、VR Reducer Precision Machining
4、3C Parts Machining, Phone Housings
5、Laptop Metal Housing
6、Graphite Arc Mold
7、3DGlass & Graphite Mold Precision
VSG500 / VSG3000 Application Fields
1、AerospaceMirror High-Gloss Grinding
2、Ultra-Precision Milling & Boring
3、Precision Machining of Slender Aerospace Parts
4、New Energy Vehicle Aluminum Machining
5、Carbon Fiber Composite Machining
6、Robotic Arm Slender Parts Machining
Machining Application Samples
Automotive Parts Machining (Mercedes Test Pieces)
Scroll Profile Precision Machining
Micro Scroll Compressor Core Components
Precision Machining of Aerospace Parts
Core Components of Hydrogen Fuel Cell Scroll Air Compressor
Graphite Arc Mold
5-Axis Machining Center
| Equipment Name | Model | Specification | Quantity | Brand |
|---|---|---|---|---|
| 5Shaft Machining Center | LU-620 | 500×450×450 Rotary TableΦ500mm 0.001° | 1 Unit(s) | Mazak Japan |
| 5Shaft Machining Center | LU-620 | 620×520×460 Rotary TableΦ630mm 0.001° | 1 Unit(s) | Leadwell Taiwan |
| 5Shaft Machining Center | 5axis-VMU500 | Φ500mm 0.001° XYZ:600×500×450 | 12 Unit(s) | Shenyang BILLOWS |
5-Axis Gantry Machining Center
| No. | Equipment Name | Model | Specification | Quantity | Brand |
|---|---|---|---|---|---|
| 1 | Gantry 5-Axis Machining Center | FIVE 2000 | 1500×2000×1200 | 1 | FOOKE Germany |
| 2 | Gantry 5-Axis Machining Center | CP2040 | 2000×4000×1400 | 1 | EDEL Germany |
Vertical Machining Center
| Equipment Name | Model | Specification | Quantity | Brand |
|---|---|---|---|---|
| Vertical Machining Center | BoVM6540 | 650×400×500 | 16 Unit(s) | Shenyang BILLOWS |
| Vertical Machining Center | BoVM8550 | 850×500×550 | 29 Unit(s) | Shenyang BILLOWS |
| Vertical Machining Center | BoVM1060 | 1000×600×600 | 13 Unit(s) | Shenyang BILLOWS |
| Vertical Machining Center | LV-1000A | 1000×500×540 | 4 Unit(s) | Leadwell Taiwan |
| Vertical Machining Center | LV-800A | 1000×500×540 | 4 Unit(s) | Leadwell Taiwan |
Horizontal Machining Center
HMC400/HMC500
800×600×600
CNC Gantry Boring & Milling Machine
CNC gantry boring & milling machine has boring, drilling, milling, slotting and other machining functions; with right-angle milling heads and other attachments, it can achieve five-sided machining, making it ideal equipment for large parts such as steam turbines, generators and heavy machinery in metallurgy, energy, power and other industries.
Mainly Applicable：
- Complex shapesMachining Accuracy高，Parts that cannot be processed by general machine tools or where quality is difficult to guarantee；
- During the machining process，Must performMulti-processmachining，such as must be completed in oneSetupcomplete milling in、镗、Countersinking & Reaming或Tappingand other processes；
- Difficult-to-measure、Difficult-to-control feed、Housings or box-type parts with difficult-to-control cavity dimensions。
| No. | Equipment Name | Model | Specification | Tool Magazine | Quantity | Brand |
|---|---|---|---|---|---|---|
| 1 | Gantry Machining Center | KMV-32P | 3200×2000×1000 | 40 Tools | 2 | KENT Taiwan |
| 2 | Gantry Machining Center | VGM1240 | 1200×4000 | 24 Tools | 2 | Shenyang BILLOWS |
| 3 | Gantry Machining Center | VGM2040 | 2000×3000 | 24 Tools | 4 | Shenyang BILLOWS |
CNC Vertical Lathe
CNC vertical lathe is used for machining heavy workpieces with large radial dimensions and relatively small axial dimensions, complex shapes. Such as cylindrical surfaces, end faces, conical surfaces, cylindrical holes, conical holes of various discs, wheels and short shaft workpieces. Additional devices can also be used for thread turning, spherical turning, profiling, milling and grinding. Compared with horizontal lathes, workpiece clamping on horizontal lathes is more difficult. The vertical lathe spindle axis is vertically arranged, and the worktable surface is in a horizontal plane, making workpiece clamping and alignment more convenient. This layout reduces the load on the spindle and bearings, allowing vertical lathes to maintain working accuracy for a longer time.
| Equipment Name | Model | Machining Diameter | Quantity | Brand |
|---|---|---|---|---|
| CNC Vertical Turning & Milling Center | VT8070 | Φ800 | 1 | Shenyang BILLOWS |
| CNC Vertical Lathe | VT6570 | Φ800 | 2 | Shenyang BILLOWS |
CNC Vertical Turning & Milling Center
Vertical turning & milling machine is large-scale equipment used for machining large and heavy workpieces with large radial dimensions and relatively small axial dimensions, complex shapes. Such as cylindrical surfaces, end faces, conical surfaces, cylindrical holes, conical holes of various discs, wheels and short shaft workpieces. Additional devices can also be used for thread turning, spherical turning, profiling, milling and grinding. Compared with horizontal lathes, workpiece clamping on horizontal lathes is more difficult. The vertical lathe spindle axis is vertically arranged, and the worktable surface is in a horizontal plane, making workpiece clamping and alignment more convenient. This layout reduces the load on the spindle and bearings, allowing vertical lathes to maintain working accuracy for a longer time.
| Equipment Name | Model | Machining Diameter | Quantity | Brand |
|---|---|---|---|---|
| CNC Vertical Lathe | VTL130ATC | Φ1600 | 1 | Shenyang BILLOWS |
| CNC Vertical Lathe | VT1600 | Φ1600 | 2 | Shenyang BILLOWS |
CNC Horizontal Lathe
| Equipment Name | Model | Machining Diameter | Quantity | Brand |
|---|---|---|---|---|
| CNC Horizontal Lathe | CNC800 | Φ800/1500 | 2 | Shenyang BILLOWS |
| CNC Horizontal Lathe | CNC500 | Φ500/1000 | 4 | Shenyang BILLOWS |
| CNC Horizontal Lathe | HT360 | Φ360/500 | 2 | Shenyang BILLOWS |
| CNC Horizontal Lathe | HT400 | Φ400/300 | 2 | Shenyang BILLOWS |
CNC Vertical Grinding Machine
| No. | Equipment Name | Model | Machining Diameter/Length | Quantity | Brand |
|---|---|---|---|---|---|
| 1 | CNC Composite Grinding Machine | VGS500 | Φ500/500 | 1 | Shenyang BILLOWS |
| 2 | CNC Cylindrical & Internal Grinder | VG300 | Φ300/200 | 1 | Shenyang BILLOWS |
Quality & Production Management
The company has a complete quality control system, equipped with comprehensive testing instruments and equipment to ensure stable and reliable product quality.
| No. | Equipment Name | Model | Specification | Quantity | Brand |
|---|---|---|---|---|---|
| 1 | CMM | Delta Slant Performance 305120 | 1500×1000×800 | 1 Unit(s) | Hexagon |
| 2 | CMM | 500×600×800 | 2 Unit(s) | Edward | |
| 3 | 3D Layout Machine | 1 Unit(s) |
Our Products
Titanium Products
Aluminum Products
Auto Parts
Steering Knuckle
Scroll Compressor Parts
Brake Discs, Wheel Hubs, Brake Drums, Differentials, Caliper Bodies, Motor Housings
Various Auto Parts
Industrial Machinery Parts
Application Fields
Aerospace
Engine、Gearboxes and Other Components
Automotive Manufacturing
Engine、Gearbox、Chassis Parts
Rail Transit
Train Parts Machining
MilitaryEquipment
Precision Weapon Structural Parts
EnergyPower
Steam Turbine、Generator Parts
